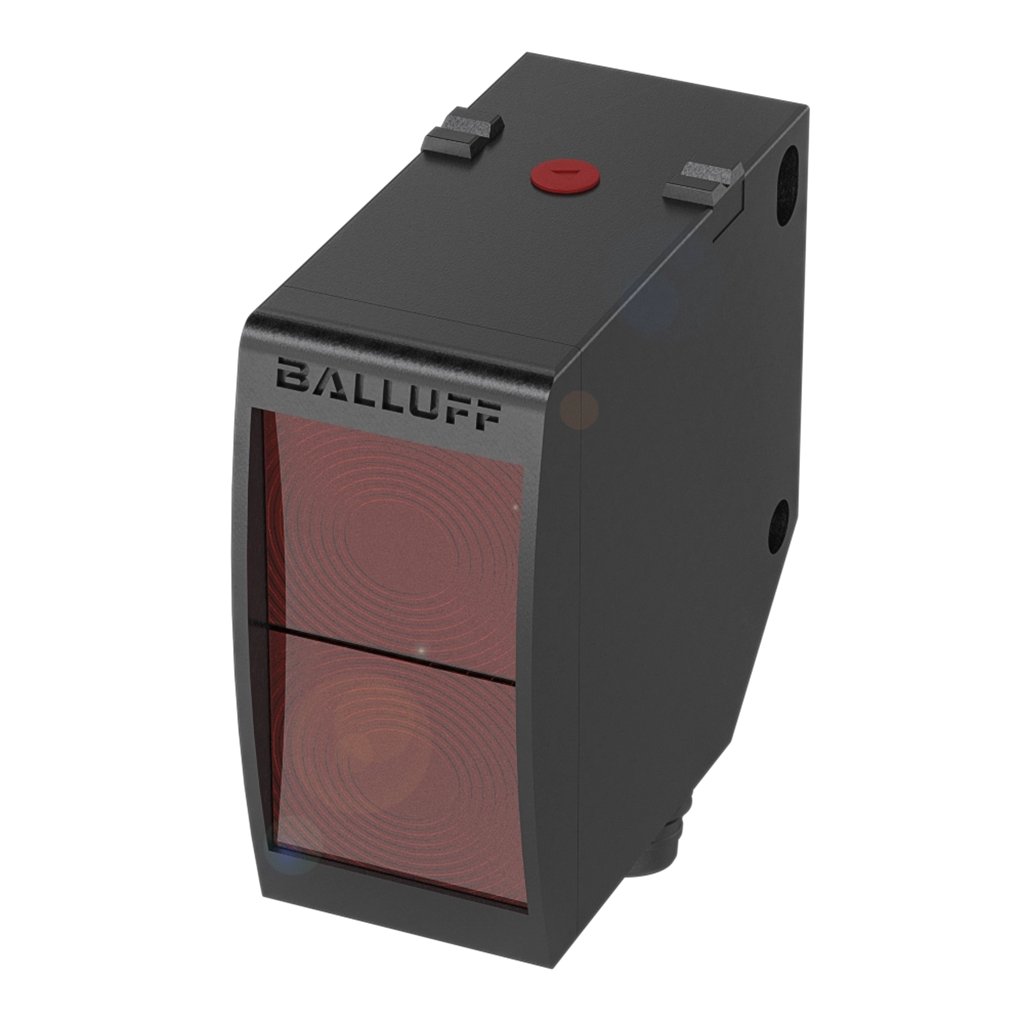

BOS 23K-GI-RR10-S4 BALLUFF - Part Number: BOS016T

Photo-electric sensor / switch with retro-reflective sensing + divergent LED beam - Balluff - model BOS 23K-GI-RR10-S4 - 0-12m (adjustable) sensing range - red LED beam light (640nm) - Pre-equipped with a 4-pin M12 male connector - 1 x digital output (PNP/NPN push-pull transistor; 100mA) (NO (Normally Open) or NC (Normally Closed) + light-ON / light-OFF setting operation) - Rectangular shape - 18-30Vdc (24Vdc nom.) supply voltage - Rated for -4...+140°F / -20...+60°C ambient - PC (polycarbonate) housing + ABS (Acrylonitrile Butadiene Styrene) housing + PMMA (Acrylic) sensing surface - 600Hz max. switching frequency - Surface with through-holes (M4 screw) mounting - with IO-Link communication capability - ECOLAB compliant - equivalent to BOS23KGIRR10S4 Photo-electric sensor / switch with retro-reflective sensing + divergent LED beam - Balluff - model BOS 23K-GI-RR10-S4 - 0-12m (adjustable) sensing range - red LED beam light (640nm) - Pre-equipped with a 4-pin M12 male connector - 1 x digital output (PNP/NPN push-pull transistor; 100mA) (NO (Normally Open) or NC (Normally Closed) + light-ON / light-OFF setting operation) - Rectangular shape - 18-30Vdc (24Vdc nom.) supply voltage - Rated for -4...+140°F / -20...+60°C ambient - PC (polycarbonate) housing + ABS (Acrylonitrile Butadiene Styrene) housing + PMMA (Acrylic) sensing surface - 600Hz max. switching frequency - Surface with through-holes (M4 screw) mounting - with IO-Link communication capability - ECOLAB compliant - equivalent to BOS23KGIRR10S4
