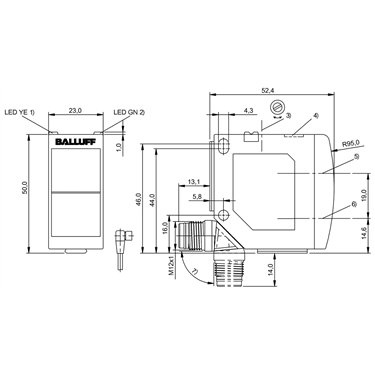

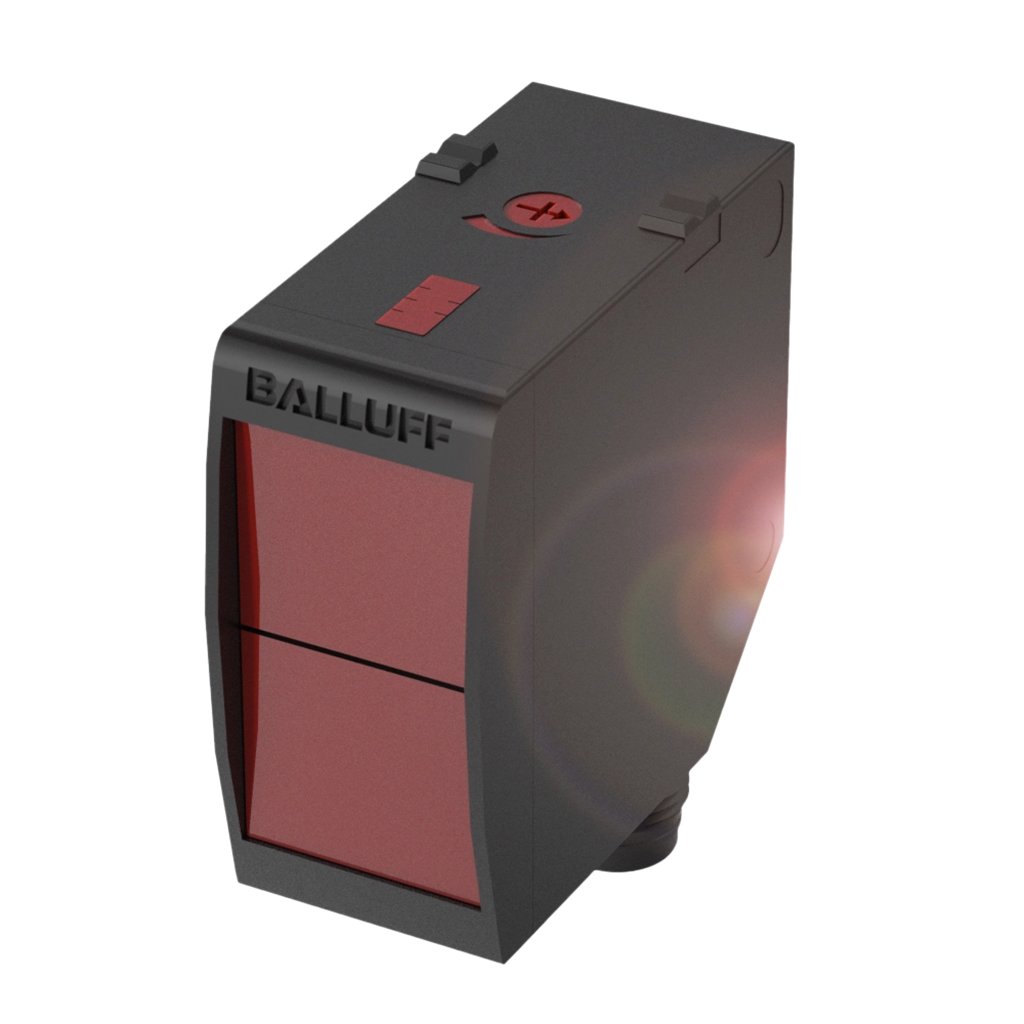

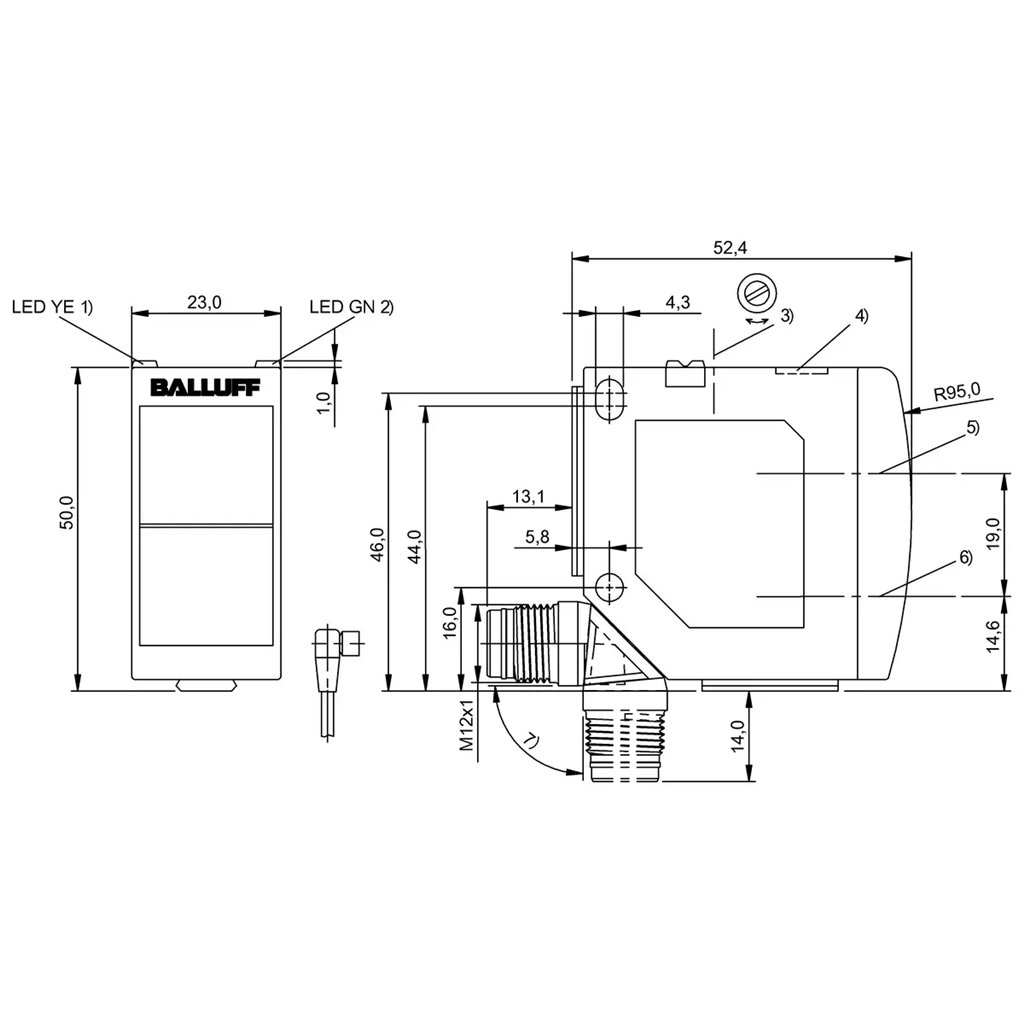

BOS 23K-GI-RH10-S4 BALLUFF - Part Number: BOS017A

Photo-electric sensor / switch with diffuse triangulation sensing + background suppression + LED beam (500mm typ. focus) - Balluff - model BOS 23K-GI-RH10-S4 - 3mm-1.2m (adjustable) sensing range - red LED beam light (640nm) - Pre-equipped with a 4-pin M12 male connector - 1 x digital output (PNP/NPN push-pull transistor; 100mA) (NO (Normally Open) or NC (Normally Closed) operation) - Rectangular shape - 18-30Vdc (24Vdc nom.) supply voltage - Rated for -4...+140°F / -20...+60°C ambient - PC (polycarbonate) housing + ABS (Acrylonitrile Butadiene Styrene) housing + PMMA (Acrylic) sensing surface - 600Hz max. switching frequency - Surface with through-holes (M4 screw) mounting - with IO-Link communication capability - ECOLAB compliant - equivalent to BOS23KGIRH10S4 Photo-electric sensor / switch with diffuse triangulation sensing + background suppression + LED beam (500mm typ. focus) - Balluff - model BOS 23K-GI-RH10-S4 - 3mm-1.2m (adjustable) sensing range - red LED beam light (640nm) - Pre-equipped with a 4-pin M12 male connector - 1 x digital output (PNP/NPN push-pull transistor; 100mA) (NO (Normally Open) or NC (Normally Closed) operation) - Rectangular shape - 18-30Vdc (24Vdc nom.) supply voltage - Rated for -4...+140°F / -20...+60°C ambient - PC (polycarbonate) housing + ABS (Acrylonitrile Butadiene Styrene) housing + PMMA (Acrylic) sensing surface - 600Hz max. switching frequency - Surface with through-holes (M4 screw) mounting - with IO-Link communication capability - ECOLAB compliant - equivalent to BOS23KGIRH10S4
