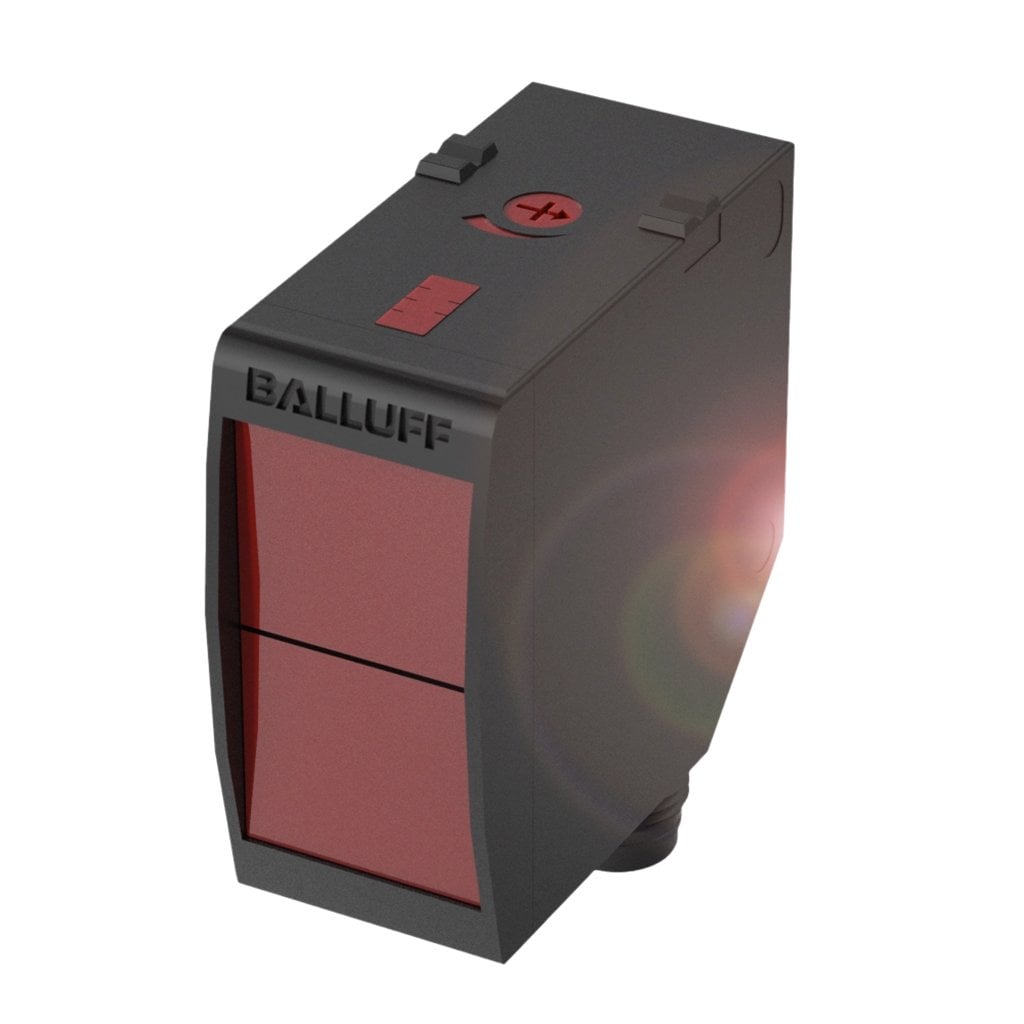

BOS 23K-PU-LH20-S4 BALLUFF - Part Number: BOS017H

Class 1 laser photo-electric sensor / switch with diffuse triangulation sensing + background suppression + collimated beam - Balluff - model BOS 23K-PU-LH20-S4 - 5-800mm (adjustable) sensing range - red Laser light (655nm) - Pre-equipped with a 4-pin M12 male connector - 1 x digital output (PNP transistor; 100mA) (NO (Normally Open) or NC (Normally Closed) operation) - Rectangular shape - 12-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -4...+140°F / -20...+60°C ambient - PC (polycarbonate) housing + ABS (Acrylonitrile Butadiene Styrene) housing + PMMA (Acrylic) sensing surface - 1000Hz / 1kHz max. switching frequency - Surface with through-holes (M4 screw) mounting - ECOLAB compliant - equivalent to BOS23KPULH20S4 Class 1 laser photo-electric sensor / switch with diffuse triangulation sensing + background suppression + collimated beam - Balluff - model BOS 23K-PU-LH20-S4 - 5-800mm (adjustable) sensing range - red Laser light (655nm) - Pre-equipped with a 4-pin M12 male connector - 1 x digital output (PNP transistor; 100mA) (NO (Normally Open) or NC (Normally Closed) operation) - Rectangular shape - 12-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -4...+140°F / -20...+60°C ambient - PC (polycarbonate) housing + ABS (Acrylonitrile Butadiene Styrene) housing + PMMA (Acrylic) sensing surface - 1000Hz / 1kHz max. switching frequency - Surface with through-holes (M4 screw) mounting - ECOLAB compliant - equivalent to BOS23KPULH20S4
