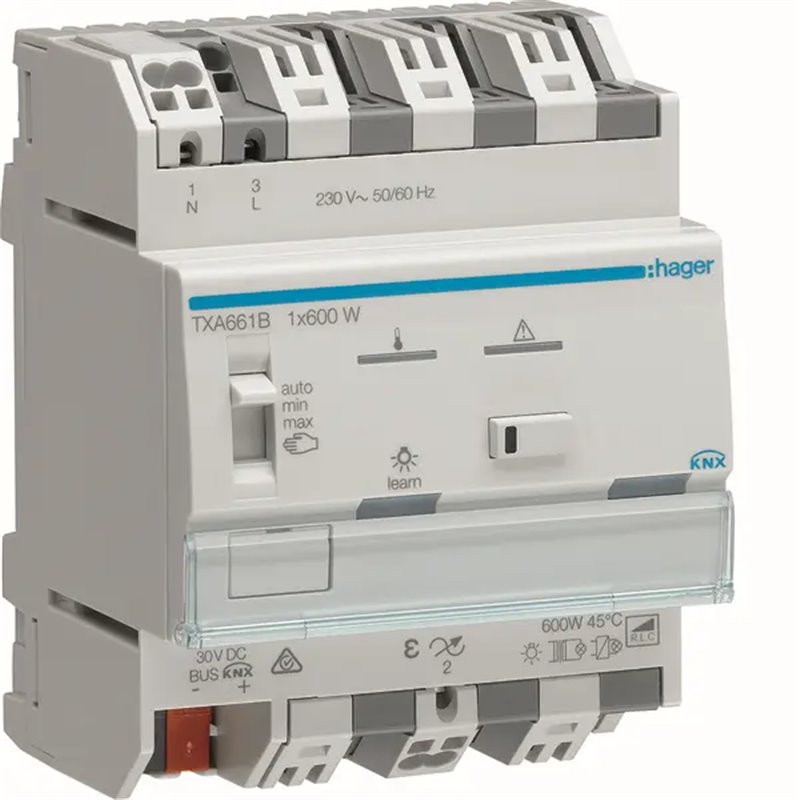

TXA661B HAGER KNX dimmer module RLC 1 output 600W 230V AC easy and ETS configuration 4M
Hager
1-channel KNX dimmer module, power 600 W 230 V AC for DIN rail, with automatic recognition of load type (resistive, inductive, capacitive). Compatible with 230 V lights, dimmable LEDs, halogen and CFL. Easily configurable via easy mode or ETS software, it allows min/max adjustments, timer, scenarios, overload and overheating protection, as well as integrated manual control. 1-channel KNX dimmer module, power 600 W 230 V AC for DIN rail, with automatic recognition of load type (resistive, inductive, capacitive). Compatible with 230 V lights, dimmable LEDs, halogen and CFL. Easily configurable via easy mode or ETS software, it allows min/max adjustments, timer, scenarios, overload and overheating protection, as well as integrated manual control.
MPNs TXA661B, HAGTXA661B
EAN 3250616048713
HS Code 85365080
Country of origin Poland
Weight
0.26 kg
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy
Secure payments
& many more
& many more
We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods
12 Months warranty
This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty
Returns available within 30 days
Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.
Product information
Technical specifications
- Degree of protection (IP)
- IP20
- Mounting method
- DRA (DIN-rail adapter)
- Model
- Control module
- With LED indication
- TRUE
- Width in number of modular spacings
- 4
- Other bus systems
- None
- Number of outputs
- 1
- Frequency
- 50;60 Hz
- With bus connection
- TRUE
- Type of load
- Universal
- Voltage
- 30;30 V
- Local operation/hand operation
- TRUE
- Output power
- 600;600 W
- Bus system KNX
- TRUE
- Max. switching power LED
- 120 W
- Max. control current
- 4 mA
