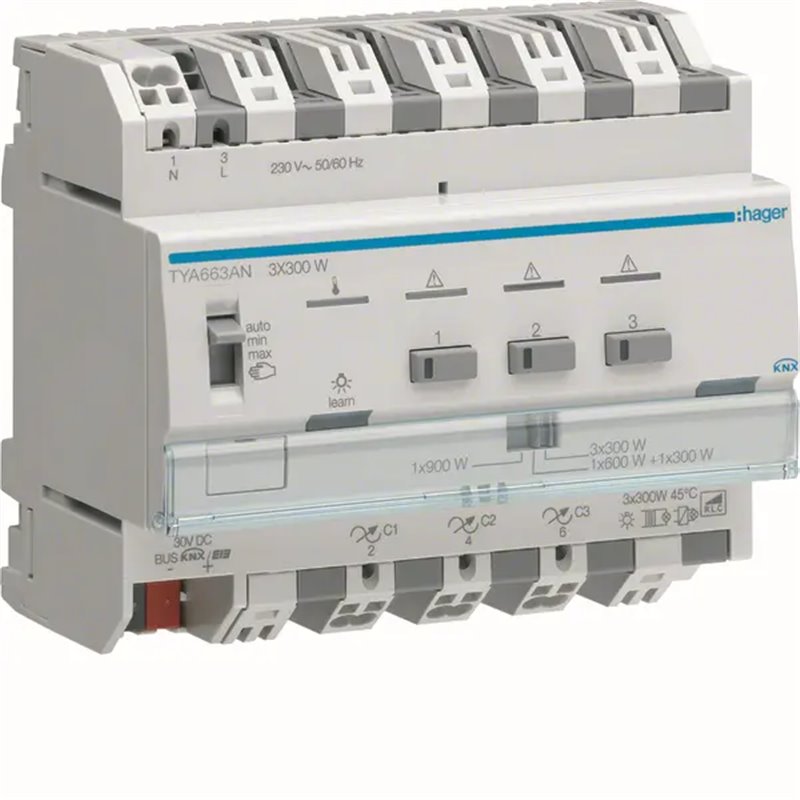

TYA663AN HAGER KNX plus dimmer module 3 outputs 300W combinable 230V AC ETS 6M
Hager
3-channel KNX dimmer module, 300 W each, combinable up to 900 W total. Ideal for DIN rail installation (6 modules), it allows efficient control of dimmable LED, halogen and CFL lights. Includes automatic load detection, min/max adjustment, lighting scenarios and protections against short circuit, overload and overheating. With advanced functions and ETS System configuration, it guarantees flexibility and smart lighting management. 3-channel KNX dimmer module, 300 W each, combinable up to 900 W total. Ideal for DIN rail installation (6 modules), it allows efficient control of dimmable LED, halogen and CFL lights. Includes automatic load detection, min/max adjustment, lighting scenarios and protections against short circuit, overload and overheating. With advanced functions and ETS System configuration, it guarantees flexibility and smart lighting management.
MPNs TYA663AN, HAGTYA663AN
EAN 3250616059351
HS Code 85365080
Country of origin Poland
Weight
0.41 kg
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy
Secure payments
& many more
& many more
We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods
12 Months warranty
This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty
Returns available within 30 days
Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.
Product information
Technical specifications
- Degree of protection (IP)
- IP20
- Mounting method
- DRA (DIN-rail adapter)
- Model
- Dimming actuator
- With LED indication
- TRUE
- Width in number of modular spacings
- 6
- Other bus systems
- None
- Number of outputs
- 3
- Frequency
- 50;60 Hz
- With bus connection
- TRUE
- Type of load
- Universal
- Voltage
- 30;30 V
- Local operation/hand operation
- TRUE
- Output power
- 900;900 W
- Bus system KNX
- TRUE
- Substation input
- TRUE
- Max. switching power LED
- 210 W
- Max. control current
- 4 mA
