TYM646R HAGER KNX HVAC module 6 outputs 24/230V AC + 12 temperature controllers easy and ETS 4M

Hager

compare

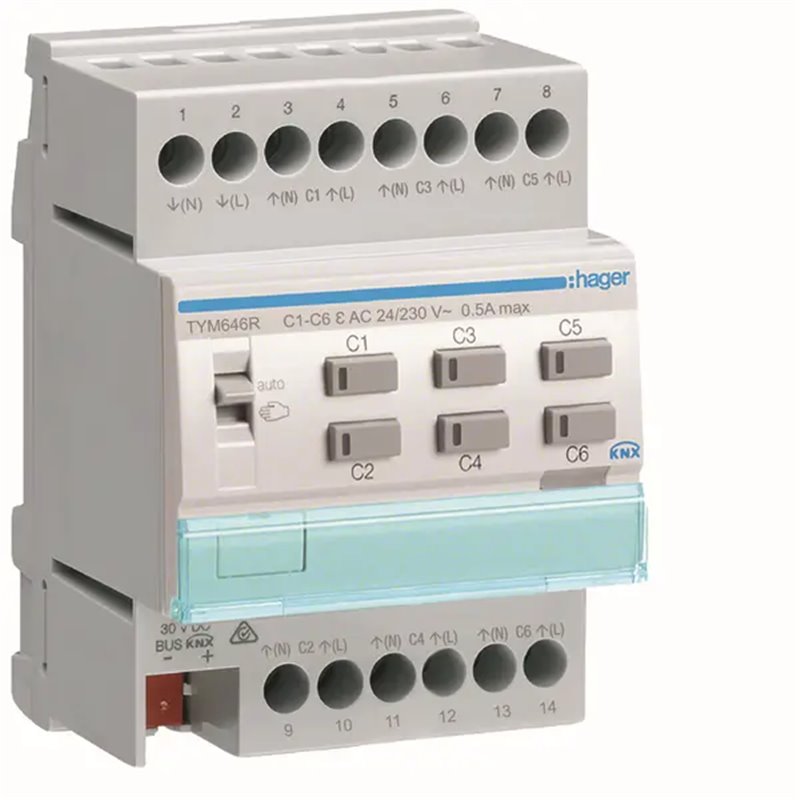

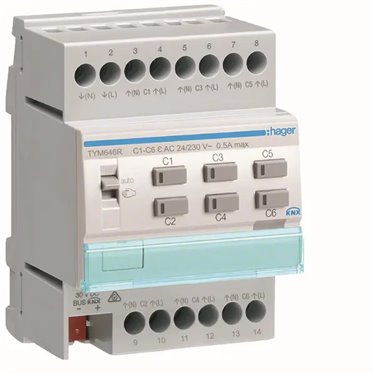

TYM646R - HAGER

KNX module for controlling 24/230 V AC HVAC valves, with 6 silent TRIAC outputs and 12 integrated virtual thermostats. Includes manual control (0-50-100%), status LEDs, protection against short circuits and overloads, logic blocks and hour counter. Perfect for centralized heating or cooling systems. DIN rail installation (4 modules), configurable in System mode. KNX module for controlling 24/230 V AC HVAC valves, with 6 silent TRIAC outputs and 12 integrated virtual thermostats. Includes manual control (0-50-100%), status LEDs, protection against short circuits and overloads, logic blocks and hour counter. Perfect for centralized heating or cooling systems. DIN rail installation (4 modules), configurable in System mode.

MPNs TYM646R, HAGTYM646R
EAN 3250618502022
HS Code 85365080
Country of origin Poland
Weight 0.28 kg
Download Datasheet
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Technical specifications

Degree of protection (IP)
IP20
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
4
Max. output current
0.16 mA
Other bus systems
None
Correcting variable consistent
TRUE
Valve protection function
TRUE
Manual switch
TRUE
Number of outputs
6
With bus connection
TRUE
Bus system KNX
TRUE
Max. switching current (resistive load)
0.16 A
Switching voltage
24;230 V
Correcting variable switching
TRUE
