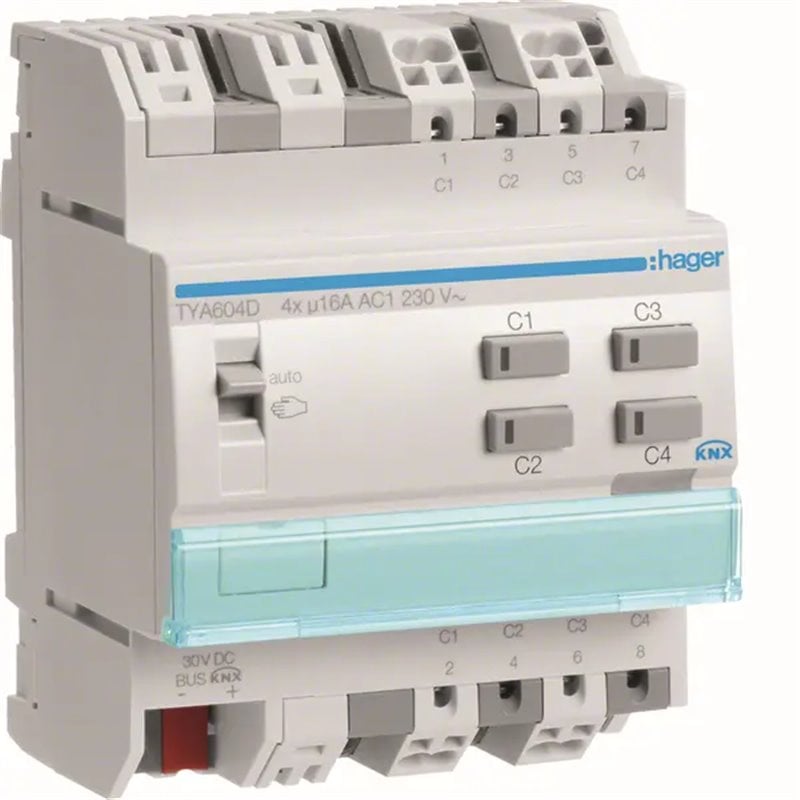

TYA604D HAGER KNX module 4 outputs 16A 230V AC capacitive loads ETS mode configuration
Hager
KNX module with 4 outputs of 16 A 230 V AC, ideal for managing capacitive loads, with quickconnect terminals. It offers manual and automatic control, deactivatable LEDs, dynamic scenarios, logic blocks, flashing function, switching count and alarms. Perfect for controlling loads and shutter or blind motors. Programmable with ETS software for maximum flexibility, it occupies 4 DIN modules. KNX module with 4 outputs of 16 A 230 V AC, ideal for managing capacitive loads, with quickconnect terminals. It offers manual and automatic control, deactivatable LEDs, dynamic scenarios, logic blocks, flashing function, switching count and alarms. Perfect for controlling loads and shutter or blind motors. Programmable with ETS software for maximum flexibility, it occupies 4 DIN modules.
MPNs TYA604D, HAGTYA604D
EAN 3250616059832
HS Code 85365005
Country of origin Poland
Weight
0.3 kg
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy
Secure payments
& many more
& many more
We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods
12 Months warranty
This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty
Returns available within 30 days
Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.
Product information
Technical specifications
- Degree of protection (IP)
- IP20
- Mounting method
- DRA (DIN-rail adapter)
- Rated current
- 16 A
- With LED indication
- TRUE
- Width in number of modular spacings
- 4
- Other bus systems
- None
- With bus connection
- TRUE
- Local operation/hand operation
- TRUE
- Output power
- 2300 VA
- Rated operating voltage
- 230;230 V
- Max. switching power
- 5750 VA
- Max. number of switching contacts
- 4
- Max. switching current
- 16 A
- Bus system KNX
- TRUE
- Different phases connectable
- TRUE
- Suitable for C-load
- TRUE
- Max. switching power LED
- 414 W
