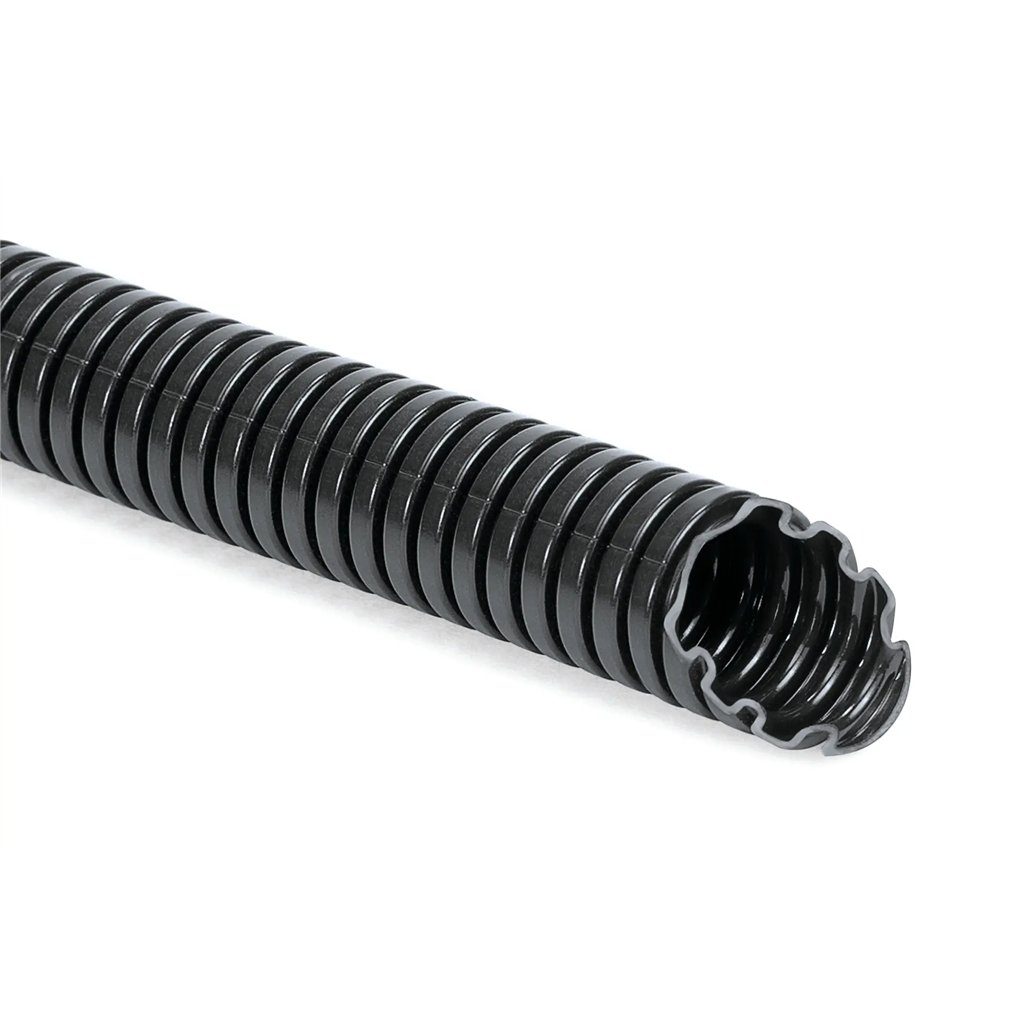

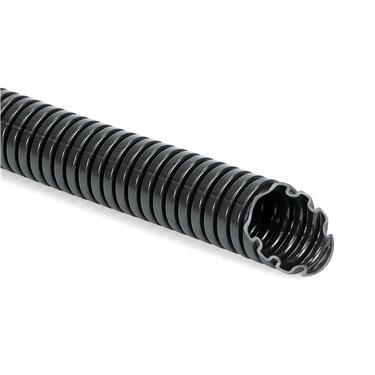

Corrugated flexible conduit PA12 ø 34mm reel 25m Corrugated flexible conduit PA12 ø 34mm reel 25m

MPNs 166-11505, HEE166-11505, HG-HI34-PA12-BK
EAN 4031026302683
HS Code 39173200
Country of origin United Kingdom(excl.North.Ireland)
Weight 0.14 kg
Download Datasheet
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

This product can only be returned in case of defects covered by the warranty.

View our return policy

Available on request

Minimum order quantity - 25

Need a smaller quantity? Contact us!

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Excellent durability over time. Very flexible. Recovers its original shape when crushed. Good mechanical properties at low temperatures. Extremely resistant to solvents and oils. Zero halogens, sulfates and phosphates. Self-extinguishing according to IEC 61386. Color: Black. PA12 corrugated flexible conduit for applications with continuous movement and twisting: robotics and automation, railway industry and machine building. Excellent durability over time. Very flexible. Recovers its original shape when crushed. Good mechanical properties at low temperatures. Extremely resistant to solvents and oils. Zero halogens, sulfates and phosphates. Self-extinguishing according to IEC 61386. Color: Black. PA12 corrugated flexible conduit for applications with continuous movement and twisting: robotics and automation, railway industry and machine building.

Technical specifications

Degree of protection (IP)
IP66
Colour
Black
Outer diameter
34.5 mm
Material
Polyamide 12
Halogen free
TRUE
Fire resistance according to UL94
Other
Nominal diameter
34 mm
Operating temperature
-50;110 °C
Inner diameter
28.1 mm
Bending strength
Flexible
Oil resistant
TRUE

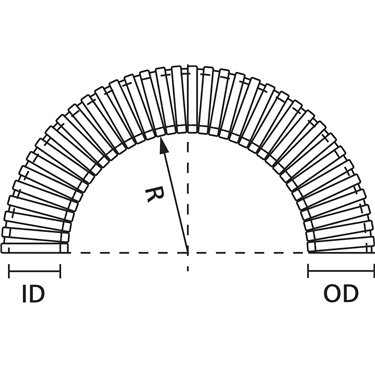

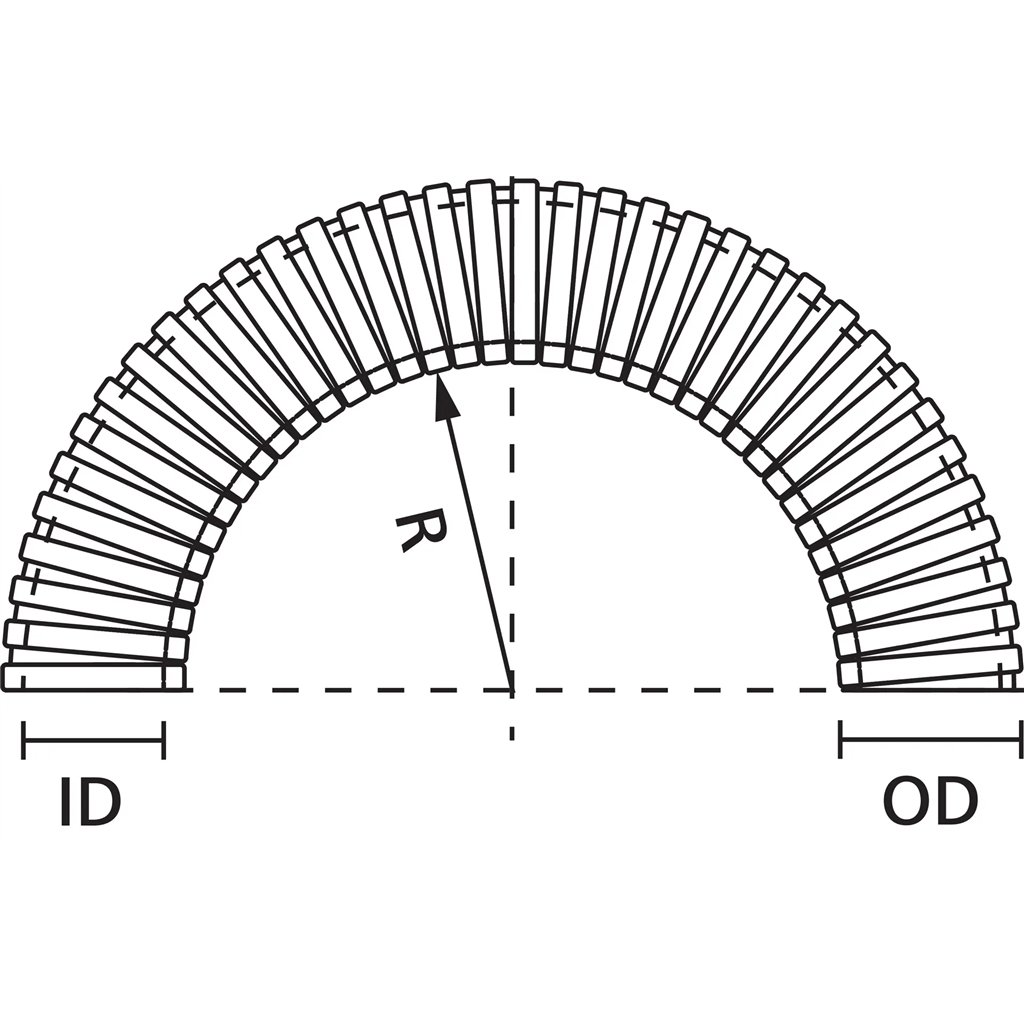

Bending radius, static
55 mm
Sheathing material
Not sheathed
Nominal size in inch
Other
Approved according to DIN EN 61386-23
TRUE
Bending radius, dynamic
55 mm
Approved according to UR
TRUE
