166-41001 HellermannTyton - PSRSC12-FMC-M16-NPB/PA6-ML
Available on request
Minimum order quantity - 500

Minimum order quantity - 500

Need a smaller quantity? Contact us!

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

166-41001 HellermannTyton - PSRSC12-FMC-M16-NPB/PA6-ML

HellermannTyton

compare
166-41001 HellermannTyton - PSRSC12-FMC-M16-NPB/PA6-ML

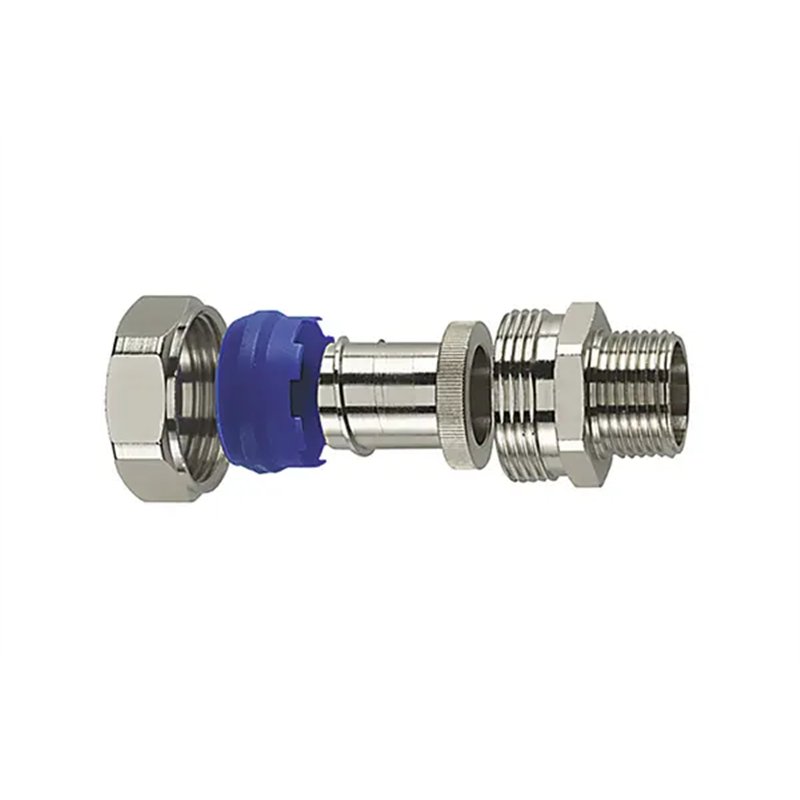

Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits ø12mm M16 Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits ø12mm M16

MPNs 166-41001, HEE166-41001, PSRSC12-FMC-M16-NPB/PA6-ML
EAN 4031026410821
HS Code 74122000
Country of origin United Kingdom(excl.North.Ireland)
Weight 0.04 kg
Download Datasheet
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

This product can only be returned in case of defects covered by the warranty.

View our return policy

Available on request

Minimum order quantity - 500

Need a smaller quantity? Contact us!

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Compression fitting composed of several elements with elastomeric gasket. Can be used on threaded holes as the fitting rotates until fully tightened. Suitable for PSRSC conduit. Straight fitting with fixed male thread, nickel-plated brass. IP66, IP67, IP68 and IP69K with PSRSC conduits. Compression fitting composed of several elements with elastomeric gasket. Can be used on threaded holes as the fitting rotates until fully tightened. Suitable for PSRSC conduit. Straight fitting with fixed male thread, nickel-plated brass. IP66, IP67, IP68 and IP69K with PSRSC conduits.

Technical specifications

Degree of protection (IP)
IP68
Construction type
External thread
Colour
Other
Model
Straight
Total length
29.8 mm
Nominal diameter
12 mm
Thread length
10.0 mm
Nominal size in inch
Other
Type of connection
Thread
Material sealing
Polyamide (PA)
Lowest inner diameter hose
8.6 mm
Max. outer diameter hose
24 mm
Thread connection size
M16 x 1.5
Total height
24 mm
Material screw gland
Polyamide (PA)
