BCC M313-M413-3E-300-VX43T2-050 BALLUFF - Part Number: BCC053F
Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

BCC M313-M413-3E-300-VX43T2-050 BALLUFF - Part Number: BCC053F

BALLUFF

compare
BCC M313-M413-3E-300-VX43T2-050 BALLUFF - Part Number: BCC053F

Double-ended cable / cordset - Balluff - model BCC M313-M413-3E-300-VX43T2-050 - 5m length - Rated for 60Vdc / 60Vac - yellow jacket color - 3 x #22AWG wires - M8 connector (3-pin; A-coded; female; straight) + M12 connector (3-pin; A-coded; male; straight) - Rated current 4A (at 40°C) - IP67 - Polyvinyl Chloride (PVC) jacket - equivalent to BCCM313M4133E300VX43T2050 Double-ended cable / cordset - Balluff - model BCC M313-M413-3E-300-VX43T2-050 - 5m length - Rated for 60Vdc / 60Vac - yellow jacket color - 3 x #22AWG wires - M8 connector (3-pin; A-coded; female; straight) + M12 connector (3-pin; A-coded; male; straight) - Rated current 4A (at 40°C) - IP67 - Polyvinyl Chloride (PVC) jacket - equivalent to BCCM313M4133E300VX43T2050

MPNs BCC053F, BAUBCC053F, BCC M313-M413-3E-300-VX43T2-050
HS Code 8536698000
Country of origin Germany
Weight N/A

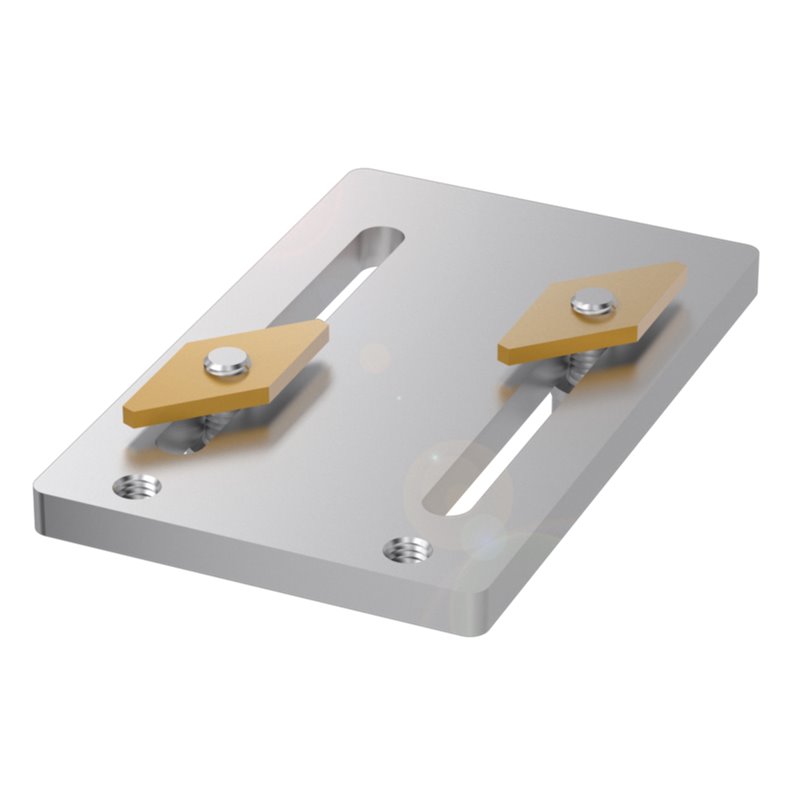

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Connection 1 M8x1-Female, straight, 3-pin, A-coded Connection 2 M12x1-Male, straight, 3-pin, A-coded Cable PVC yellow, 5 m Number of conductors 3 Cable temperature, fixed routing -40...105 °C Cable temperature, flexible routing -5...105 °C Operating voltage Ub 60 VDC / 60 VAC Rated current (40 °C) 4.0 A IP rating IP67, IP69K/IP67, IP68, IP69K Approval/Conformity CEcULusWEEE Connection 1 M8x1-Female, straight, 3-pin, A-coded Connection 2 M12x1-Male, straight, 3-pin, A-coded Cable PVC yellow, 5 m Number of conductors 3 Cable temperature, fixed routing -40...105 °C Cable temperature, flexible routing -5...105 °C Operating voltage Ub 60 VDC / 60 VAC Rated current (40 °C) 4.0 A IP rating IP67, IP69K/IP67, IP68, IP69K Approval/Conformity CEcULusWEEE
