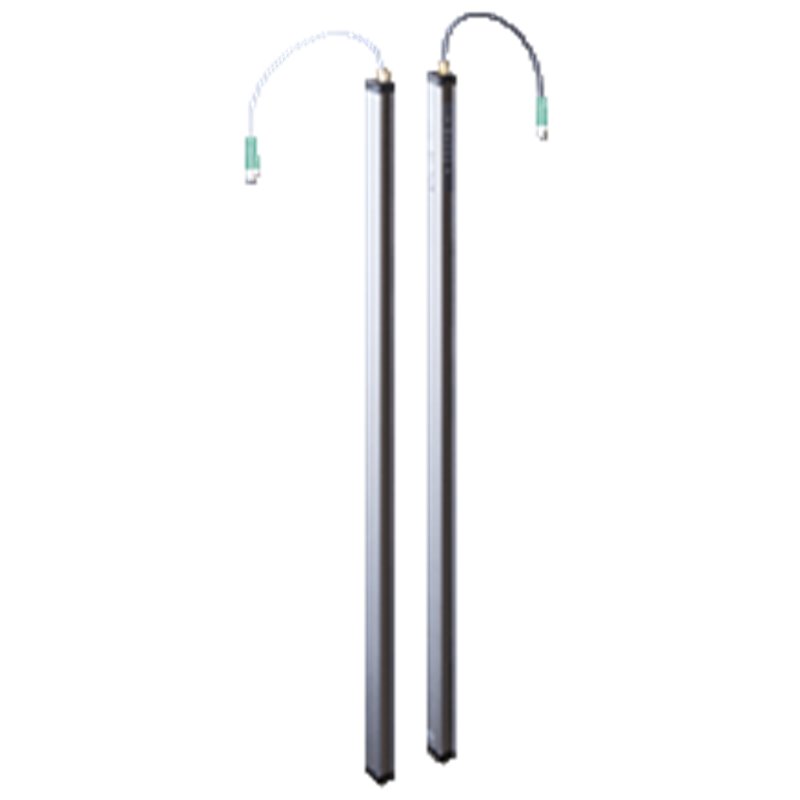

LGS25-2000-IO/110/115b PEPPERL+FUCHS - Part number: 232506-0077

Datasheet excerpt: Technical data of  LGS25 Product Description Automation light grid with beam spacing of 25 mm, IO-Link interface, push-pull output, fixed cable with M12 plug General specifications Effective detection rangeStandard : 0.3 ... 6 m Option /35: 0.5 ... 8 m Threshold detection rangeStandard : 7.5 m Option /35: 10 m Light sourceIRED Light typemodulated infrared light , 850 nm Field heightsee Table 1, max. 3200 mm Beam crossoverFactory setting: three beam crossing, deactivateable Beam blankingadjustable max. 2 fixed suppressible beam areas (blanking) Beam spacing25 mm Number of beamssee Table 1, max. 129 Operating modeEmitter: Emitter power adjustable in two ranges Optical resolutionwithout beam crossover: 25 mm with beam crossover: 12.5 mm with in 25%  and  75% of the range Opening angle10 ° Ambient light limit> 50000 Lux (if external light source is outside the opening angle) Functional safety related parameters MTTFd34 a Mission Time (TM)20 a Diagnostic Coverage (DC)60 % Indicators/operating means Operation indicatorPower on: LED green, statically lit , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) Function indicatorEmitter: Yellow LED, illuminates at high emitting power, off at low emitting power Receiver: Yellow LED: illuminates when an object is detected flashes when falling short of the stability control (4 Hz) Error message: Yellow LED flashes (8 Hz) in emitter and receiver Control elementsReceiver: 2 touch buttons for programming Parameterization indicatorIO link communication: green LED goes out briefly (1 Hz) Electrical specifications Operating voltage18 ... 30 V DC Ripple10 % No-load supply currentEmitter ≤: 50 mA Receiver: ≤ 150 mA (without outputs) Time delay before availabilitysee Table 1, max. 2.3 s Interface Interface typeIO-Link ProtocolIO-Link V1.0 ModeCOM2 (38.4 kBit/s) Input Test inputEmitter switch-off with +UB or 0 V at pin 4 (emitter) Function inputRange input activation from 1.6 m (or 2 m in case of option /35) with +UB or 0 V on pin 2 (emitter) Teach-In input for programming on pin 8 (receiver) Output Pre-fault indication outputStability Control (SC) 1 PNP, short-circuit protected, reverse polarity protected on pin 2 (receiver) Switching typeFactory setting: dark on , Switchable to light-on mode Signal outputSwitch output (detection field C/Q) 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected on pin 4 (receiver), Height monitoring (H1, H2. H3) 3 push-pull (4 in 1) outputs, short-circuit proof, reverse polarity protected on pin 5, pin 6, pin 7 (receiver) Switching thresholdFactory setting: The signal tracking for the threshold value is deactivated, increasing the optical resolution by a maximum of 4 mm; switchable to active signal tracking Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2 V DC Switching frequencysee Table 1, max. 135 Hz Response timesee Table 1, max. 12 ms Timer functionOff-delay programmable from 0 ... 1.25 s in 5 ms steps (adjustment via IO-Link only) Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates Protection classIII ( IEC 61140 ) UL approvalcULus Listed CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperatureStandard : -10 ... 60 °C (14 ... 140 °F) Option /146: -30 ... 60 °C (-22 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Conductor cross sectionmin. 0.25 mm2 Housing width20 mm Housing depth30.5 mm Housing length Lsee Table 1, max. 3360 mm Degree of protectionIP67 ConnectionEmitter: connecting cable with 4-pin, M12 x 1 connector , 330 mm total length Receiver: connecting cable with 8-pin, M12 x 1 connector , 350 mm total length Material Housingextruded aluminum section , Silver anodized Optical facePlastic pane , Polycarbonate Masssee Table 1, max. 1750 g (per profile) Cable lengthmax. 30 m Classifications SystemClasscode ECLASS 11.027270910 ECLASS 10.0.127270910 ECLASS 9.027270910 ECLASS 8.027270910 ECLASS 5.127270910 ETIM 8.0EC002549 ETIM 7.0EC002549 ETIM 6.0EC002549 ETIM 5.0EC002549 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  LGS25 Product Description Automation light grid with beam spacing of 25 mm, IO-Link interface, push-pull output, fixed cable with M12 plug General specifications Effective detection rangeStandard : 0.3 ... 6 m Option /35: 0.5 ... 8 m Threshold detection rangeStandard : 7.5 m Option /35: 10 m Light sourceIRED Light typemodulated infrared light , 850 nm Field heightsee Table 1, max. 3200 mm Beam crossoverFactory setting: three beam crossing, deactivateable Beam blankingadjustable max. 2 fixed suppressible beam areas (blanking) Beam spacing25 mm Number of beamssee Table 1, max. 129 Operating modeEmitter: Emitter power adjustable in two ranges Optical resolutionwithout beam crossover: 25 mm with beam crossover: 12.5 mm with in 25%  and  75% of the range Opening angle10 ° Ambient light limit> 50000 Lux (if external light source is outside the opening angle) Functional safety related parameters MTTFd34 a Mission Time (TM)20 a Diagnostic Coverage (DC)60 % Indicators/operating means Operation indicatorPower on: LED green, statically lit , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) Function indicatorEmitter: Yellow LED, illuminates at high emitting power, off at low emitting power Receiver: Yellow LED: illuminates when an object is detected flashes when falling short of the stability control (4 Hz) Error message: Yellow LED flashes (8 Hz) in emitter and receiver Control elementsReceiver: 2 touch buttons for programming Parameterization indicatorIO link communication: green LED goes out briefly (1 Hz) Electrical specifications Operating voltage18 ... 30 V DC Ripple10 % No-load supply currentEmitter ≤: 50 mA Receiver: ≤ 150 mA (without outputs) Time delay before availabilitysee Table 1, max. 2.3 s Interface Interface typeIO-Link ProtocolIO-Link V1.0 ModeCOM2 (38.4 kBit/s) Input Test inputEmitter switch-off with +UB or 0 V at pin 4 (emitter) Function inputRange input activation from 1.6 m (or 2 m in case of option /35) with +UB or 0 V on pin 2 (emitter) Teach-In input for programming on pin 8 (receiver) Output Pre-fault indication outputStability Control (SC) 1 PNP, short-circuit protected, reverse polarity protected on pin 2 (receiver) Switching typeFactory setting: dark on , Switchable to light-on mode Signal outputSwitch output (detection field C/Q) 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected on pin 4 (receiver), Height monitoring (H1, H2. H3) 3 push-pull (4 in 1) outputs, short-circuit proof, reverse polarity protected on pin 5, pin 6, pin 7 (receiver) Switching thresholdFactory setting: The signal tracking for the threshold value is deactivated, increasing the optical resolution by a maximum of 4 mm; switchable to active signal tracking Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2 V DC Switching frequencysee Table 1, max. 135 Hz Response timesee Table 1, max. 12 ms Timer functionOff-delay programmable from 0 ... 1.25 s in 5 ms steps (adjustment via IO-Link only) Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates Protection classIII ( IEC 61140 ) UL approvalcULus Listed CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperatureStandard : -10 ... 60 °C (14 ... 140 °F) Option /146: -30 ... 60 °C (-22 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Conductor cross sectionmin. 0.25 mm2 Housing width20 mm Housing depth30.5 mm Housing length Lsee Table 1, max. 3360 mm Degree of protectionIP67 ConnectionEmitter: connecting cable with 4-pin, M12 x 1 connector , 330 mm total length Receiver: connecting cable with 8-pin, M12 x 1 connector , 350 mm total length Material Housingextruded aluminum section , Silver anodized Optical facePlastic pane , Polycarbonate Masssee Table 1, max. 1750 g (per profile) Cable lengthmax. 30 m Classifications SystemClasscode ECLASS 11.027270910 ECLASS 10.0.127270910 ECLASS 9.027270910 ECLASS 8.027270910 ECLASS 5.127270910 ETIM 8.0EC002549 ETIM 7.0EC002549 ETIM 6.0EC002549 ETIM 5.0EC002549 UNSPSC 12.139121528
