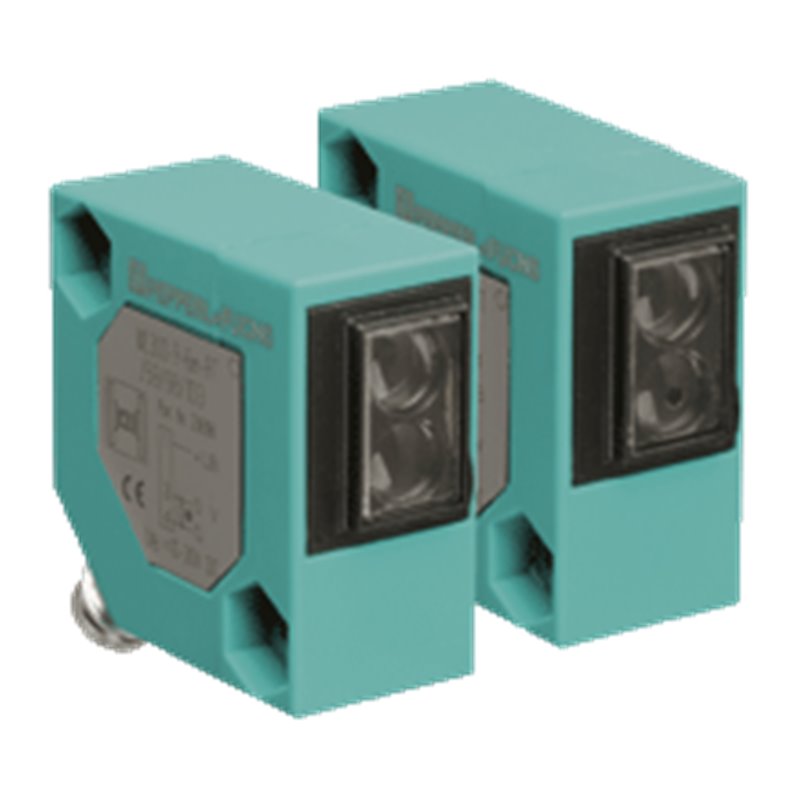

ML300-T-12m-IR/76b/95 PEPPERL+FUCHS - Part number: 238233

Datasheet excerpt: Technical data of  ML300-P-12m-IR/76b/82d/95/103 Product Description Thru-beam sensor System components EmitterML300-T-12m-IR/76b/95 ReceiverML300-R-12m-IR/25/82d/95/103 General specifications Effective detection range0 ... 12 m Threshold detection range14 m Light sourceIRED Light typemodulated infrared light 880 nm Diameter of the light spotapprox. 4 m at 12 m Opening angleapprox. 7 ° Ambient light limit Continuous light10000 Lux Modulated light5000 Lux Indicators/operating means Function indicatorLED yellow: lights up when output is active LED green: Sufficient stability control Control elementssensitivity adjustment Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 20 % No-load supply currentEmitter: ≤ 15 mA Receiver: ≤ 10 mA Input Test inputemitter: 1 test input,not activated: < 4 V, activated: > 8 V or open Output Pre-fault indication output1 PNP, inactive when falling short of the stability control , open collector , short-circuit protected, reverse polarity protected , 100 mA max Switching typelight on Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 0.1 A Voltage drop≤ 2 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceEN 60947-5-7 30 g, 11 ms, all axes Vibration resistanceEN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 55 °C (-13 ... 131 °F) Mechanical specifications Housing width30 mm Housing height30 mm Housing depth15 mm Degree of protectionIP67 ConnectionM8 x 1 connector, 4-pin Material HousingPBT Optical faceglass pane Connectormetal Mass35 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  ML300-P-12m-IR/76b/82d/95/103 Product Description Thru-beam sensor System components EmitterML300-T-12m-IR/76b/95 ReceiverML300-R-12m-IR/25/82d/95/103 General specifications Effective detection range0 ... 12 m Threshold detection range14 m Light sourceIRED Light typemodulated infrared light 880 nm Diameter of the light spotapprox. 4 m at 12 m Opening angleapprox. 7 ° Ambient light limit Continuous light10000 Lux Modulated light5000 Lux Indicators/operating means Function indicatorLED yellow: lights up when output is active LED green: Sufficient stability control Control elementssensitivity adjustment Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 20 % No-load supply currentEmitter: ≤ 15 mA Receiver: ≤ 10 mA Input Test inputemitter: 1 test input,not activated: < 4 V, activated: > 8 V or open Output Pre-fault indication output1 PNP, inactive when falling short of the stability control , open collector , short-circuit protected, reverse polarity protected , 100 mA max Switching typelight on Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 0.1 A Voltage drop≤ 2 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceEN 60947-5-7 30 g, 11 ms, all axes Vibration resistanceEN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 55 °C (-13 ... 131 °F) Mechanical specifications Housing width30 mm Housing height30 mm Housing depth15 mm Degree of protectionIP67 ConnectionM8 x 1 connector, 4-pin Material HousingPBT Optical faceglass pane Connectormetal Mass35 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
