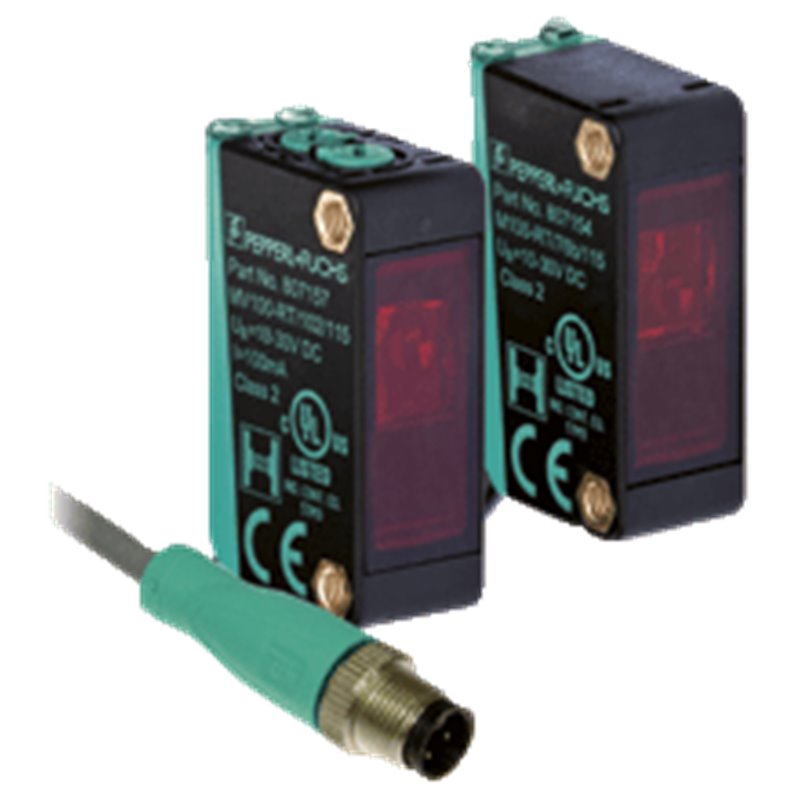

MV100-IR/103/115b PEPPERL+FUCHS - Part number: 70117529

Datasheet excerpt: Technical data of  M100/MV100-IR/76a/103/115b Product Description Thru-beam sensor, 15 m detection range, infrared light, light/dark on, DC version, PNP output, sensitivity adjuster, emitter switch-off, fixed cable with M12 plug System components EmitterM100-IR/76a/115b ReceiverMV100-IR/103/115b General specifications Effective detection range0 ... 15 m Threshold detection range20 m Light sourceIRED Light typemodulated infrared light Diameter of the light spot1.5 m at a distance of 20 m Opening angle2 ° Optical facefrontal Ambient light limitEN 60947-5-2 Functional safety related parameters MTTFd860 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Control elementssensitivity adjustment Control elementsLight-on/dark-on changeover switch Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentEmitter: ≤ 15 mA Receiver: ≤ 8 mA Input Test inputemitter deactivation at +UB Output Switching typeThe switching type of the sensor is adjustable. The default setting is: light-on Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency250 Hz Response time2 ms Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height31 mm Housing depth20 mm Degree of protectionIP67 Connection300 mm fixed cable with M12 connector, 4-pin Material HousingPC (Polycarbonate) Optical facePMMA Mass40 g (emitter and receiver) Tightening torque, fastening screws0.6 Nm Cable length0.3 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  M100/MV100-IR/76a/103/115b Product Description Thru-beam sensor, 15 m detection range, infrared light, light/dark on, DC version, PNP output, sensitivity adjuster, emitter switch-off, fixed cable with M12 plug System components EmitterM100-IR/76a/115b ReceiverMV100-IR/103/115b General specifications Effective detection range0 ... 15 m Threshold detection range20 m Light sourceIRED Light typemodulated infrared light Diameter of the light spot1.5 m at a distance of 20 m Opening angle2 ° Optical facefrontal Ambient light limitEN 60947-5-2 Functional safety related parameters MTTFd860 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Control elementssensitivity adjustment Control elementsLight-on/dark-on changeover switch Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentEmitter: ≤ 15 mA Receiver: ≤ 8 mA Input Test inputemitter deactivation at +UB Output Switching typeThe switching type of the sensor is adjustable. The default setting is: light-on Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency250 Hz Response time2 ms Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height31 mm Housing depth20 mm Degree of protectionIP67 Connection300 mm fixed cable with M12 connector, 4-pin Material HousingPC (Polycarbonate) Optical facePMMA Mass40 g (emitter and receiver) Tightening torque, fastening screws0.6 Nm Cable length0.3 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
