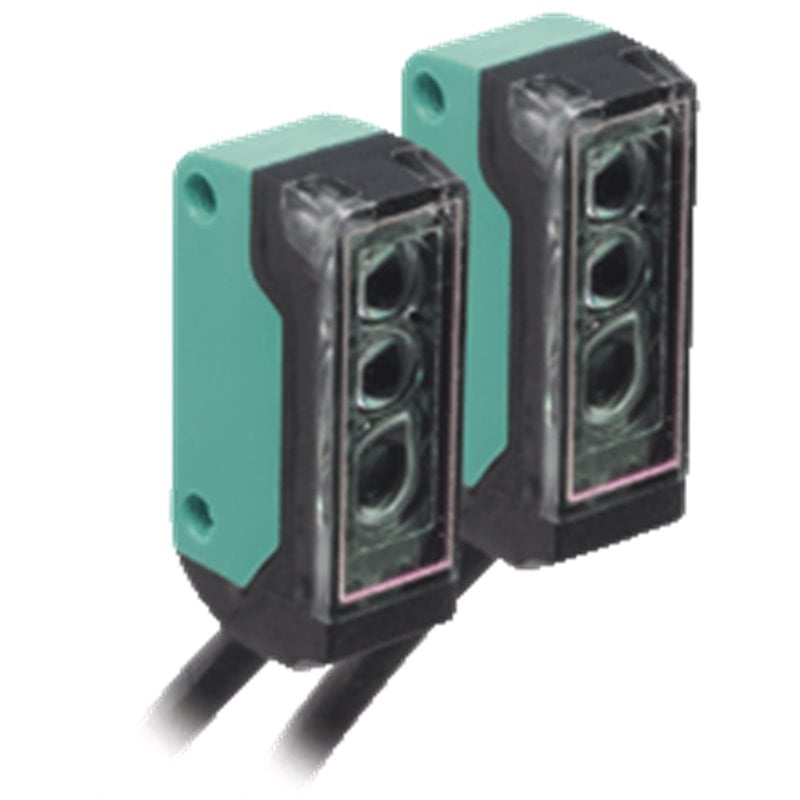

OBE10M-R2-SE0-L PEPPERL+FUCHS - Part number: 282043

Datasheet excerpt: Technical data of  OBE10M-R2-SE0-L Product Description Laser thru-beam sensor, ultra-small design with M2 mounting, very high 10 m detection range, NPN output, 2 m fixed cable System components EmitterOBE10M-R2-L ReceiverOBE10M-R2-E0-L General specifications Effective detection range0 ... 10 m Threshold detection range15 m Light sourcelaser diode Light typemodulated visible red light , 680 nm Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length680 nm Beam divergence> 5 mrad Pulse length3 µs Repetition rate16.6 kHz max. pulse energy9.5 nJ Diameter of the light spot20 mm at a distance of 10 m Opening angle0.5 ° Optical facefrontal Ambient light limitEN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd806 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on , short-circuit : LED green flashing (4 Hz) Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Electrical specifications Operating voltage12 ... 24 V No-load supply currentEmitter: ≤ 10 mA Receiver: ≤ 8 mA Protection classIII Input Test inputTest of switching function at 0 V Switching thresholdTeach-In input Output Switching typeNO contact Signal output1 NPN output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 50 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency2 kHz Response time250 µs Conformity Product standardEN 60947-5-2 Laser safetyEN 60825-1:2007 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Recognized, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V FDA approvalIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Housing width7.5 mm Housing height24 mm Housing depth11.2 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC/ABS and TPU Optical faceglass CablePUR InstallationFixing screws , 2 x M2 allen head screws included with delivery Mass20 g per sensor Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBE10M-R2-SE0-L Product Description Laser thru-beam sensor, ultra-small design with M2 mounting, very high 10 m detection range, NPN output, 2 m fixed cable System components EmitterOBE10M-R2-L ReceiverOBE10M-R2-E0-L General specifications Effective detection range0 ... 10 m Threshold detection range15 m Light sourcelaser diode Light typemodulated visible red light , 680 nm Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length680 nm Beam divergence> 5 mrad Pulse length3 µs Repetition rate16.6 kHz max. pulse energy9.5 nJ Diameter of the light spot20 mm at a distance of 10 m Opening angle0.5 ° Optical facefrontal Ambient light limitEN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd806 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on , short-circuit : LED green flashing (4 Hz) Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Electrical specifications Operating voltage12 ... 24 V No-load supply currentEmitter: ≤ 10 mA Receiver: ≤ 8 mA Protection classIII Input Test inputTest of switching function at 0 V Switching thresholdTeach-In input Output Switching typeNO contact Signal output1 NPN output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 50 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency2 kHz Response time250 µs Conformity Product standardEN 60947-5-2 Laser safetyEN 60825-1:2007 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Recognized, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V FDA approvalIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Housing width7.5 mm Housing height24 mm Housing depth11.2 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC/ABS and TPU Optical faceglass CablePUR InstallationFixing screws , 2 x M2 allen head screws included with delivery Mass20 g per sensor Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
