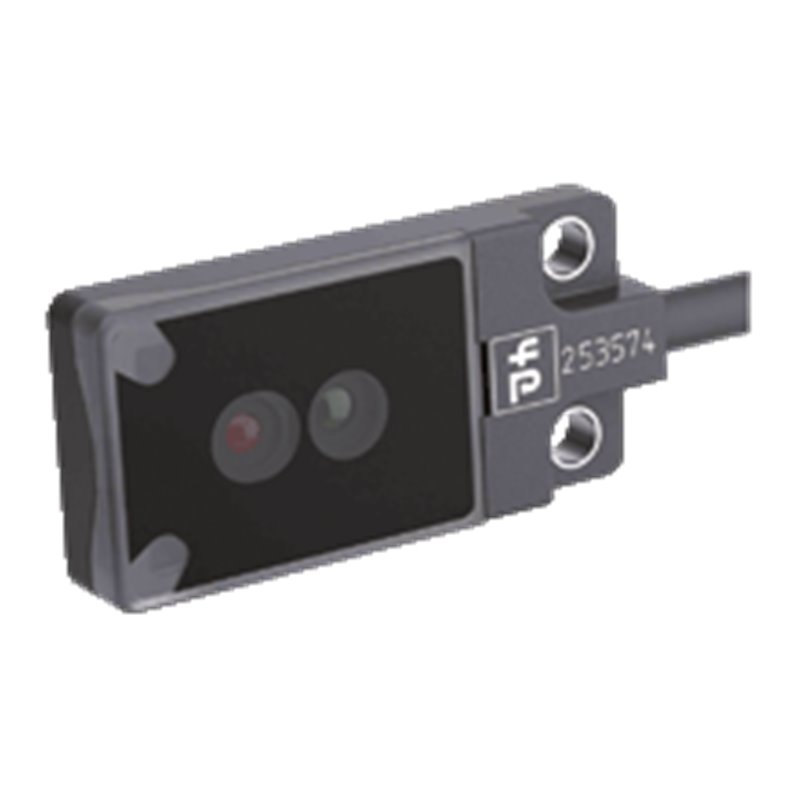

OBE500-R2F-S PEPPERL+FUCHS - Part number: 813030

Datasheet excerpt: Technical data of  OBE500-R2F-SE2 Product Description Thru-beam sensor, flat design, space-saving M2 mounting, 500 mm detection range, red light, dark on, PNP output, fixed cable System components EmitterOBE500-R2F-S ReceiverOBE500-R2F-E2 General specifications Effective detection range0 ... 500 mm Threshold detection range700 mm Light sourceLED Light typemodulated visible red light , 630 nm LED risk group labellingexempt group Angle deviation2 ° Object sizetyp. starts from 1.5 mm Diameter of the light spot90 mm at a distance of 500 mm Opening angle5 ° Optical facefrontal Ambient light limitEN 60947-5-2 : 25000 Lux Functional safety related parameters MTTFd806 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on , short-circuit : LED green flashing (4 Hz) Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Electrical specifications Operating voltage10 ... 30 V DC No-load supply current< 10 mA Protection classIII Input Test inputTest of switching function at 0 V Output Switching typeNO contact / dark-on Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 50 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency1 kHz Response time500 µs Conformity Product standardEN 60947-5-2 Approvals and certificates UL approvalE87056 , cULus Recognized, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Housing width12 mm Housing height25.5 mm Housing depth4.1 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC Optical facePMMA CablePUR Mass20 g per sensor Tightening torque, fastening screws1 Nm Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBE500-R2F-SE2 Product Description Thru-beam sensor, flat design, space-saving M2 mounting, 500 mm detection range, red light, dark on, PNP output, fixed cable System components EmitterOBE500-R2F-S ReceiverOBE500-R2F-E2 General specifications Effective detection range0 ... 500 mm Threshold detection range700 mm Light sourceLED Light typemodulated visible red light , 630 nm LED risk group labellingexempt group Angle deviation2 ° Object sizetyp. starts from 1.5 mm Diameter of the light spot90 mm at a distance of 500 mm Opening angle5 ° Optical facefrontal Ambient light limitEN 60947-5-2 : 25000 Lux Functional safety related parameters MTTFd806 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on , short-circuit : LED green flashing (4 Hz) Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Electrical specifications Operating voltage10 ... 30 V DC No-load supply current< 10 mA Protection classIII Input Test inputTest of switching function at 0 V Output Switching typeNO contact / dark-on Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 50 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency1 kHz Response time500 µs Conformity Product standardEN 60947-5-2 Approvals and certificates UL approvalE87056 , cULus Recognized, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Housing width12 mm Housing height25.5 mm Housing depth4.1 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC Optical facePMMA CablePUR Mass20 g per sensor Tightening torque, fastening screws1 Nm Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
