OHV2000-F221-B15 PEPPERL+FUCHS - Part number: 289432
Disponible bajo petición

Obtenga su presupuesto personalizado ahora

Un representante de ventas dedicado le ayudará a ofrecer el mejor precio y plazos de entrega.

Debes estar registrado

OHV2000-F221-B15 PEPPERL+FUCHS - Part number: 289432

PEPPERL+FUCHS

comparar
OHV2000-F221-B15 PEPPERL+FUCHS - Part number: 289432

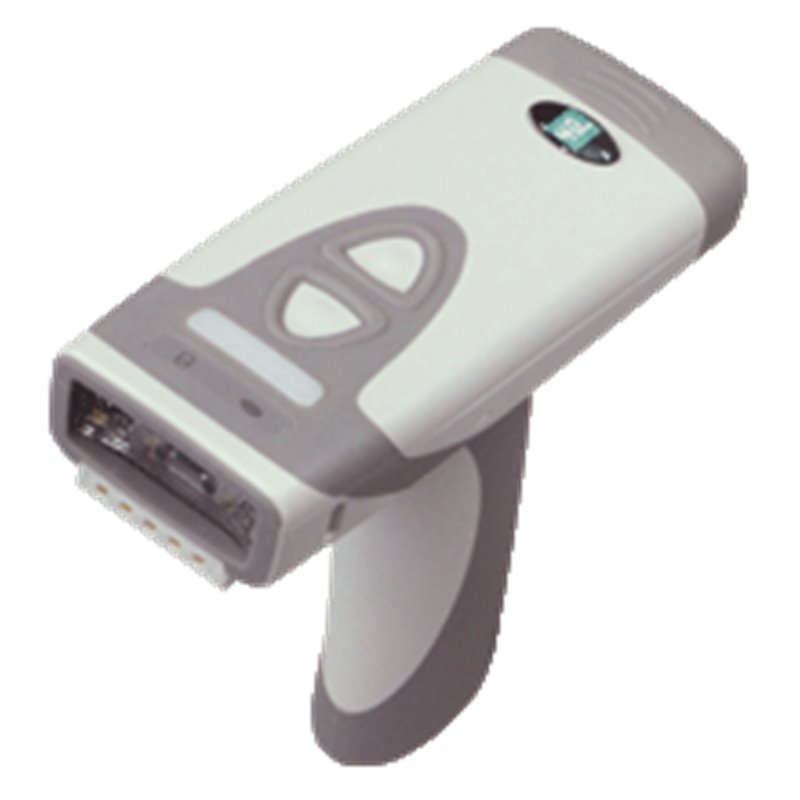

Handheld reader OHV2000-F221-B15 OHV2000-F221-B15 All common 1-D or 2-D codes can be read Wireless Bluetooth connection Dual lens for large read range Reading of laser-engraved, etched, or printed codes Reads from reflective surfaces Programmable with JavaScript Batch mode for collecting data on the handheld Audible, tactile, and visual user feedback Replaceable battery with status indicator Degree of protection IP65 Handheld reader OHV2000-F221-B15 OHV2000-F221-B15 All common 1-D or 2-D codes can be read Wireless Bluetooth connection Dual lens for large read range Reading of laser-engraved, etched, or printed codes Reads from reflective surfaces Programmable with JavaScript Batch mode for collecting data on the handheld Audible, tactile, and visual user feedback Replaceable battery with status indicator Degree of protection IP65

MPNs 289432, PEP289432, OHV2000-F221-B15
Código HS 84718000
Weight 0.22 kg
La imagen del producto es solo para fines ilustrativos.
El país de origen, el código del HS y la descripción son proporcionados por el fabricante y pueden estar sujetos a cambios sin previo aviso. Por esta razón, PLC-City no puede ser responsable de las discrepancias.
Vendido por PLC-CITY® y enviado desde Italia

Aceptamos muchos métodos de pago: Transferencia bancaria (SEPA, ACH), Tarjetas de débito/ crédito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, enlace por Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay Deal, Przelewy24, WhateCPay.
Más información sobre nuestros métodos de pago

Este producto está cubierto por una garantía 12 Meses válida para defectos de fabricación o mal funcionamiento. La garantía no cubre los daños causados por un uso inadecuado o daños accidentales.
Más información sobre nuestra garantía

Las devoluciones están sujetas a autorización previa y se reembolsarán con un crédito en tienda. Se excluyen los artículos en backorder.

Ver nuestra política de devoluciones

Disponible bajo petición

Obtenga su presupuesto personalizado ahora

Un representante de ventas dedicado le ayudará a ofrecer el mejor precio y plazos de entrega.

Debes estar registrado

Solicite su servicio técnico personalizado

Confíe en nuestro equipo técnico experto para una gama de servicios personalizados: reparación, programación, mantenimiento y mucho más.

Información del producto

Descripción

Datasheet excerpt: Technical data of  OHV2000-F221-B15 Product Description Handheld with Bluetooth for reading laser-engraved, etched, or printed 1-D and 2-D codes General specifications Light typeIntegrated LED lightning (red) Readable codes1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Stacked 1-D Codes: GS1 Composite, MicroPDF, PDF417 2-D Codes: Aztec Code, Code 49, Codablock F, Data Matrix, Han Xin, MaxiCode, Micro QR, QR Code Postal Codes: Australian Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Postnet, UK Royal Mail, UPU ID-tags Read distance40 ... 310 mm depending on the code type Reading fieldmax. 190 mm x 290 mm Modul sizemin. 0.1 mm Ambient light limit96890 Lux Target velocityStop Nominal ratings Camera TypeCMOS Number of pixels1280 x 960 Image recordingreal-time , manually triggered Indicators/operating means Function indicator3 LEDs Key3 programmable function keys Electrical specifications Supplyfrom Li-Ion battery Interface Physical Bluetooth (Class II) , USB 2.0         Transmitter frequency2402 ... 2480 MHz (Bluetooth) Transmitter radiated power0.002 W Compliance with standards and directives Standard conformity Electromagnetic compatibilityETSI EN 301489-1:V1.9.2ETSI EN 301489-17:V2.2.1 EN 61000-6-1:2007EN 61000-6-2:2005/AC:2005EN 61000-6-3:2007/A1:2011/AC:2012EN 61000-6-4:2007/A1:2011 SafetyEN 60950-1:2006/A11:2009/A1:2010/A12:2011/AC:2011EN 62311:2008 Radio spectrumETSI EN 300328:V1.8.1 StandardsEN 50581:2012 Approvals and certificates FCC approvalFCC ID: QQ6-BTR11 Ambient conditions Ambient temperature-20 ... 55 °C (-4 ... 131 °F) Storage temperature-30 ... 65 °C (-22 ... 149 °F) Relative humidity5 ... 95 % non-condensing Shock and impact resistanceWithstands multible drops from 1.8 m / 6 ft onto a concrete surface Mechanical specifications Degree of protectionIP65 Material Housingplastic Mass219 g (incl. battery) Dimensions130 mm x 51 mm x 135 mm (l x w x h) General information Scope of deliveryHandheld reader + Lithium ion battery, 1300 mAh Classifications SystemClasscode ECLASS 11.027280101 ECLASS 10.0.127280101 ECLASS 9.027280101 ECLASS 8.027280101 ECLASS 5.127280101 ETIM 8.0EC002999 ETIM 7.0EC002999 ETIM 6.0EC002999 ETIM 5.0EC002999 UNSPSC 12.143211701 Datasheet excerpt: Technical data of  OHV2000-F221-B15 Product Description Handheld with Bluetooth for reading laser-engraved, etched, or printed 1-D and 2-D codes General specifications Light typeIntegrated LED lightning (red) Readable codes1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Stacked 1-D Codes: GS1 Composite, MicroPDF, PDF417 2-D Codes: Aztec Code, Code 49, Codablock F, Data Matrix, Han Xin, MaxiCode, Micro QR, QR Code Postal Codes: Australian Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Postnet, UK Royal Mail, UPU ID-tags Read distance40 ... 310 mm depending on the code type Reading fieldmax. 190 mm x 290 mm Modul sizemin. 0.1 mm Ambient light limit96890 Lux Target velocityStop Nominal ratings Camera TypeCMOS Number of pixels1280 x 960 Image recordingreal-time , manually triggered Indicators/operating means Function indicator3 LEDs Key3 programmable function keys Electrical specifications Supplyfrom Li-Ion battery Interface Physical Bluetooth (Class II) , USB 2.0         Transmitter frequency2402 ... 2480 MHz (Bluetooth) Transmitter radiated power0.002 W Compliance with standards and directives Standard conformity Electromagnetic compatibilityETSI EN 301489-1:V1.9.2ETSI EN 301489-17:V2.2.1 EN 61000-6-1:2007EN 61000-6-2:2005/AC:2005EN 61000-6-3:2007/A1:2011/AC:2012EN 61000-6-4:2007/A1:2011 SafetyEN 60950-1:2006/A11:2009/A1:2010/A12:2011/AC:2011EN 62311:2008 Radio spectrumETSI EN 300328:V1.8.1 StandardsEN 50581:2012 Approvals and certificates FCC approvalFCC ID: QQ6-BTR11 Ambient conditions Ambient temperature-20 ... 55 °C (-4 ... 131 °F) Storage temperature-30 ... 65 °C (-22 ... 149 °F) Relative humidity5 ... 95 % non-condensing Shock and impact resistanceWithstands multible drops from 1.8 m / 6 ft onto a concrete surface Mechanical specifications Degree of protectionIP65 Material Housingplastic Mass219 g (incl. battery) Dimensions130 mm x 51 mm x 135 mm (l x w x h) General information Scope of deliveryHandheld reader + Lithium ion battery, 1300 mAh Classifications SystemClasscode ECLASS 11.027280101 ECLASS 10.0.127280101 ECLASS 9.027280101 ECLASS 8.027280101 ECLASS 5.127280101 ETIM 8.0EC002999 ETIM 7.0EC002999 ETIM 6.0EC002999 ETIM 5.0EC002999 UNSPSC 12.143211701
