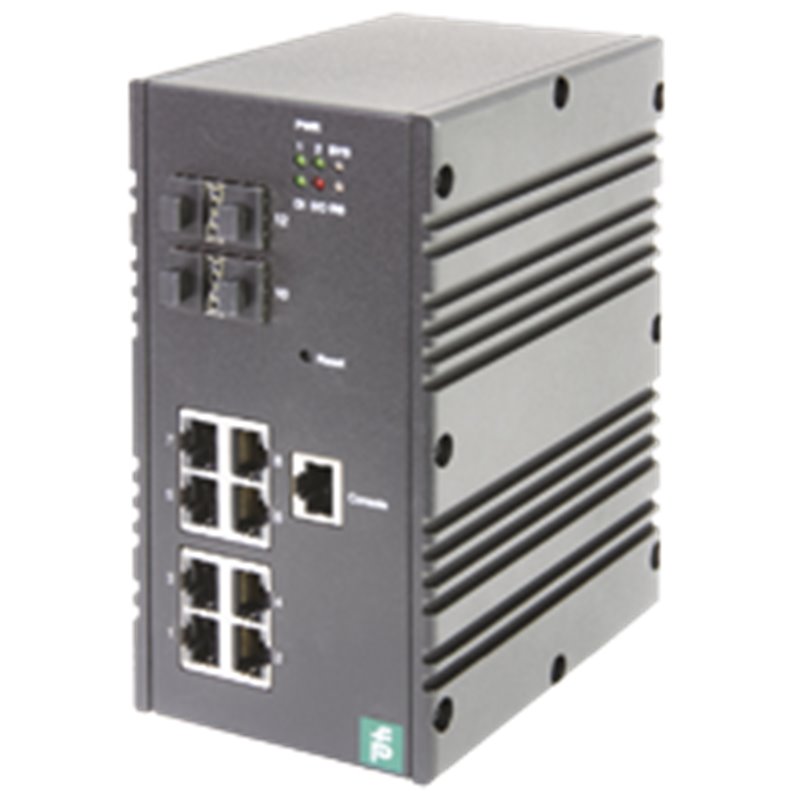

ICRL-M-8RJ45/4SFP-G-DIN PEPPERL+FUCHS - Part number: 70114058

Datasheet excerpt: Technical data of  ICRL-M-8RJ45/4SFP-G-DIN Product Description Ethernet managed gigabit switch with 8 RJ45 and 4 SFP ports General specifications UL File NumberE185778 Functional safety related parameters MTBF69 years Ethernet Interface Connection typeRJ45 , SFP Auto-MDI(-X)yes Autonegotiationyes Ethernet InterfaceIndustrial Ethernet Transfer rate8 - 10BASE-T, 100BASE-TX, 1000BASE-T, 4 - SFP 100/1000 Mbps ManagementIPv4, IPv6, Console, HTTP, HTTPS, PortVision DX, SFTP, SNMP (v1, v2c, and v3), SSH, Telnet, TFTP MIBMIB-II, Bridge MIB, Ethernet-like-MIB, VLAN MIB, IGMP MIB, Private MIB MonitoringLLDP, Port Mirroring, RMON MulticastIGMP Query, IGMP Snooping, GMRP Network performanceCFM, Jumbo Frames, QoS, CoSQueue Mapping, DSCP Priority Mapping Network redundancySTP, RSTP, MSTP, ERPS, Redundant Ring, LACP, Static Port Aggregation Network servicesDHCP Server (with Option 82), NTP, IEEE 1588 PTPv2 over UDP/IP NotificationsE-Mail, Fault Relay, SNMP Traps, Syslog SafetyRADIUS, TACACS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, MAC-Based Port Security Traffic filteringStorm Control (Broadcast, Multicast, and DLF), Rate Control, VLAN, Private VLAN, QinQTunneling, GVRP, IP Filtering, MAC Filtering, ARP Filtering Cable typeCategory 5e or better Switch properties Hardware watchdog timer10 s reset timer MAC address table size16K Operating modeStore and forward Packet buffer size1.5M Bytes shared memory for packet buffer with intelligent memory management unit for burst data traffic Priority queues8 VLAN entriesIEEE 802.1Q Tag VLAN with 256 VLAN Entries and provides 2K GVRP entries; 3 VLAN link modes- Trunk mode, Hybrid mode and Link access mode SFP support100BASE-FX Fiber, 1000BASE-SX/LX/LHX/XD/ZX Standards IEEE 802.3 10BASE-Tyes IEEE 802.3u 100BASE-TXyes IEEE 802.3x Flow Control and Back-pressureyes IEEE 802.1p Class of Service (CoS)yes IEEE 802.3ab 1000BASE-Tyes IEEE 802.1AB Link Layer Discovery Protocol (LLDP)yes IEEE 802.1Q VLAN and GVRPyes IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)yes IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)yes IEEE 802.3ad Link Aggregation Protocol (LACP)yes IEEE802.1ad QinQ Tunnelingyes IEEE 802.1x Port Based Network Access Protocolyes ITU-T G.8032 ERPSyes Indicators/operating means LED indicationsee manual Electrical specifications Rated operating voltage10 ... 36 V DC General informationRedundant power, digital output (relay output) rating 0.5A Max. @ 24V DC, Digital input Nominal voltage24 V DC Inputs/Outputs Number/Type8 x RJ45 , 4 x SFP Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 61000-6-2, IEC 61000-6-2 , EN 61000-6-4, IEC 61000-6-4 Standard conformity Electrical safetyCSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950 Emitted interferenceCISPR 22 , FCC Part 15 Subpart B Class A , EN61000-6-4, IEC61000-6-4 Noise immunityEN61000-6-2, IEC61000-6-2 Ambient conditions Ambient temperature-40 ... 75 °C (-40 ... 167 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Relative humiditymax. 95 % Altitude0 ... 3048 m Mechanical specifications Housing length127 mm Housing width84 mm Housing height160 mm Degree of protectionIP30 ConnectionPower Supply Terminal Block (4-pin) Ethernet 8 x RJ45 , 4 x SFP Material Housingaluminium, black Mass1460 g Construction typeCabinet module MountingDIN rail or direct panel mounting Classifications SystemClasscode ECLASS 11.027242608 ECLASS 10.0.127242608 ECLASS 9.027242608 ECLASS 8.027242608 ECLASS 5.127242608 ETIM 8.0EC001597 ETIM 7.0EC001597 ETIM 6.0EC001597 ETIM 5.0EC001597 UNSPSC 12.132151705 Datasheet excerpt: Technical data of  ICRL-M-8RJ45/4SFP-G-DIN Product Description Ethernet managed gigabit switch with 8 RJ45 and 4 SFP ports General specifications UL File NumberE185778 Functional safety related parameters MTBF69 years Ethernet Interface Connection typeRJ45 , SFP Auto-MDI(-X)yes Autonegotiationyes Ethernet InterfaceIndustrial Ethernet Transfer rate8 - 10BASE-T, 100BASE-TX, 1000BASE-T, 4 - SFP 100/1000 Mbps ManagementIPv4, IPv6, Console, HTTP, HTTPS, PortVision DX, SFTP, SNMP (v1, v2c, and v3), SSH, Telnet, TFTP MIBMIB-II, Bridge MIB, Ethernet-like-MIB, VLAN MIB, IGMP MIB, Private MIB MonitoringLLDP, Port Mirroring, RMON MulticastIGMP Query, IGMP Snooping, GMRP Network performanceCFM, Jumbo Frames, QoS, CoSQueue Mapping, DSCP Priority Mapping Network redundancySTP, RSTP, MSTP, ERPS, Redundant Ring, LACP, Static Port Aggregation Network servicesDHCP Server (with Option 82), NTP, IEEE 1588 PTPv2 over UDP/IP NotificationsE-Mail, Fault Relay, SNMP Traps, Syslog SafetyRADIUS, TACACS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, MAC-Based Port Security Traffic filteringStorm Control (Broadcast, Multicast, and DLF), Rate Control, VLAN, Private VLAN, QinQTunneling, GVRP, IP Filtering, MAC Filtering, ARP Filtering Cable typeCategory 5e or better Switch properties Hardware watchdog timer10 s reset timer MAC address table size16K Operating modeStore and forward Packet buffer size1.5M Bytes shared memory for packet buffer with intelligent memory management unit for burst data traffic Priority queues8 VLAN entriesIEEE 802.1Q Tag VLAN with 256 VLAN Entries and provides 2K GVRP entries; 3 VLAN link modes- Trunk mode, Hybrid mode and Link access mode SFP support100BASE-FX Fiber, 1000BASE-SX/LX/LHX/XD/ZX Standards IEEE 802.3 10BASE-Tyes IEEE 802.3u 100BASE-TXyes IEEE 802.3x Flow Control and Back-pressureyes IEEE 802.1p Class of Service (CoS)yes IEEE 802.3ab 1000BASE-Tyes IEEE 802.1AB Link Layer Discovery Protocol (LLDP)yes IEEE 802.1Q VLAN and GVRPyes IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)yes IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)yes IEEE 802.3ad Link Aggregation Protocol (LACP)yes IEEE802.1ad QinQ Tunnelingyes IEEE 802.1x Port Based Network Access Protocolyes ITU-T G.8032 ERPSyes Indicators/operating means LED indicationsee manual Electrical specifications Rated operating voltage10 ... 36 V DC General informationRedundant power, digital output (relay output) rating 0.5A Max. @ 24V DC, Digital input Nominal voltage24 V DC Inputs/Outputs Number/Type8 x RJ45 , 4 x SFP Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 61000-6-2, IEC 61000-6-2 , EN 61000-6-4, IEC 61000-6-4 Standard conformity Electrical safetyCSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950 Emitted interferenceCISPR 22 , FCC Part 15 Subpart B Class A , EN61000-6-4, IEC61000-6-4 Noise immunityEN61000-6-2, IEC61000-6-2 Ambient conditions Ambient temperature-40 ... 75 °C (-40 ... 167 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Relative humiditymax. 95 % Altitude0 ... 3048 m Mechanical specifications Housing length127 mm Housing width84 mm Housing height160 mm Degree of protectionIP30 ConnectionPower Supply Terminal Block (4-pin) Ethernet 8 x RJ45 , 4 x SFP Material Housingaluminium, black Mass1460 g Construction typeCabinet module MountingDIN rail or direct panel mounting Classifications SystemClasscode ECLASS 11.027242608 ECLASS 10.0.127242608 ECLASS 9.027242608 ECLASS 8.027242608 ECLASS 5.127242608 ETIM 8.0EC001597 ETIM 7.0EC001597 ETIM 6.0EC001597 ETIM 5.0EC001597 UNSPSC 12.132151705
