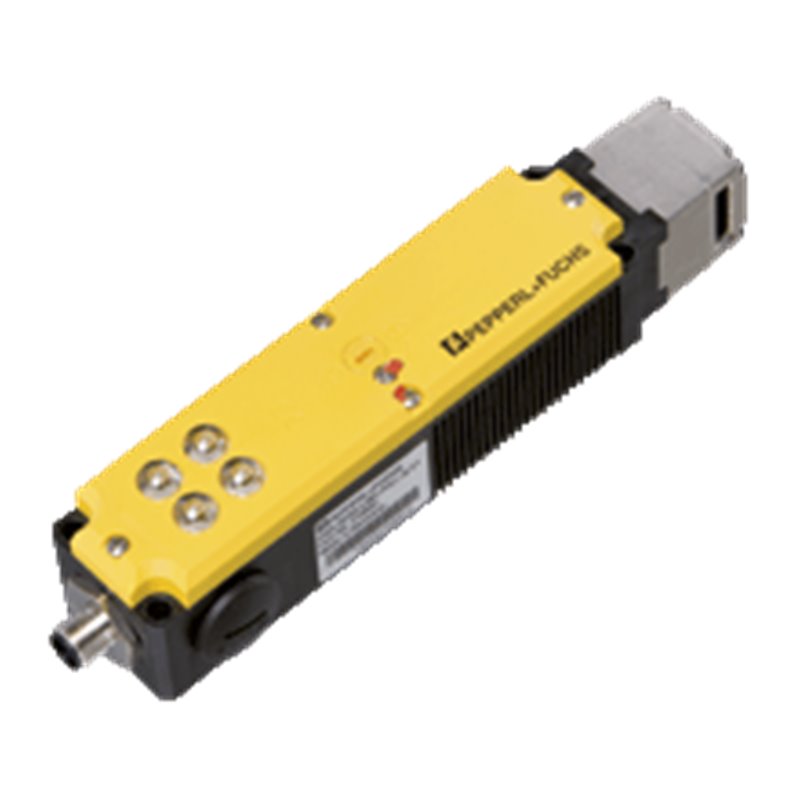

VAA-2E3A-LIM1-PL-L-S-V1 PEPPERL+FUCHS - Part number: 210504

Datasheet excerpt: Technical data of  VAA-2E3A-LIM1-PL-L-S-V1 Product Description AS-Interface safety switch with guard locking and guard locking monitoring General specifications Node typeSafety node AS-Interface specificationV3.0 Required gateway specification≥ V2.0 ProfileS-7.B IO code7 ID codeB ID1 codeF ID2 codeE guard-locking modeworking current UL File NumberE179102 Functional safety related parameters Performance level (PL)PL d B10d5 E+6 Indicators/operating means LED FAULTerror display; LED redred: communication error LED POWERAS-Interface voltage; LED green Electrical specifications Auxiliary voltageGuard locking magnet: 24 V DC +10/-15 % PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 45 mA Rated insulation voltage50 V Input Number/Type2 safety-related inputs:1 door-monitoring contact SK 1 Magnet-monitoring contact MC Supplyfrom AS-Interface Output Number/Type1 guard locking magnet,1 LED red, 1 LED green Supplyfrom external auxiliary voltage (in accordance with IEC 60742, PELV) Current300 mA Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013+A1:2019 Standard conformity Degree of protectionEN 60529:2000 AS-InterfaceEN 62026-2:2013+A1:2019 Functional safetyDIN EN 954-1, EN ISO 13849-1 (up to PLd) Ambient conditions Ambient temperature-20 ... 55 °C (-4 ... 131 °F) Mechanical specifications Housing length190 mm Housing width40 mm Housing height42 mm approach speedmax. 20 m/min Operating force35 N Extraction force30 N (not interlocked) retention force20 N locking forcemax. 2500 N 2000 N , FZh as per inspection policy GS-ET-19 insertion depth approach direction lateraldetected min. distance: 24.5 mm permissible caster: 5 mm approach direction from abovedetected min. distance: 24.5 mm permissible caster: 5 mm Degree of protectionIP67 Connectionconnector M12 x 1 Material HousingFiberglass-reinforced thermoplastic actuating headmetal camstainless steel Mass0.5 kg Life span106 switching cycles Classifications SystemClasscode ECLASS 11.027272603 ECLASS 10.0.127272603 ECLASS 9.027272603 ECLASS 8.027272603 ECLASS 5.127272603 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535 Datasheet excerpt: Technical data of  VAA-2E3A-LIM1-PL-L-S-V1 Product Description AS-Interface safety switch with guard locking and guard locking monitoring General specifications Node typeSafety node AS-Interface specificationV3.0 Required gateway specification≥ V2.0 ProfileS-7.B IO code7 ID codeB ID1 codeF ID2 codeE guard-locking modeworking current UL File NumberE179102 Functional safety related parameters Performance level (PL)PL d B10d5 E+6 Indicators/operating means LED FAULTerror display; LED redred: communication error LED POWERAS-Interface voltage; LED green Electrical specifications Auxiliary voltageGuard locking magnet: 24 V DC +10/-15 % PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 45 mA Rated insulation voltage50 V Input Number/Type2 safety-related inputs:1 door-monitoring contact SK 1 Magnet-monitoring contact MC Supplyfrom AS-Interface Output Number/Type1 guard locking magnet,1 LED red, 1 LED green Supplyfrom external auxiliary voltage (in accordance with IEC 60742, PELV) Current300 mA Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013+A1:2019 Standard conformity Degree of protectionEN 60529:2000 AS-InterfaceEN 62026-2:2013+A1:2019 Functional safetyDIN EN 954-1, EN ISO 13849-1 (up to PLd) Ambient conditions Ambient temperature-20 ... 55 °C (-4 ... 131 °F) Mechanical specifications Housing length190 mm Housing width40 mm Housing height42 mm approach speedmax. 20 m/min Operating force35 N Extraction force30 N (not interlocked) retention force20 N locking forcemax. 2500 N 2000 N , FZh as per inspection policy GS-ET-19 insertion depth approach direction lateraldetected min. distance: 24.5 mm permissible caster: 5 mm approach direction from abovedetected min. distance: 24.5 mm permissible caster: 5 mm Degree of protectionIP67 Connectionconnector M12 x 1 Material HousingFiberglass-reinforced thermoplastic actuating headmetal camstainless steel Mass0.5 kg Life span106 switching cycles Classifications SystemClasscode ECLASS 11.027272603 ECLASS 10.0.127272603 ECLASS 9.027272603 ECLASS 8.027272603 ECLASS 5.127272603 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535
