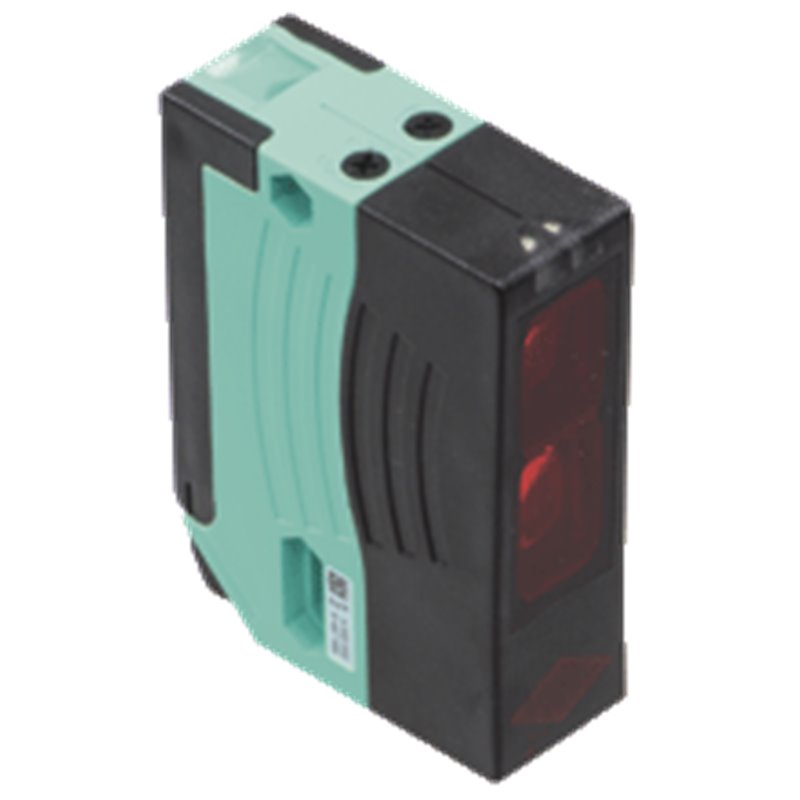

RLK28-8-H-700-RT-Z/31/116 PEPPERL+FUCHS - Part number: 134135

Datasheet excerpt: Technical data of  RLK28-8-H-700-RT-Z/31/116 Product Description Background suppression sensor General specifications Detection range20 ... 700 mm Detection range min.20 ... 200 mm Detection range max.20 ... 700 mm Adjustment range200 ... 700 mm Background suppressionmax. + 10 % of the upper limit of the detection range Light sourceLED Light typemodulated visible red light , 660 nm Black-white difference (6 %/90 %)< 20 % Diameter of the light spot15 mm at a distance of 700 mm Opening angleEmitter 1.2°,Receiver 2° Ambient light limit50000 Lux Functional safety related parameters MTTFd620 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green Function indicator2 LEDs yellowON: object inside the scanning rangeOFF: object outside the scanning range Control elementsSensing range adjuster , Light-on/dark-on changeover switch Electrical specifications Operating voltage12 ... 240 V AC/DC Power consumption≤ 3.5 VA Output Switching typelight/dark on, switchable (selectable, light/dark switching is only activated if the receiver has 'dark on' selected.) Signal outputRelay, 1 alternator Switching voltagemax. 250 V AC/DC Switching currentmax. 2 A Switching powerDC: max. 50 W AC: max. 500 VA Switching frequency25 Hz Response time20 ms Timer functionON delay (GAN), OFF delay (GAB), one shot (IAB), ON delay-one shot (GAN-IAB), ON delay-OFF delay (GAN-GAB), programmableadjustment interval 0.1 ... 10 s Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit insulated from control circuit in accordance with IEC 61140.Caution!The protection class 2 is only valid when the terminal compartment is closed. UL approvalE87056 , cULus Listed Caution: This equipment is considered as open-type equipment. It must be mounted within an enclosure, that is suitably designed for protection against internal fire and personal injury resulting from accessibility to live parts according UL 508. CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Housing width25.8 mm Housing height88 mm Housing depth65.5 mm Degree of protectionIP67 Connectionterminal compartment with 8 spring-loaded terminals for wire cross section 0.5 ... 1.5 mm2, insulation stripping 7.5 ... 8.5 mm, M16 x 1.5 cable gland Material HousingPlastic ABS Optical facePlastic pane Mass112 g Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  RLK28-8-H-700-RT-Z/31/116 Product Description Background suppression sensor General specifications Detection range20 ... 700 mm Detection range min.20 ... 200 mm Detection range max.20 ... 700 mm Adjustment range200 ... 700 mm Background suppressionmax. + 10 % of the upper limit of the detection range Light sourceLED Light typemodulated visible red light , 660 nm Black-white difference (6 %/90 %)< 20 % Diameter of the light spot15 mm at a distance of 700 mm Opening angleEmitter 1.2°,Receiver 2° Ambient light limit50000 Lux Functional safety related parameters MTTFd620 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green Function indicator2 LEDs yellowON: object inside the scanning rangeOFF: object outside the scanning range Control elementsSensing range adjuster , Light-on/dark-on changeover switch Electrical specifications Operating voltage12 ... 240 V AC/DC Power consumption≤ 3.5 VA Output Switching typelight/dark on, switchable (selectable, light/dark switching is only activated if the receiver has 'dark on' selected.) Signal outputRelay, 1 alternator Switching voltagemax. 250 V AC/DC Switching currentmax. 2 A Switching powerDC: max. 50 W AC: max. 500 VA Switching frequency25 Hz Response time20 ms Timer functionON delay (GAN), OFF delay (GAB), one shot (IAB), ON delay-one shot (GAN-IAB), ON delay-OFF delay (GAN-GAB), programmableadjustment interval 0.1 ... 10 s Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit insulated from control circuit in accordance with IEC 61140.Caution!The protection class 2 is only valid when the terminal compartment is closed. UL approvalE87056 , cULus Listed Caution: This equipment is considered as open-type equipment. It must be mounted within an enclosure, that is suitably designed for protection against internal fire and personal injury resulting from accessibility to live parts according UL 508. CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Housing width25.8 mm Housing height88 mm Housing depth65.5 mm Degree of protectionIP67 Connectionterminal compartment with 8 spring-loaded terminals for wire cross section 0.5 ... 1.5 mm2, insulation stripping 7.5 ... 8.5 mm, M16 x 1.5 cable gland Material HousingPlastic ABS Optical facePlastic pane Mass112 g Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528
