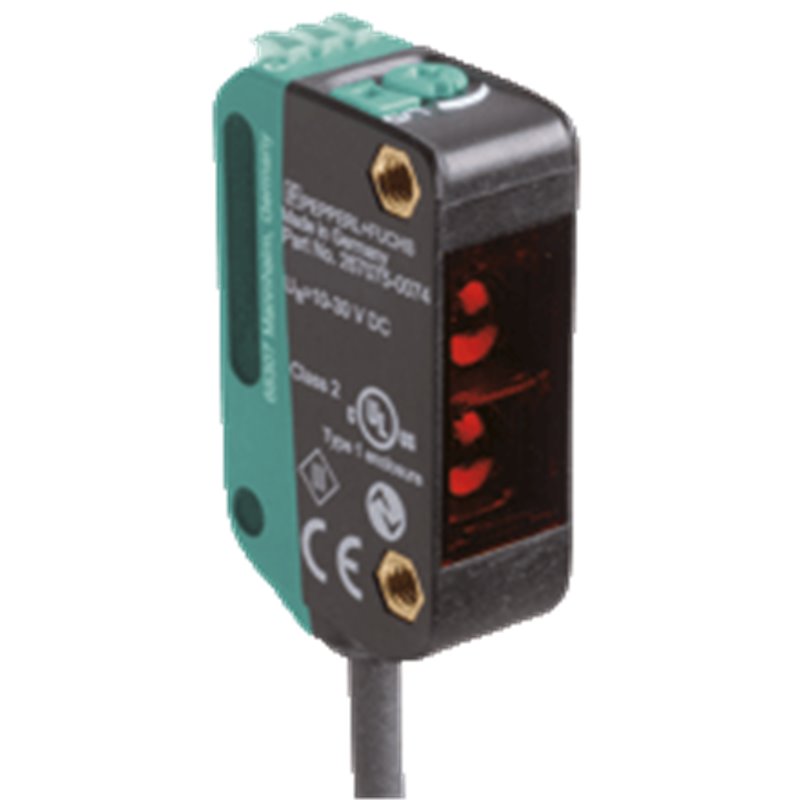

OBR7500-R100-E5F-IO PEPPERL+FUCHS - Part number: 267075-100491

Datasheet excerpt: Technical data of  OBR7500-R100-E5F-IO Product Description Retroreflective sensor with polarization filter General specifications Effective detection range0 ... 7.5 m Reflector distance0.03 ... 7.5 m Threshold detection range10 m Reference targetH85-2 reflector Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Polarization filteryes Diameter of the light spot65 mm at a distance of 1 m Opening angle3.7 ° Ambient light limitEN 60947-5-2 Functional safety related parameters MTTFd724 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorYellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Control elementsLight-on/dark-on changeover switch Control elementssensitivity adjustment Parameterization indicatorIO link communication: green LED goes out briefly (1 Hz) Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link revision1.1 Device ID0x110212 (1114642) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input 2 BitProcess data output 2 Bit SIO mode supportyes Compatible master port typeA Output Pre-fault indication output1 PNP, inactive when level falls below function reserve after 5 s.Immediately inactive if the beam is interrupted 4 times during the flashtime. Switching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - BK: PNP normally open / dark-on, IO-Link Alarm output - WH: PNP normally closed Signal output1 PNP, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) , fixed cable -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height37.1 mm Housing depth21.5 mm Degree of protectionIP67 / IP69 / IP69K Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA Mass36 g Cable length2 m Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBR7500-R100-E5F-IO Product Description Retroreflective sensor with polarization filter General specifications Effective detection range0 ... 7.5 m Reflector distance0.03 ... 7.5 m Threshold detection range10 m Reference targetH85-2 reflector Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Polarization filteryes Diameter of the light spot65 mm at a distance of 1 m Opening angle3.7 ° Ambient light limitEN 60947-5-2 Functional safety related parameters MTTFd724 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorYellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Control elementsLight-on/dark-on changeover switch Control elementssensitivity adjustment Parameterization indicatorIO link communication: green LED goes out briefly (1 Hz) Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link revision1.1 Device ID0x110212 (1114642) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input 2 BitProcess data output 2 Bit SIO mode supportyes Compatible master port typeA Output Pre-fault indication output1 PNP, inactive when level falls below function reserve after 5 s.Immediately inactive if the beam is interrupted 4 times during the flashtime. Switching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - BK: PNP normally open / dark-on, IO-Link Alarm output - WH: PNP normally closed Signal output1 PNP, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) , fixed cable -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height37.1 mm Housing depth21.5 mm Degree of protectionIP67 / IP69 / IP69K Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA Mass36 g Cable length2 m Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528
