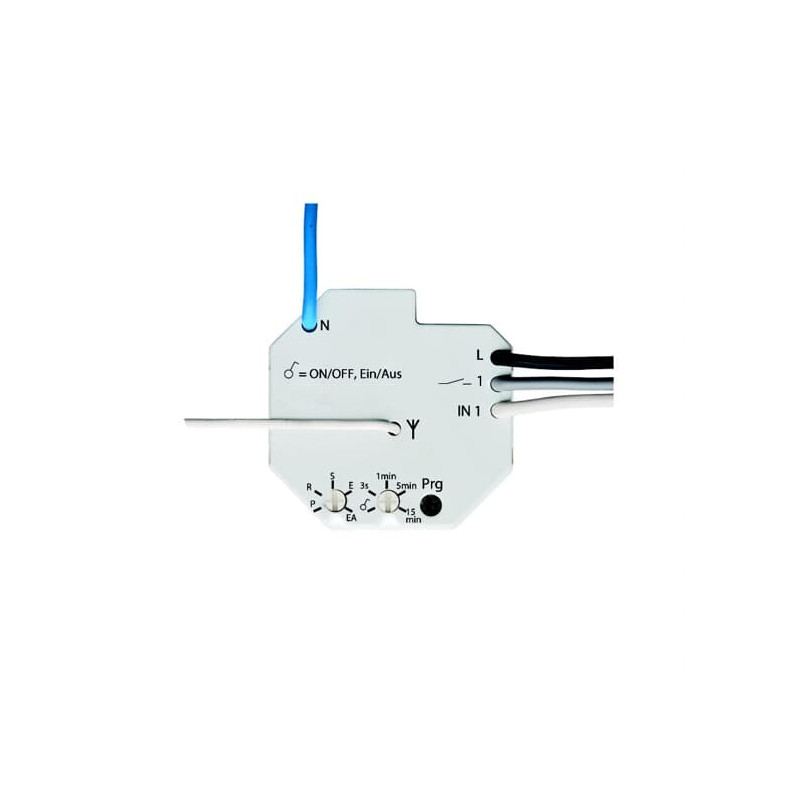

2CLA813040A1102 ABB 6700-0-0040

Rated voltage: 230 Vac ± 10% / 50-60 Hz For wireless switching of electrical loads. 2 functions: ON/OFF switch or time delayed switch. For wall mounted transmitter code: 8531.1 &8531.2. Switch-off delay: 3 sec. / 1 min. / 5 min. / 15 min. Repeater function can be activated for extended range. For universal attachment or installation. 3 wire connection (neutral conductor required). With auxiliary input for push-buttons code: 8104.X. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m. Control element: adjustable potentiometer Display elements: status indication of output via LED. Outputs: 1x Normally Open or Normally closed contact, 230 Vac Rated power: - Incandescent, halogen, electronic transformer and ferromagnetic transformers: 2.300 W/VA - Fluorescent load: 1.000 VA Temperature range (Device): -5 °C to 45 °C Dimensions: (L x W x D): 47 mm x 48 mm x 22 mm Rated voltage: 230 Vac ± 10% / 50-60 Hz For wireless switching of electrical loads. 2 functions: ON/OFF switch or time delayed switch. For wall mounted transmitter code: 8531.1 &8531.2. Switch-off delay: 3 sec. / 1 min. / 5 min. / 15 min. Repeater function can be activated for extended range. For universal attachment or installation. 3 wire connection (neutral conductor required). With auxiliary input for push-buttons code: 8104.X. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m. Control element: adjustable potentiometer Display elements: status indication of output via LED. Outputs: 1x Normally Open or Normally closed contact, 230 Vac Rated power: - Incandescent, halogen, electronic transformer and ferromagnetic transformers: 2.300 W/VA - Fluorescent load: 1.000 VA Temperature range (Device): -5 °C to 45 °C Dimensions: (L x W x D): 47 mm x 48 mm x 22 mm
