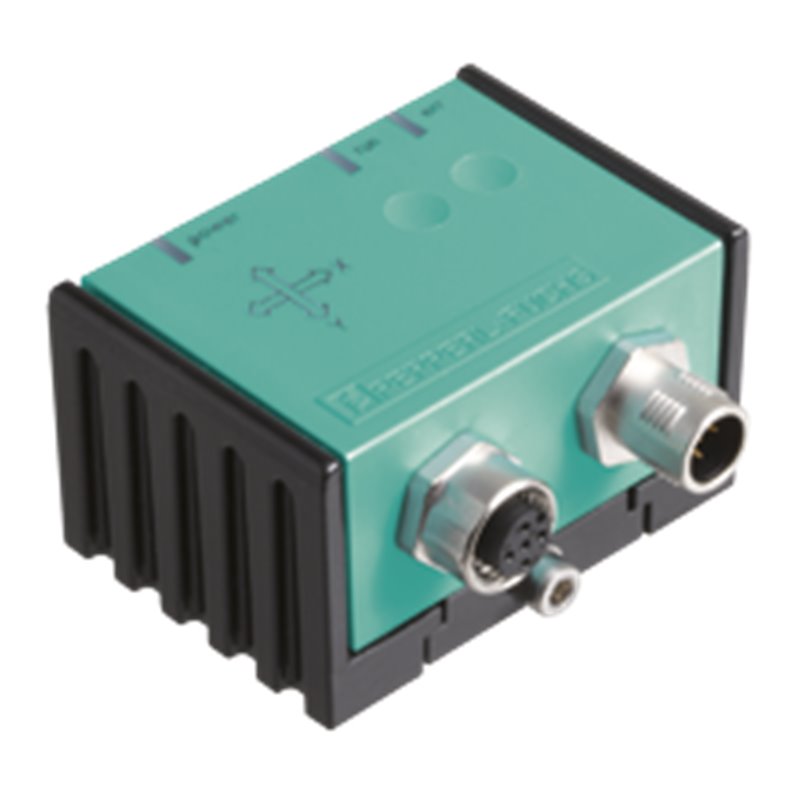

INY120D-F99-B20-V15 PEPPERL+FUCHS - Part number: 255236

Datasheet excerpt: Technical data of  INY120D-F99-B20-V15 General specifications TypeInclination sensor, 2-axis Measurement range-60 ... 60 ° Absolute accuracy≤ ± 0.5 ° Response delay≤ 25 ms Resolution≤ 0.1 ° Repeat accuracy≤ ± 0.1 ° Temperature influence≤ 0.027 °/K Functional safety related parameters MTTFd650 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED, green Status indicatorLED, yellow Error indicatorLED, red Electrical specifications Operating voltage5 ... 30 V DC No-load supply current≤ 100 mA Power consumption≤ 0.7 W Interface Interface typeJ1939 Data output codebinary code Transfer rate10 ... 1000 kBit/s , programmable Node ID0 ... 253 , programmable Terminationexternal Cycle timeprogrammable SLOT Range-60 ... 60 ° SLOT Offset180 ° Compliance with standards and directives Standard conformity Shock and impact resistance100 g according to DIN EN 60068-2-27 StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source E1 Type approval10R-04 Ambient conditions Ambient temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection type5-pin, M12 x 1 connector 5-pin, M12 x 1 socket internal bridged Housing materialPA Degree of protectionIP68 / IP69K Mass240 g Factory settings Node ID128 Transfer rate250 kBit/s Classifications SystemClasscode ECLASS 11.027271101 ECLASS 10.0.127271101 ECLASS 9.027271190 ECLASS 8.027270790 ECLASS 5.127270790 ETIM 8.0EC003965 ETIM 7.0EC002544 ETIM 6.0EC002544 ETIM 5.0EC002544 UNSPSC 12.141114624 Datasheet excerpt: Technical data of  INY120D-F99-B20-V15 General specifications TypeInclination sensor, 2-axis Measurement range-60 ... 60 ° Absolute accuracy≤ ± 0.5 ° Response delay≤ 25 ms Resolution≤ 0.1 ° Repeat accuracy≤ ± 0.1 ° Temperature influence≤ 0.027 °/K Functional safety related parameters MTTFd650 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED, green Status indicatorLED, yellow Error indicatorLED, red Electrical specifications Operating voltage5 ... 30 V DC No-load supply current≤ 100 mA Power consumption≤ 0.7 W Interface Interface typeJ1939 Data output codebinary code Transfer rate10 ... 1000 kBit/s , programmable Node ID0 ... 253 , programmable Terminationexternal Cycle timeprogrammable SLOT Range-60 ... 60 ° SLOT Offset180 ° Compliance with standards and directives Standard conformity Shock and impact resistance100 g according to DIN EN 60068-2-27 StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source E1 Type approval10R-04 Ambient conditions Ambient temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection type5-pin, M12 x 1 connector 5-pin, M12 x 1 socket internal bridged Housing materialPA Degree of protectionIP68 / IP69K Mass240 g Factory settings Node ID128 Transfer rate250 kBit/s Classifications SystemClasscode ECLASS 11.027271101 ECLASS 10.0.127271101 ECLASS 9.027271190 ECLASS 8.027270790 ECLASS 5.127270790 ETIM 8.0EC003965 ETIM 7.0EC002544 ETIM 6.0EC002544 ETIM 5.0EC002544 UNSPSC 12.141114624
