VBA-2E-G4-I PEPPERL+FUCHS - Part number: 112311
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

VBA-2E-G4-I PEPPERL+FUCHS - Part number: 112311

PEPPERL+FUCHS

confronta
VBA-2E-G4-I PEPPERL+FUCHS - Part number: 112311

AS-Interface analog module VBA-2E-G4-I VBA-2E-G4-I Degree of protection IP65 Flat or round cable connection (via standardized EEMS base, not included with delivery) Cable piercing method for flat cable Function display for bus, external auxiliary voltage and inputs Supply of inputs external or from the module, as required AS-Interface analog module VBA-2E-G4-I VBA-2E-G4-I Degree of protection IP65 Flat or round cable connection (via standardized EEMS base, not included with delivery) Cable piercing method for flat cable Function display for bus, external auxiliary voltage and inputs Supply of inputs external or from the module, as required

MPNs 112311, PEP112311, VBA-2E-G4-I
Codice HS 85371091
Peso 0.35 kg

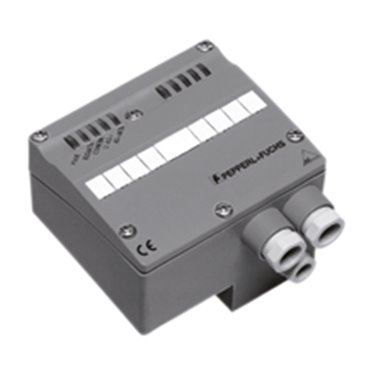

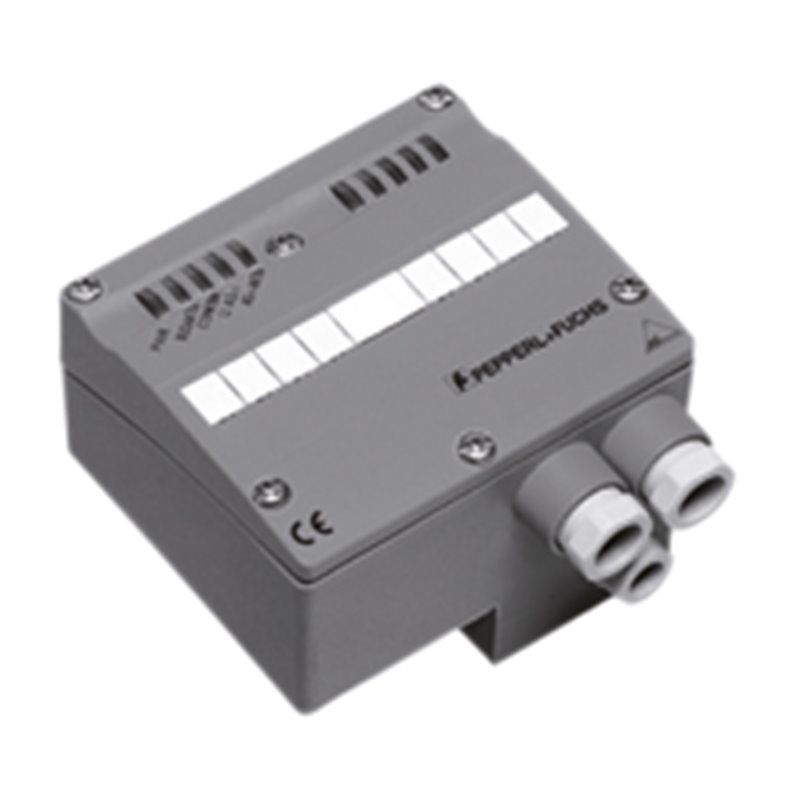

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  VBA-2E-G4-I Product Description G4 module IP652 analog inputs (current) General specifications Node typeStandard node AS-Interface specificationV2.1 Required gateway specification≥ V2.1 UL File NumberE223772 Functional safety related parameters MTTFd160 a at 30 °C Indicators/operating means LED FAULTerror display; LED redred: communication errorred flashing: peripheral error LED PWRAS-Interface voltage; LED green LED ANALOGstatus input signal; LED greenoff: 1 < 1 mA (peripheral error)green: 1 mA ≤ I ≤ 1 23 mAgreen flashing: I > 23 mA (peripheral error) LED AUXext. auxiliary voltage UAUX ; LED green Electrical specifications Auxiliary voltage (output)24 V DC ± 15 % PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 80 mA Protection classIII Input Number/Type2 analog inputs (currrent), 4 ... 20 mA Supplyfrom AS-Interface or from external auxiliary voltage as required UAUX Current loading capacity≤ 200 mA from AS-Interface ≤ 500 mA from external auxiliary voltage UAUX Input resistance50 Ω Resolution16 Bit / 1 µA Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 AS-InterfaceEN 62026-2:2013 Programming instructions ProfileS-7.3.D IO code7 ID code3 ID2 codeD Data bits (function via AS-Interface)The transfer of the data value is based on AS-Interface Profile 7.3. Parameter bits (programmable via AS-i)function P0mains power frequency filterP0=1, 50 Hz filter activeP0=0, 60 Hz filter active P1projecting of the 2nd channelP1=1, channel 2 is projectedP1=0, channel 2 is not projected P2Message of peripheral errorP2=1, peripheral error is reportedP2=0, peripheral error is not reported P3not used Ambient conditions Ambient temperature0 ... 70 °C (32 ... 158 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Degree of protectionIP65 Connectioncable piercing method or terminal compartmentyellow flat cable/black flat cable or standard round cableinputs/outputs: 2 x M16 x 1.5 cable glands and cage tension spring terminals, 1 x M12 x 1.5 cable gland (not used) Material HousingPA 6 GF30 Mass350 g MountingDIN mounting rail Classifications SystemClasscode ECLASS 11.027242601 ECLASS 10.0.127242601 ECLASS 9.027242601 ECLASS 8.027242601 ECLASS 5.127242601 ETIM 8.0EC001596 ETIM 7.0EC001596 ETIM 6.0EC001596 ETIM 5.0EC001596 UNSPSC 12.139121535 Datasheet excerpt: Technical data of  VBA-2E-G4-I Product Description G4 module IP652 analog inputs (current) General specifications Node typeStandard node AS-Interface specificationV2.1 Required gateway specification≥ V2.1 UL File NumberE223772 Functional safety related parameters MTTFd160 a at 30 °C Indicators/operating means LED FAULTerror display; LED redred: communication errorred flashing: peripheral error LED PWRAS-Interface voltage; LED green LED ANALOGstatus input signal; LED greenoff: 1 < 1 mA (peripheral error)green: 1 mA ≤ I ≤ 1 23 mAgreen flashing: I > 23 mA (peripheral error) LED AUXext. auxiliary voltage UAUX ; LED green Electrical specifications Auxiliary voltage (output)24 V DC ± 15 % PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 80 mA Protection classIII Input Number/Type2 analog inputs (currrent), 4 ... 20 mA Supplyfrom AS-Interface or from external auxiliary voltage as required UAUX Current loading capacity≤ 200 mA from AS-Interface ≤ 500 mA from external auxiliary voltage UAUX Input resistance50 Ω Resolution16 Bit / 1 µA Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 AS-InterfaceEN 62026-2:2013 Programming instructions ProfileS-7.3.D IO code7 ID code3 ID2 codeD Data bits (function via AS-Interface)The transfer of the data value is based on AS-Interface Profile 7.3. Parameter bits (programmable via AS-i)function P0mains power frequency filterP0=1, 50 Hz filter activeP0=0, 60 Hz filter active P1projecting of the 2nd channelP1=1, channel 2 is projectedP1=0, channel 2 is not projected P2Message of peripheral errorP2=1, peripheral error is reportedP2=0, peripheral error is not reported P3not used Ambient conditions Ambient temperature0 ... 70 °C (32 ... 158 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Degree of protectionIP65 Connectioncable piercing method or terminal compartmentyellow flat cable/black flat cable or standard round cableinputs/outputs: 2 x M16 x 1.5 cable glands and cage tension spring terminals, 1 x M12 x 1.5 cable gland (not used) Material HousingPA 6 GF30 Mass350 g MountingDIN mounting rail Classifications SystemClasscode ECLASS 11.027242601 ECLASS 10.0.127242601 ECLASS 9.027242601 ECLASS 8.027242601 ECLASS 5.127242601 ETIM 8.0EC001596 ETIM 7.0EC001596 ETIM 6.0EC001596 ETIM 5.0EC001596 UNSPSC 12.139121535
