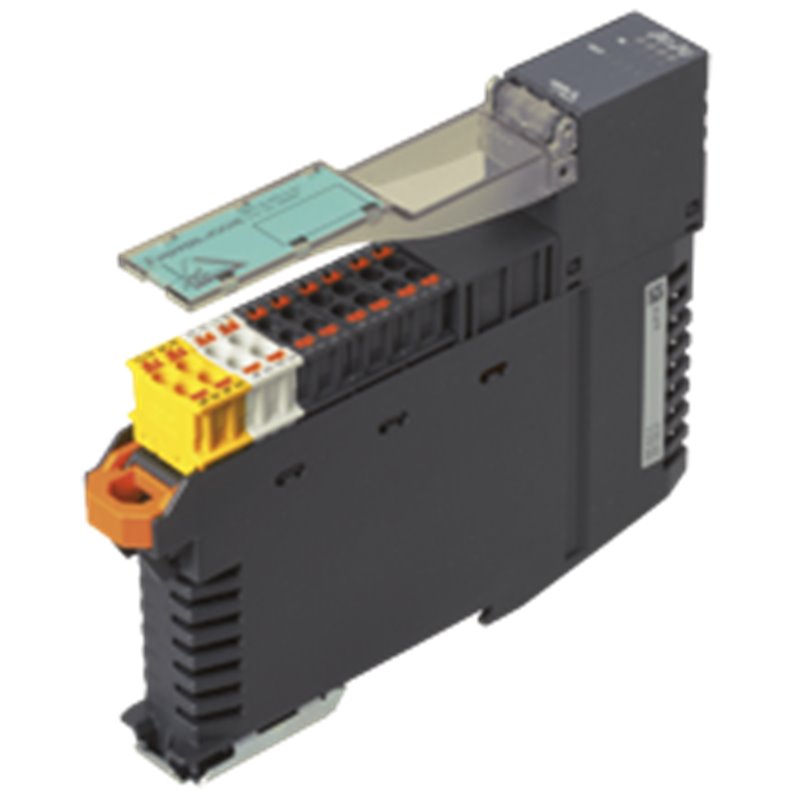

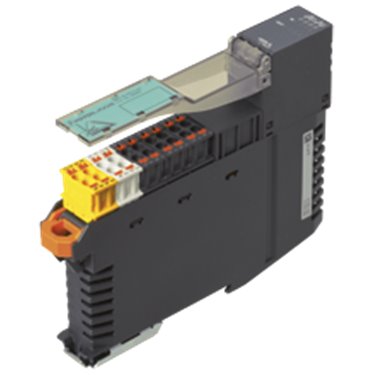

VBA-2A-KE5-IL/UL PEPPERL+FUCHS - Part number: 288593

Datasheet excerpt: Technical data of  VBA-2A-KE5-IL/UL Product Description Switch cabinet moduleTwo analog outputs General specifications Node typeStandard node AS-Interface specificationV3.0 Required master specification≥ V2.1 UL File NumberE223772 MTBF197 a Indicators/operating means LED FAULTFault indication: red LEDRed: communication error or address is 0Red flashing: peripheral fault LED PWRAS-Interface voltage; green LEDGreen: voltage OKFlashing green: address 0 or peripheral error LED AUXext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage LED OUTStatus of output signal; yellow LEDYellow: output value within value rangeContinually on: current mode1.4 s on/0.1 s off: voltage modeFlashing yellow: wire break (at current output) or output value outside of value range Electrical specifications Auxiliary voltage (output)24 V DC ± 15 % PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 75 mA Protection classIII Current consumptionIAUX ≤ 650 mA Surge protectionUAUX, Ue: overvoltage category II, safe isolated power supplies (PELV) Output Number/TypeTwo analog outputsCurrent: 0 mA ... 20 mAVoltage: 0 V ... 10 V SupplyFrom auxiliary voltage UAUX Loadvoltage output: min. 1 kΩ current output: max. 600 Ω Current loading capacity≤ 600 mA (signal current + actuator power supply) from external auxiliary voltage UAUX, overload-proof and short-circuit proof ResolutionVoltage output: 3 mVCurrent output: 6 µA Accuracy0.15 % of full-scale value Temperature influence1 µA/K or 0,3 mV/K Short-circuit currentvoltage output: max. 22 mA Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityEN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 Programming instructions ProfileS-7.3.5 IO code7 ID code3 ID1 codeF ID2 code5 Data bits (function via AS-Interface)The transfer of the data value is based on AS-Interface Profile 7.3. Parameter bits (programmable via AS-i)function P0Watchdog:P0=1 (default), watchdog activeP0=0, watchdog inactive P1Output mode O1:P1=1 (default), current outputP1=0, voltage output P2Indication of peripheral fault:P2=1 (default), peripheral fault is reportedP2=0, peripheral fault is not reported P3Output mode O2:P3=1 (default), current outputP3=0, voltage output Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Relative humidity85 % , noncondensing Climatic conditionsFor indoor use only Altitude≤ 2000 m above MSL Shock and impact resistance15 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks Vibration resistance0.35 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles Pollution degree2 Mechanical specifications Degree of protectionIP20 ConnectionRemovable push-in terminalsrated connection capacity:rigid: 0.20 mm2 ... 1.5 mm2flexible (without wire end ferrule): 0.20 mm2 ... 2.5 mm2flexible (with wire end ferrule): 0.25 mm2 ... 1.5 mm2 Material HousingPA 66-FR Mass110 g MountingDIN mounting rail NoteMax. length of jumpers = 5 cm Classifications SystemClasscode ECLASS 11.027242601 ECLASS 10.0.127242601 ECLASS 9.027242601 ECLASS 8.027242601 ECLASS 5.127242601 ETIM 8.0EC001596 ETIM 7.0EC001596 ETIM 6.0EC001596 ETIM 5.0EC001596 UNSPSC 12.139121535 Datasheet excerpt: Technical data of  VBA-2A-KE5-IL/UL Product Description Switch cabinet moduleTwo analog outputs General specifications Node typeStandard node AS-Interface specificationV3.0 Required master specification≥ V2.1 UL File NumberE223772 MTBF197 a Indicators/operating means LED FAULTFault indication: red LEDRed: communication error or address is 0Red flashing: peripheral fault LED PWRAS-Interface voltage; green LEDGreen: voltage OKFlashing green: address 0 or peripheral error LED AUXext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage LED OUTStatus of output signal; yellow LEDYellow: output value within value rangeContinually on: current mode1.4 s on/0.1 s off: voltage modeFlashing yellow: wire break (at current output) or output value outside of value range Electrical specifications Auxiliary voltage (output)24 V DC ± 15 % PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 75 mA Protection classIII Current consumptionIAUX ≤ 650 mA Surge protectionUAUX, Ue: overvoltage category II, safe isolated power supplies (PELV) Output Number/TypeTwo analog outputsCurrent: 0 mA ... 20 mAVoltage: 0 V ... 10 V SupplyFrom auxiliary voltage UAUX Loadvoltage output: min. 1 kΩ current output: max. 600 Ω Current loading capacity≤ 600 mA (signal current + actuator power supply) from external auxiliary voltage UAUX, overload-proof and short-circuit proof ResolutionVoltage output: 3 mVCurrent output: 6 µA Accuracy0.15 % of full-scale value Temperature influence1 µA/K or 0,3 mV/K Short-circuit currentvoltage output: max. 22 mA Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityEN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 Programming instructions ProfileS-7.3.5 IO code7 ID code3 ID1 codeF ID2 code5 Data bits (function via AS-Interface)The transfer of the data value is based on AS-Interface Profile 7.3. Parameter bits (programmable via AS-i)function P0Watchdog:P0=1 (default), watchdog activeP0=0, watchdog inactive P1Output mode O1:P1=1 (default), current outputP1=0, voltage output P2Indication of peripheral fault:P2=1 (default), peripheral fault is reportedP2=0, peripheral fault is not reported P3Output mode O2:P3=1 (default), current outputP3=0, voltage output Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Relative humidity85 % , noncondensing Climatic conditionsFor indoor use only Altitude≤ 2000 m above MSL Shock and impact resistance15 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks Vibration resistance0.35 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles Pollution degree2 Mechanical specifications Degree of protectionIP20 ConnectionRemovable push-in terminalsrated connection capacity:rigid: 0.20 mm2 ... 1.5 mm2flexible (without wire end ferrule): 0.20 mm2 ... 2.5 mm2flexible (with wire end ferrule): 0.25 mm2 ... 1.5 mm2 Material HousingPA 66-FR Mass110 g MountingDIN mounting rail NoteMax. length of jumpers = 5 cm Classifications SystemClasscode ECLASS 11.027242601 ECLASS 10.0.127242601 ECLASS 9.027242601 ECLASS 8.027242601 ECLASS 5.127242601 ETIM 8.0EC001596 ETIM 7.0EC001596 ETIM 6.0EC001596 ETIM 5.0EC001596 UNSPSC 12.139121535
