VBA-4A-G11-I/U-F PEPPERL+FUCHS - Part number: 237500
NFS
Non disponibile - Backorder
Da ordinare dal produttore
527,73 USD

Tasse di importazione escluse

Devi essere autenticato

VBA-4A-G11-I/U-F PEPPERL+FUCHS - Part number: 237500

PEPPERL+FUCHS

confronta
VBA-4A-G11-I/U-F PEPPERL+FUCHS - Part number: 237500

AS-Interface analog module VBA-4A-G11-I/U-F VBA-4A-G11-I/U-F Addressing jack Degree of protection IP68 / IP69K Function display for bus, external auxiliary voltage and outputs Supply for outputs from AS-Interface or from bulk power Accuracy ± 0.15 % Current or voltage output Integrated shielding Channel-specific output monitoring Communication monitoring AS-Interface analog module VBA-4A-G11-I/U-F VBA-4A-G11-I/U-F Addressing jack Degree of protection IP68 / IP69K Function display for bus, external auxiliary voltage and outputs Supply for outputs from AS-Interface or from bulk power Accuracy ± 0.15 % Current or voltage output Integrated shielding Channel-specific output monitoring Communication monitoring

MPNs 237500, PEP237500, VBA-4A-G11-I/U-F
Codice HS 85371091
Peso 0.2 kg

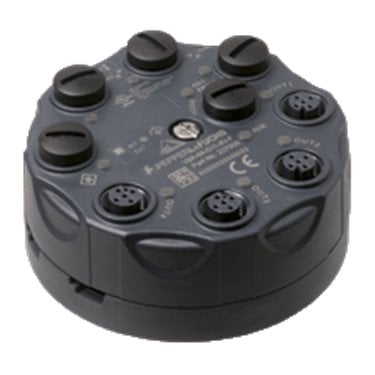

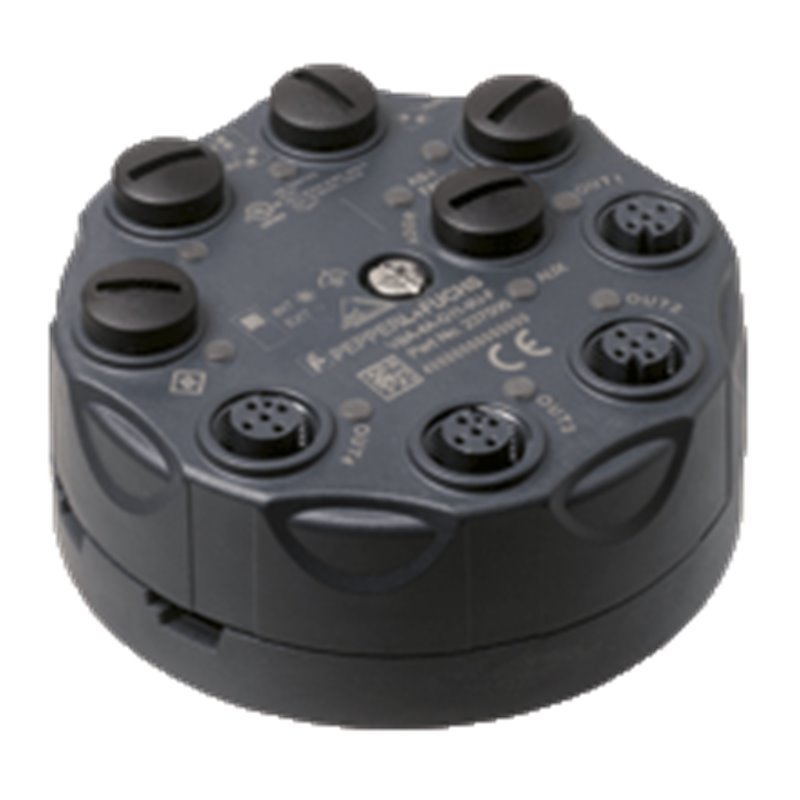

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
527,73 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  VBA-4A-G11-I/U-F Product Description G11 analog module4 analog outputs General specifications Node typeStandard node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 UL File NumberE223772 Functional safety related parameters MTTFd220 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means LED AS-i/FAULTStatus display; multi-colour LEDGreen: normal operationRed: communication faultFlashing yellow/red: address 0Flashing green/red: peripheral fault LED ANALOGStatus of output signal; yellow LEDYellow: Output value within rangeYellow flashing: lead breakage (on current output) or output value out of range LED AUXext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage LED INT/EXTstatus display output supply; LED greengreen: output supply from AS-Interfaceoff: output supply from auxiliary voltage Electrical specifications Auxiliary voltage (output)24 V DC ± 15 % PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 75 mA (without outputs) / max. 200 mA Protection classIII Surge protectionUAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) Output Number/Type4 analog outputsCurrent: 0 ... 20 mAVoltage: 0 ... 10 V Supplyfrom AS-Interface (switch position INT, default settings) or auxiliary voltage UEXT (switch position EXT) Loadvoltage output: min. 1 kΩ current output: max. 600 Ω Current loading capacity≤ 120 mA (signal current + actuator supply) from AS-Interface; overload and short-circuit protected≤ 700 mA (signal current + actuator supply) from external bulk power supply UAUX, overload and short-circuit protected ResolutionVoltage output: 3 mVCurrent output: 6 µA Accuracy0.15 % of full-scale value Temperature influence1 µA/K or 0,3 mV/K Short-circuit currentvoltage output: max. 22 mA Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityEN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 Programming instructions ProfileS-7.3.6 IO code7 ID code3 ID1 codeF ID2 code6 Data bits (function via AS-Interface)The transfer of the data value is based on AS-Interface Profile 7.3. Parameter bits (programmable via AS-i)function P0Watchdog:P0=1 (default), watchdog activeP0=0, watchdog inactive P1Output mode:P1=1 (default), 4x current outputP2=0, 4x voltage output P2Indication of peripheral fault:P2=1 (default), peripheral fault is reportedP2=0, peripheral fault is not reported P3Automatic mode:P3=1 (default), manual setting of output modeP3=0, automatic load detection (mixed mode possible) Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Relative humidity85 % , noncondensing Climatic conditionsFor indoor use only Altitude≤ 2000 m above MSL Pollution degree3 Mechanical specifications Degree of protectionIP68 / IP69K ConnectionAS-Interface/UAUX: cable piercing method, flat cable yellow/flat cable black Outputs: M12 round connector Material HousingPBT PC Mounting screwStainless steel 1.4305 / AISI 303 Mass200 g Tightening torque, housing screws1.8 Nm Tightening torque, cable gland0.4 Nm MountingMounting plate Classifications SystemClasscode ECLASS 11.027242601 ECLASS 10.0.127242601 ECLASS 9.027242601 ECLASS 8.027242601 ECLASS 5.127242601 ETIM 8.0EC001596 ETIM 7.0EC001596 ETIM 6.0EC001596 ETIM 5.0EC001596 UNSPSC 12.139121535 Datasheet excerpt: Technical data of  VBA-4A-G11-I/U-F Product Description G11 analog module4 analog outputs General specifications Node typeStandard node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 UL File NumberE223772 Functional safety related parameters MTTFd220 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means LED AS-i/FAULTStatus display; multi-colour LEDGreen: normal operationRed: communication faultFlashing yellow/red: address 0Flashing green/red: peripheral fault LED ANALOGStatus of output signal; yellow LEDYellow: Output value within rangeYellow flashing: lead breakage (on current output) or output value out of range LED AUXext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage LED INT/EXTstatus display output supply; LED greengreen: output supply from AS-Interfaceoff: output supply from auxiliary voltage Electrical specifications Auxiliary voltage (output)24 V DC ± 15 % PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 75 mA (without outputs) / max. 200 mA Protection classIII Surge protectionUAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) Output Number/Type4 analog outputsCurrent: 0 ... 20 mAVoltage: 0 ... 10 V Supplyfrom AS-Interface (switch position INT, default settings) or auxiliary voltage UEXT (switch position EXT) Loadvoltage output: min. 1 kΩ current output: max. 600 Ω Current loading capacity≤ 120 mA (signal current + actuator supply) from AS-Interface; overload and short-circuit protected≤ 700 mA (signal current + actuator supply) from external bulk power supply UAUX, overload and short-circuit protected ResolutionVoltage output: 3 mVCurrent output: 6 µA Accuracy0.15 % of full-scale value Temperature influence1 µA/K or 0,3 mV/K Short-circuit currentvoltage output: max. 22 mA Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityEN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 Programming instructions ProfileS-7.3.6 IO code7 ID code3 ID1 codeF ID2 code6 Data bits (function via AS-Interface)The transfer of the data value is based on AS-Interface Profile 7.3. Parameter bits (programmable via AS-i)function P0Watchdog:P0=1 (default), watchdog activeP0=0, watchdog inactive P1Output mode:P1=1 (default), 4x current outputP2=0, 4x voltage output P2Indication of peripheral fault:P2=1 (default), peripheral fault is reportedP2=0, peripheral fault is not reported P3Automatic mode:P3=1 (default), manual setting of output modeP3=0, automatic load detection (mixed mode possible) Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Relative humidity85 % , noncondensing Climatic conditionsFor indoor use only Altitude≤ 2000 m above MSL Pollution degree3 Mechanical specifications Degree of protectionIP68 / IP69K ConnectionAS-Interface/UAUX: cable piercing method, flat cable yellow/flat cable black Outputs: M12 round connector Material HousingPBT PC Mounting screwStainless steel 1.4305 / AISI 303 Mass200 g Tightening torque, housing screws1.8 Nm Tightening torque, cable gland0.4 Nm MountingMounting plate Classifications SystemClasscode ECLASS 11.027242601 ECLASS 10.0.127242601 ECLASS 9.027242601 ECLASS 8.027242601 ECLASS 5.127242601 ETIM 8.0EC001596 ETIM 7.0EC001596 ETIM 6.0EC001596 ETIM 5.0EC001596 UNSPSC 12.139121535
