VBA-4E-G4-PT100 PEPPERL+FUCHS - Part number: 112493

PEPPERL+FUCHS

confronta

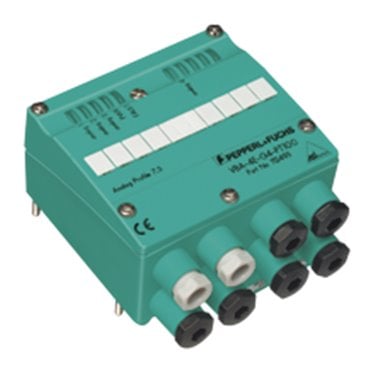

AS-Interface analog module VBA-4E-G4-Pt100 VBA-4E-G4-Pt100 Degree of protection IP65 Flat or round cable connection (via standardized EMS base, not included with delivery) Cable piercing method for flat cable Function display for bus and inputs

MPNs 112493, PEP112493, VBA-4E-G4-PT100

Codice HS 85371091

Peso 0.35 kg

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Venduto da PLC-CITY® e spedito dall'Italia

Pagamenti sicuri

e molti altri

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

12 Mesi garanzia

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

Reso disponibile entro 30 giorni

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of VBA-4E-G4-Pt100 Product Description G4 module IP654 inputs for Pt100 General specifications Node typeStandard node AS-Interface specificationV2.1 Required gateway specification≥ V2.1 UL File NumberE223772 Functional safety related parameters MTTFd150 a at 30 °C Indicators/operating means LED FAULTerror display; LED redred: communication errorred flashing: peripheral error LED PWRAS-Interface voltage; LED green LED ANALOGstatus of input signal; LED greenoff: not connected (peripheral error)green: signal within measurement rangegreen flashing: signal outside of measurement range (peripheral error) Electrical specifications Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 80 mA Protection classIII Input Number/Type4 inputs for Pt100, 2- or 3-wire connection Supplyfrom AS-Interface Resolution16 Bit / 0.1 °C Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 AS-InterfaceEN 62026-2:2013 Programming instructions ProfileS-7.3.E IO code7 ID code3 ID2 codeE Data bits (function via AS-Interface)The transfer of the data value is based on AS-Interface Profile 7.3. Parameter bits (programmable via AS-i)function P0mains power frequency filterP0=1, 50 Hz filter activeP0=0, 60 Hz filter active P1/P2Communication of the peripheral fault on measuring channels 1 to 4: [*PD-Z02313A*] P3configuration Pt100P3=1, 2-wire connectionP3=0, 3-wire connection Ambient conditions Ambient temperature0 ... 70 °C (32 ... 158 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Degree of protectionIP65 Connectioncable piercing method or terminal compartmentyellow flat cable or standard round cableinputs: M12 x 1.5 cable gland and cage tension spring terminals Material HousingPA 6 GF30 Mass350 g MountingDIN mounting rail Classifications SystemClasscode ECLASS 11.027242601 ECLASS 10.0.127242601 ECLASS 9.027242601 ECLASS 8.027242601 ECLASS 5.127242601 ETIM 8.0EC001596 ETIM 7.0EC001596 ETIM 6.0EC001596 ETIM 5.0EC001596 UNSPSC 12.139121535 Datasheet excerpt: Technical data of VBA-4E-G4-Pt100 Product Description G4 module IP654 inputs for Pt100 General specifications Node typeStandard node AS-Interface specificationV2.1 Required gateway specification≥ V2.1 UL File NumberE223772 Functional safety related parameters MTTFd150 a at 30 °C Indicators/operating means LED FAULTerror display; LED redred: communication errorred flashing: peripheral error LED PWRAS-Interface voltage; LED green LED ANALOGstatus of input signal; LED greenoff: not connected (peripheral error)green: signal within measurement rangegreen flashing: signal outside of measurement range (peripheral error) Electrical specifications Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 80 mA Protection classIII Input Number/Type4 inputs for Pt100, 2- or 3-wire connection Supplyfrom AS-Interface Resolution16 Bit / 0.1 °C Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 AS-InterfaceEN 62026-2:2013 Programming instructions ProfileS-7.3.E IO code7 ID code3 ID2 codeE Data bits (function via AS-Interface)The transfer of the data value is based on AS-Interface Profile 7.3. Parameter bits (programmable via AS-i)function P0mains power frequency filterP0=1, 50 Hz filter activeP0=0, 60 Hz filter active P1/P2Communication of the peripheral fault on measuring channels 1 to 4: [*PD-Z02313A*] P3configuration Pt100P3=1, 2-wire connectionP3=0, 3-wire connection Ambient conditions Ambient temperature0 ... 70 °C (32 ... 158 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Degree of protectionIP65 Connectioncable piercing method or terminal compartmentyellow flat cable or standard round cableinputs: M12 x 1.5 cable gland and cage tension spring terminals Material HousingPA 6 GF30 Mass350 g MountingDIN mounting rail Classifications SystemClasscode ECLASS 11.027242601 ECLASS 10.0.127242601 ECLASS 9.027242601 ECLASS 8.027242601 ECLASS 5.127242601 ETIM 8.0EC001596 ETIM 7.0EC001596 ETIM 6.0EC001596 ETIM 5.0EC001596 UNSPSC 12.139121535
