VBG-CCL-K20-D-BV PEPPERL+FUCHS - Part number: 245605

PEPPERL+FUCHS

confronta

AS-Interface gateway VBG-CCL-K20-D-BV VBG-CCL-K20-D-BV Gateway compliant with AS-Interface specification 3.0 Fault diagnosis via LEDs and grafic display Easy commissioning by graphic display AS-Interface monitor read via display Earth fault detection AS-Interface noise detection

MPNs 245605, PEP245605, VBG-CCL-K20-D-BV

Codice HS 85176900

Peso 0.52 kg

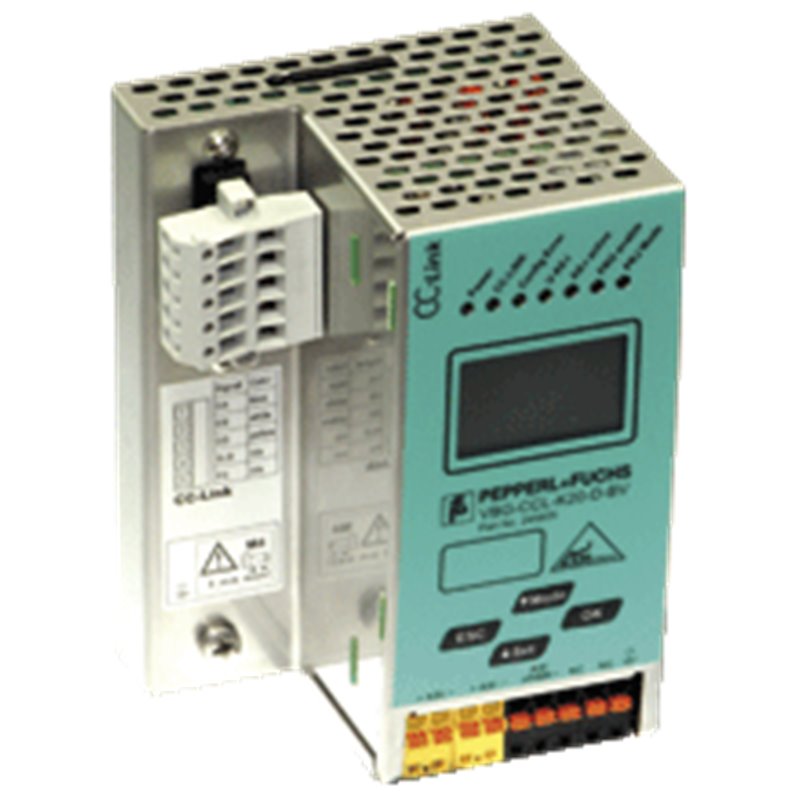

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Venduto da PLC-CITY® e spedito dall'Italia

Pagamenti sicuri

e molti altri

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

12 Mesi garanzia

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

Reso disponibile entro 30 giorni

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of VBG-CCL-K20-D-BV Product Description CC-Link gateway General specifications AS-Interface specificationV3.0 Earth fault detectionintegrated EMC monitoringintegrated UL File NumberE223772 Indicators/operating means DisplayIlluminated graphical LC display for addressing and error messages LED AS-i ACTIVEAS-Interface operation normal; LED green LED CONFIG ERRconfiguration error; LED red LED PRG ENABLEAutomatic addressing active; LED green LED POWERvoltage ON; LED green LED PRJ MODEConfiguration mode active; LED yellow LED U AS-iAS-Interface voltage; LED green LED CC-LinkCC link in operation; LED green CC Link error; LED red Button4 Switch SETSelection and setting of a slave address OK buttonMode selection traditional-graphical/confirmation Button MODEMode selection PRJ-operation/save configuration/cursor ESC buttonMode selection traditional-graphical/cancel Electrical specifications Insulation voltage≥ 500 V Rated operating voltagefrom AS-Interface 30 V DC Rated operating current≤ 200 mA from AS-Interface Interface 1 Interface typeRemote device, 3 occupied stations Protocolaccording to CC-Link specification Transfer rate156 Bit/s up to 10 MBit/s Connection AS-Interfacespring terminals, removable CC Link5-pin screw terminal Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2006, EN 61000-6-4:2007 Standard conformity Degree of protectionEN 60529:2000 AS-InterfaceEN 62026-2:2013 Approvals and certificates EAC conformityTR CU 020/2011 Ambient conditions Ambient temperature0 ... 55 °C (32 ... 131 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Degree of protectionIP20 Material HousingStainless steel Mass520 g Construction typeLow profile housing , Stainless steel Classifications SystemClasscode ECLASS 11.027242607 ECLASS 10.0.127242607 ECLASS 9.027242607 ECLASS 8.027242607 ECLASS 5.127242607 ETIM 8.0EC001603 ETIM 7.0EC001603 ETIM 6.0EC001603 ETIM 5.0EC001603 UNSPSC 12.139121535 Datasheet excerpt: Technical data of VBG-CCL-K20-D-BV Product Description CC-Link gateway General specifications AS-Interface specificationV3.0 Earth fault detectionintegrated EMC monitoringintegrated UL File NumberE223772 Indicators/operating means DisplayIlluminated graphical LC display for addressing and error messages LED AS-i ACTIVEAS-Interface operation normal; LED green LED CONFIG ERRconfiguration error; LED red LED PRG ENABLEAutomatic addressing active; LED green LED POWERvoltage ON; LED green LED PRJ MODEConfiguration mode active; LED yellow LED U AS-iAS-Interface voltage; LED green LED CC-LinkCC link in operation; LED green CC Link error; LED red Button4 Switch SETSelection and setting of a slave address OK buttonMode selection traditional-graphical/confirmation Button MODEMode selection PRJ-operation/save configuration/cursor ESC buttonMode selection traditional-graphical/cancel Electrical specifications Insulation voltage≥ 500 V Rated operating voltagefrom AS-Interface 30 V DC Rated operating current≤ 200 mA from AS-Interface Interface 1 Interface typeRemote device, 3 occupied stations Protocolaccording to CC-Link specification Transfer rate156 Bit/s up to 10 MBit/s Connection AS-Interfacespring terminals, removable CC Link5-pin screw terminal Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2006, EN 61000-6-4:2007 Standard conformity Degree of protectionEN 60529:2000 AS-InterfaceEN 62026-2:2013 Approvals and certificates EAC conformityTR CU 020/2011 Ambient conditions Ambient temperature0 ... 55 °C (32 ... 131 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Degree of protectionIP20 Material HousingStainless steel Mass520 g Construction typeLow profile housing , Stainless steel Classifications SystemClasscode ECLASS 11.027242607 ECLASS 10.0.127242607 ECLASS 9.027242607 ECLASS 8.027242607 ECLASS 5.127242607 ETIM 8.0EC001603 ETIM 7.0EC001603 ETIM 6.0EC001603 ETIM 5.0EC001603 UNSPSC 12.139121535
