VAA-2E1A-G10-SAJ/EA2J-1M PEPPERL+FUCHS - Part number: 229182
NFS
Non disponibile - Backorder
Da ordinare dal produttore
203,14 USD

Tasse di importazione escluse

Devi essere autenticato

VAA-2E1A-G10-SAJ/EA2J-1M PEPPERL+FUCHS - Part number: 229182

PEPPERL+FUCHS

confronta
VAA-2E1A-G10-SAJ/EA2J-1M PEPPERL+FUCHS - Part number: 229182

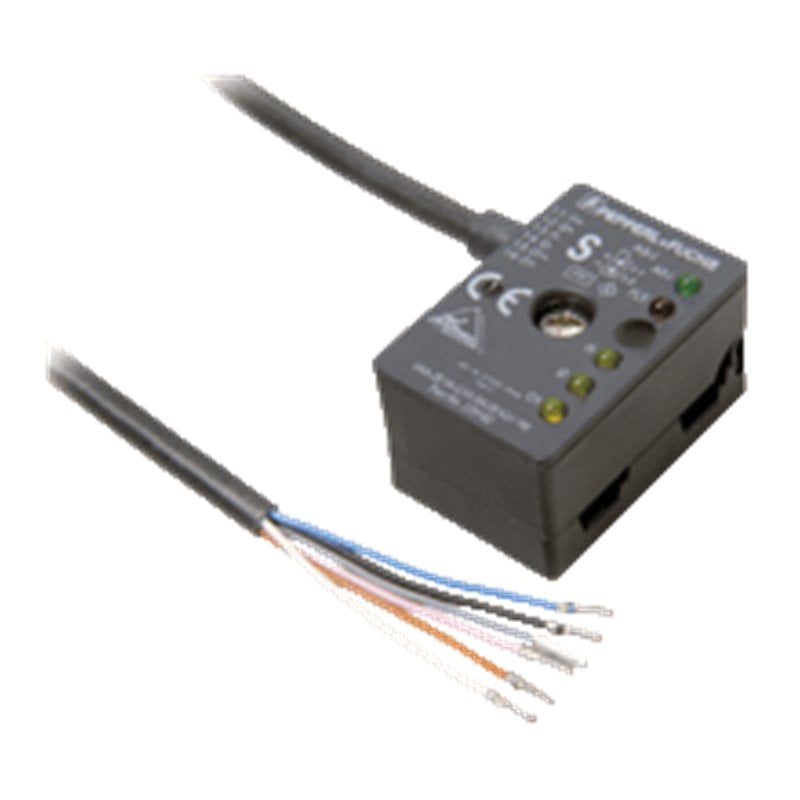

AS-Interface safety module VAA-2E1A-G10-SAJ/EA2J-1M VAA-2E1A-G10-SAJ/EA2J-1M Connection of contact safety switches, e.g. EMERGENCY STOP button Applications up to PLe Modular safety solution Ultra-compact enclosure Degree of protection IP67 AS-Interface safety module VAA-2E1A-G10-SAJ/EA2J-1M VAA-2E1A-G10-SAJ/EA2J-1M Connection of contact safety switches, e.g. EMERGENCY STOP button Applications up to PLe Modular safety solution Ultra-compact enclosure Degree of protection IP67

MPNs 229182, PEP229182, VAA-2E1A-G10-SAJ/EA2J-1M
Codice HS 85371091
Peso 0.2 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
203,14 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  VAA-2E1A-G10-SAJ/EA2J-1M Product Description G10 safety module2 safety inputs and1 standard electronic output General specifications Node typeSafety-Slave AS-Interface specificationV3.0 Required master specification≥ V2.1 UL File NumberE223772 "For use in NFPA 79 Applications only" Indicators/operating means LED FLTerror display; LED redred: communication error or address is 0 LED AS-iAS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0 LED INswitching state (input); 2 LED yellow LED OUTSwitching state (output); LED yellow Electrical specifications Rated operating voltage26.5 ... 31.6 V from AS-Interface (PELV) Rated operating current≤ 90 mA Protection classIII Surge protectionovervoltage category III Rated insulation voltage32 V Pulse withstand voltage0.8 kV Input Number/Type2 safety-related inputs for mechanical contacts, crossed-circuit monitored:2 single-channel contacts: up to category 2/PL c to ISO 13849-1 or1 2-channel contact: up to category 4/PL e to ISO 13849-1 Supplyfrom AS-Interface Voltage20 ... 30 V DC pulsed Currentinput current limited ≤ 15 mA,short-circuit protected Output Number/Type1 conventional electronic output, PNP Supplyfrom AS-Interface Voltage(UASI - 7.0 V) ≤ UOUT ≤ UASI Current50 mA , short-circuit/overload protected Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2007 Machinery Directive Directive 2006/42/ECEN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 Electrical safetyIEC 61140:2009 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityIEC 62026-2:2013 EN 62061:2005 EN 61000-6-2:2005 Functional safetyEN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 Programming instructions ProfileS-7.B IO code7 ID codeB ID1 codeF ID2 code0 Data bits (function via AS-Interface) input output D0 dyn. safety code 1 OUT 1 D1 dyn. safety code 1 - D2 dyn. safety code 2 - D3 dyn. safety code 2 - Parameter bits (programmable via AS-i)function P0communication monitoringP0 = 1 (default settings), monitoring = ON, i.e. if communication fails, the outputs are de-energised P0 = 0, monitoring = OFF, if communication fails, the outputs maintain their condition P1not used P2not used P3not used Approvals and certificates UL approvalcULus Listed, Type 1 enclosure Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-25 ... 80 °C (-13 ... 176 °F) Relative humidity< 95 % Altitude≤ 2000 m above MSL Shock and impact resistance30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks Vibration resistance0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles Pollution degree3 Mechanical specifications Degree of protectionIP67This protection class is achieved by using the AS-Interface flat cable VAZ-FK-S-YE ConnectionAS-Interface: AS-Interface flat cable Inputs/outputs: open conductor ends Material Contactsopen conductor ends with connector sleeves HousingPBT CablePUR Mounting screwStainless steel 1.4305 / AISI 303 Cable Sheath diameter∅4.8 mm Bending radius> 8 x cable diameter, fixed > 10 x cable diameter, moving not appropriate for conveyor chains Colorblack Cores6 x 0.25 mm2 Length1 m Mass200 g Tightening torque, fastening screws1.65 Nm Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535 Datasheet excerpt: Technical data of  VAA-2E1A-G10-SAJ/EA2J-1M Product Description G10 safety module2 safety inputs and1 standard electronic output General specifications Node typeSafety-Slave AS-Interface specificationV3.0 Required master specification≥ V2.1 UL File NumberE223772 "For use in NFPA 79 Applications only" Indicators/operating means LED FLTerror display; LED redred: communication error or address is 0 LED AS-iAS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0 LED INswitching state (input); 2 LED yellow LED OUTSwitching state (output); LED yellow Electrical specifications Rated operating voltage26.5 ... 31.6 V from AS-Interface (PELV) Rated operating current≤ 90 mA Protection classIII Surge protectionovervoltage category III Rated insulation voltage32 V Pulse withstand voltage0.8 kV Input Number/Type2 safety-related inputs for mechanical contacts, crossed-circuit monitored:2 single-channel contacts: up to category 2/PL c to ISO 13849-1 or1 2-channel contact: up to category 4/PL e to ISO 13849-1 Supplyfrom AS-Interface Voltage20 ... 30 V DC pulsed Currentinput current limited ≤ 15 mA,short-circuit protected Output Number/Type1 conventional electronic output, PNP Supplyfrom AS-Interface Voltage(UASI - 7.0 V) ≤ UOUT ≤ UASI Current50 mA , short-circuit/overload protected Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2007 Machinery Directive Directive 2006/42/ECEN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 Electrical safetyIEC 61140:2009 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityIEC 62026-2:2013 EN 62061:2005 EN 61000-6-2:2005 Functional safetyEN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 Programming instructions ProfileS-7.B IO code7 ID codeB ID1 codeF ID2 code0 Data bits (function via AS-Interface) input output D0 dyn. safety code 1 OUT 1 D1 dyn. safety code 1 - D2 dyn. safety code 2 - D3 dyn. safety code 2 - Parameter bits (programmable via AS-i)function P0communication monitoringP0 = 1 (default settings), monitoring = ON, i.e. if communication fails, the outputs are de-energised P0 = 0, monitoring = OFF, if communication fails, the outputs maintain their condition P1not used P2not used P3not used Approvals and certificates UL approvalcULus Listed, Type 1 enclosure Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-25 ... 80 °C (-13 ... 176 °F) Relative humidity< 95 % Altitude≤ 2000 m above MSL Shock and impact resistance30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks Vibration resistance0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles Pollution degree3 Mechanical specifications Degree of protectionIP67This protection class is achieved by using the AS-Interface flat cable VAZ-FK-S-YE ConnectionAS-Interface: AS-Interface flat cable Inputs/outputs: open conductor ends Material Contactsopen conductor ends with connector sleeves HousingPBT CablePUR Mounting screwStainless steel 1.4305 / AISI 303 Cable Sheath diameter∅4.8 mm Bending radius> 8 x cable diameter, fixed > 10 x cable diameter, moving not appropriate for conveyor chains Colorblack Cores6 x 0.25 mm2 Length1 m Mass200 g Tightening torque, fastening screws1.65 Nm Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535
