VAA-2E2A-G12-SAJ/EA2L PEPPERL+FUCHS - Part number: 193671
NFS
Non disponibile - Backorder
Da ordinare dal produttore
358,22 USD

Tasse di importazione escluse

Devi essere autenticato

VAA-2E2A-G12-SAJ/EA2L PEPPERL+FUCHS - Part number: 193671

PEPPERL+FUCHS

confronta
VAA-2E2A-G12-SAJ/EA2L PEPPERL+FUCHS - Part number: 193671

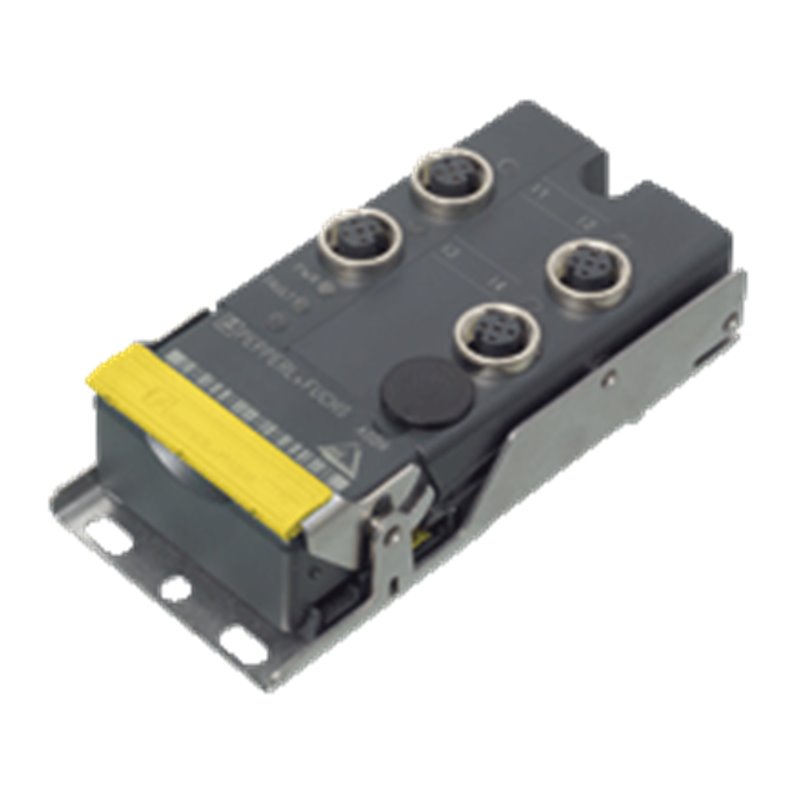

AS-Interface safety module VAA-2E2A-G12-SAJ/EA2L VAA-2E2A-G12-SAJ/EA2L Switchable internal logic operation of the inputs and outputs via parameter bit One-piece housing with stainless steel base Installation without tools Metal threaded inserts with SPEEDCON technology Flat cable connection with cable piercing technique, variable flat cable guide Red LED per channel, lights up in the event of output overload Communication monitoring, configurable 2 safe inputs for mechanical contacts such as EMERGENCY-STOP switch DIN rail mounting AS-Interface certificate AS-Interface safety module VAA-2E2A-G12-SAJ/EA2L VAA-2E2A-G12-SAJ/EA2L Switchable internal logic operation of the inputs and outputs via parameter bit One-piece housing with stainless steel base Installation without tools Metal threaded inserts with SPEEDCON technology Flat cable connection with cable piercing technique, variable flat cable guide Red LED per channel, lights up in the event of output overload Communication monitoring, configurable 2 safe inputs for mechanical contacts such as EMERGENCY-STOP switch DIN rail mounting AS-Interface certificate

MPNs 193671, PEP193671, VAA-2E2A-G12-SAJ/EA2L
Codice HS 85371091
Peso 0.2 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
358,22 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  VAA-2E2A-G12-SAJ/EA2L Product Description G12 safety module, 2 safety inputs and 2 standard electronic outputs General specifications Node typeSafety node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 ProfileS-7.B IO code7 ID codeB ID1 codeF ID2 code0 UL File NumberE223772 Functional safety related parameters Safety Integrity Level (SIL)SIL 3 Performance level (PL)PL e CategoryCat. 4 MTTFdno significant contribution to MTTFd of the overall system PFHdno significant contribution to PFH of the overall system PFDno significant contribution to PFD of the overall system Indicators/operating means LED FAULTerror display; LED redred: communication error or address is 0red flashing: Output supply overload LED PWRAS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0 LED AUXext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage LED INswitching state (input); 2 LED yellow LED OUTSwitching status (output); 2 yellow/red LEDs Yellow: output activeRed: output overload Electrical specifications Auxiliary voltage (output)24 V DC ± 15 % PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 50 mA Protection classIII Surge protectionUAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) derived from mains up to 300 V AC line-to-neutral Rated insulation voltage40 V Pulse withstand voltage0.5 kV Input Number/Type2 safety-related inputs for mechanical contacts, crossed-circuit monitored:2 single-channel contacts: up to category 2/PL c to ISO 13849-1 or1 2-channel contact: up to category 4/PL e to ISO 13849-1 Cable length must not exceed 300 m per input. Supplyfrom AS-Interface Voltage20 ... 30 V DC pulsed Current loading capacityinput current limited ≤ 15 mA,overload and short-circuit resistant Output Number/Type2 conventional electronic outputs, PNP Supplyfrom external auxiliary voltage UAUX Voltage≥ (UAUX - 0.5 V) Current1.5 A per output , short-circuit protected Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013+A1:2019 IEC 60947-5-3:1999 Machinery Directive Directive 2006/42/ECEN ISO 13849-1:2008 + AC:2009 EN ISO 13849-2:2012 EN 62061:2005 Standard conformity Insulation coordinationEN 60947-1:2007 Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 Electrical safetyIEC 60947-1, NFPA 79, IEC 60204-1:2007 Emitted interferenceEN 61000-6-4:2007/A1:2011 AS-InterfaceEN 62026-2:2013+A1:2019 Noise immunityIEC 62026-2:2008 EN 62061:2005 EN 61000-6-2:2005 Functional safetyISO 13849-1 (up to category 4/PL e), IEC 61508/IEC 62061 (up to SIL3) StandardsNFPA 79:2007 ER 1 Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Relative humidity85 % , noncondensing Climatic conditionsFor indoor use only Altitude≤ 2000 m above MSL Shock and impact resistance30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks Vibration resistance0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles Pollution degree3 Mechanical specifications Degree of protectionIP67 ConnectionCable piercing methodflat cable yellow/flat cable blackinputs/outputs: M12 round connector Material HousingPBT Mass200 g Tightening torque, cable gland0.4 Nm MountingMounting plate Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535 Datasheet excerpt: Technical data of  VAA-2E2A-G12-SAJ/EA2L Product Description G12 safety module, 2 safety inputs and 2 standard electronic outputs General specifications Node typeSafety node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 ProfileS-7.B IO code7 ID codeB ID1 codeF ID2 code0 UL File NumberE223772 Functional safety related parameters Safety Integrity Level (SIL)SIL 3 Performance level (PL)PL e CategoryCat. 4 MTTFdno significant contribution to MTTFd of the overall system PFHdno significant contribution to PFH of the overall system PFDno significant contribution to PFD of the overall system Indicators/operating means LED FAULTerror display; LED redred: communication error or address is 0red flashing: Output supply overload LED PWRAS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0 LED AUXext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage LED INswitching state (input); 2 LED yellow LED OUTSwitching status (output); 2 yellow/red LEDs Yellow: output activeRed: output overload Electrical specifications Auxiliary voltage (output)24 V DC ± 15 % PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 50 mA Protection classIII Surge protectionUAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) derived from mains up to 300 V AC line-to-neutral Rated insulation voltage40 V Pulse withstand voltage0.5 kV Input Number/Type2 safety-related inputs for mechanical contacts, crossed-circuit monitored:2 single-channel contacts: up to category 2/PL c to ISO 13849-1 or1 2-channel contact: up to category 4/PL e to ISO 13849-1 Cable length must not exceed 300 m per input. Supplyfrom AS-Interface Voltage20 ... 30 V DC pulsed Current loading capacityinput current limited ≤ 15 mA,overload and short-circuit resistant Output Number/Type2 conventional electronic outputs, PNP Supplyfrom external auxiliary voltage UAUX Voltage≥ (UAUX - 0.5 V) Current1.5 A per output , short-circuit protected Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013+A1:2019 IEC 60947-5-3:1999 Machinery Directive Directive 2006/42/ECEN ISO 13849-1:2008 + AC:2009 EN ISO 13849-2:2012 EN 62061:2005 Standard conformity Insulation coordinationEN 60947-1:2007 Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 Electrical safetyIEC 60947-1, NFPA 79, IEC 60204-1:2007 Emitted interferenceEN 61000-6-4:2007/A1:2011 AS-InterfaceEN 62026-2:2013+A1:2019 Noise immunityIEC 62026-2:2008 EN 62061:2005 EN 61000-6-2:2005 Functional safetyISO 13849-1 (up to category 4/PL e), IEC 61508/IEC 62061 (up to SIL3) StandardsNFPA 79:2007 ER 1 Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Relative humidity85 % , noncondensing Climatic conditionsFor indoor use only Altitude≤ 2000 m above MSL Shock and impact resistance30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks Vibration resistance0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles Pollution degree3 Mechanical specifications Degree of protectionIP67 ConnectionCable piercing methodflat cable yellow/flat cable blackinputs/outputs: M12 round connector Material HousingPBT Mass200 g Tightening torque, cable gland0.4 Nm MountingMounting plate Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535
