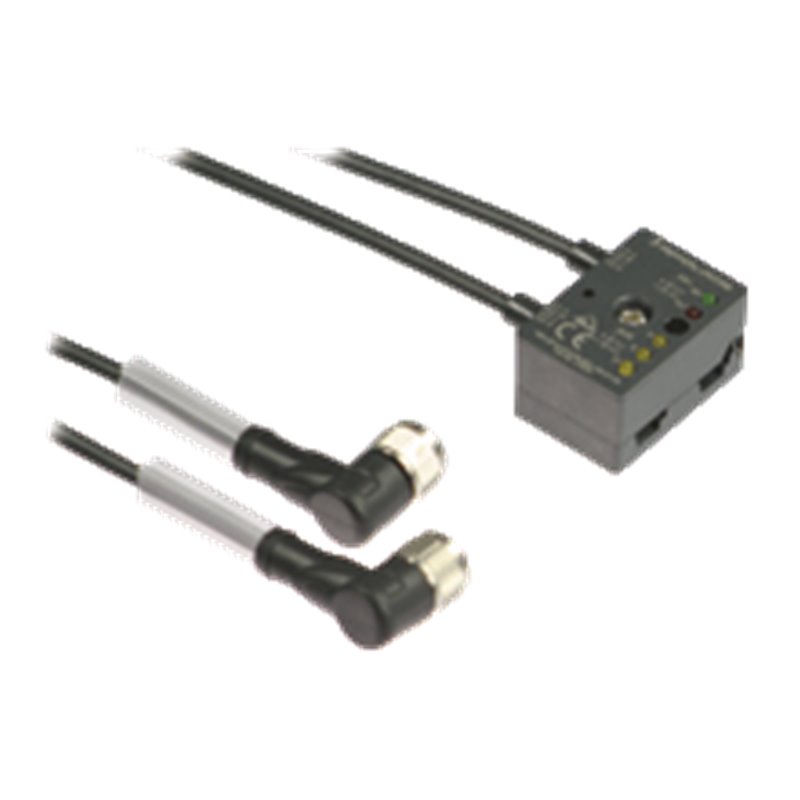

VBA-2E1A-G10-ZAL/E2L-1M-2V1-W PEPPERL+FUCHS - Part number: 216025

Datasheet excerpt: Technical data of  VBA-2E1A-G10-ZAL/E2L-1M-2V1-W Product Description G10 ultra compact module2 inputs and 1 output General specifications Node typeA/B node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 UL File NumberE223772 "For use in NFPA 79 Applications only" Functional safety related parameters MTTFd352 a Indicators/operating means LED FAULTerror display; LED redred: communication error or address is 0red flashing: overload of sensor power supply or overload of outputs or external auxiliary voltage UAUX missing LED AS-iAS-Interface voltage; LED green LED INswitching state (input); 2 LED yellow LED OUTSwitching state (output); LED yellow Electrical specifications Auxiliary voltage20 ... 30 V DC PELV Rated operating voltage18.5 ... 31.6 V from AS-Interface Rated operating current≤ 40 mA Protection classIII Surge protectionUAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) Input Number/Type2 inputs for 2- or 3-wire sensors (PNP), DC option 1 input for 4-wire sensor (PNP), DC Supplyfrom external auxiliary voltage UAUX Voltage20 ... 30 V Current loading capacity≤ 1000 mA overload and short-circuit resistant Input current≤ 9 mA (limited internally) Switching pointaccording to DIN EN 61131-2 (Type 2) 0 (unattenuated)≤ 3 mA 1 (attenuated)≥ 5 mA Signal delay< 1 ms (input/AS-Interface) Output Number/Type1 electronic output, PNP, Supplyfrom external auxiliary voltage UAUX Voltage≥ (UAUX - 0.5 V) Current loading capacity≤ 1000 mA overload and short-circuit resistant Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 InputEN 61131-2:2007 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityEN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 Programming instructions ProfileS-7.A.E IO code7 ID codeA ID1 code7 ID2 codeE Data bits (function via AS-Interface)InputOutput D0 IN1 O1 D1 IN2 - D2 - - D3 - - Parameter bits (programmable via AS-i)function P0communication monitoringP0 = 1 (default settings), monitoring = ON, i.e. if communication fails, the outputs are de-energised P0 = 0, monitoring = OFF, if communication fails, the outputs maintain their condition P1Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings) P2Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings) P3not used Approvals and certificates UL approvalcULus Listed, Type 1 enclosure Maximum permissible ambient temperaturemax. 65 °C (max. 149 °F) Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Shock and impact resistance30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks Vibration resistance0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles Mechanical specifications Degree of protectionIP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-* ConnectionAS-Interface/UAUX: AS-Interface flat cable In-/outputs & matching connector: M12 round connector, 4-pin, A-coded, according to IEC 61076-2-101:2012 Material ContactsCuSn / Au HousingPBT PC BodyPUR, black CablePUR Mounting screwStainless steel 1.4305 / AISI 303 Cable Sheath diameter∅4,3 mm Colorblack Cores4 x 0.34 mm2 Length1 m Mass100 g Tightening torque, fastening screws1.65 Nm Tightening torque, cable gland0.4 Nm Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535 Datasheet excerpt: Technical data of  VBA-2E1A-G10-ZAL/E2L-1M-2V1-W Product Description G10 ultra compact module2 inputs and 1 output General specifications Node typeA/B node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 UL File NumberE223772 "For use in NFPA 79 Applications only" Functional safety related parameters MTTFd352 a Indicators/operating means LED FAULTerror display; LED redred: communication error or address is 0red flashing: overload of sensor power supply or overload of outputs or external auxiliary voltage UAUX missing LED AS-iAS-Interface voltage; LED green LED INswitching state (input); 2 LED yellow LED OUTSwitching state (output); LED yellow Electrical specifications Auxiliary voltage20 ... 30 V DC PELV Rated operating voltage18.5 ... 31.6 V from AS-Interface Rated operating current≤ 40 mA Protection classIII Surge protectionUAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) Input Number/Type2 inputs for 2- or 3-wire sensors (PNP), DC option 1 input for 4-wire sensor (PNP), DC Supplyfrom external auxiliary voltage UAUX Voltage20 ... 30 V Current loading capacity≤ 1000 mA overload and short-circuit resistant Input current≤ 9 mA (limited internally) Switching pointaccording to DIN EN 61131-2 (Type 2) 0 (unattenuated)≤ 3 mA 1 (attenuated)≥ 5 mA Signal delay< 1 ms (input/AS-Interface) Output Number/Type1 electronic output, PNP, Supplyfrom external auxiliary voltage UAUX Voltage≥ (UAUX - 0.5 V) Current loading capacity≤ 1000 mA overload and short-circuit resistant Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 InputEN 61131-2:2007 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityEN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 Programming instructions ProfileS-7.A.E IO code7 ID codeA ID1 code7 ID2 codeE Data bits (function via AS-Interface)InputOutput D0 IN1 O1 D1 IN2 - D2 - - D3 - - Parameter bits (programmable via AS-i)function P0communication monitoringP0 = 1 (default settings), monitoring = ON, i.e. if communication fails, the outputs are de-energised P0 = 0, monitoring = OFF, if communication fails, the outputs maintain their condition P1Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings) P2Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings) P3not used Approvals and certificates UL approvalcULus Listed, Type 1 enclosure Maximum permissible ambient temperaturemax. 65 °C (max. 149 °F) Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Shock and impact resistance30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks Vibration resistance0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles Mechanical specifications Degree of protectionIP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-* ConnectionAS-Interface/UAUX: AS-Interface flat cable In-/outputs & matching connector: M12 round connector, 4-pin, A-coded, according to IEC 61076-2-101:2012 Material ContactsCuSn / Au HousingPBT PC BodyPUR, black CablePUR Mounting screwStainless steel 1.4305 / AISI 303 Cable Sheath diameter∅4,3 mm Colorblack Cores4 x 0.34 mm2 Length1 m Mass100 g Tightening torque, fastening screws1.65 Nm Tightening torque, cable gland0.4 Nm Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535
