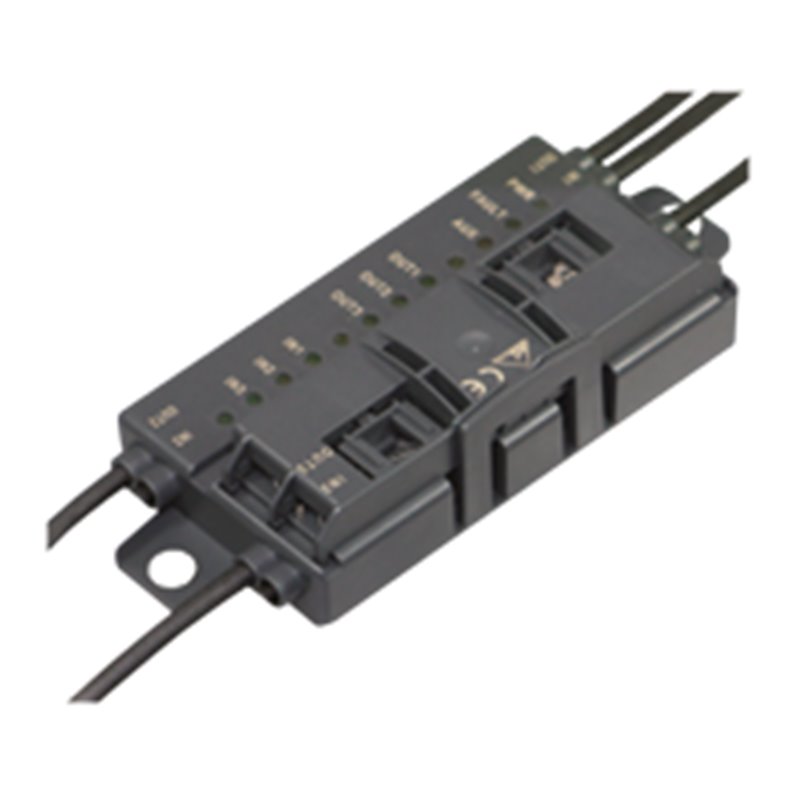

VBA-4E3A-G20-ZEL/E2L-P5 PEPPERL+FUCHS - Part number: 70123995

Datasheet excerpt: Technical data of  VBA-4E3A-G20-ZEL/E2L-P5 Product Description G20 module for digital inputs/outputs, 4 inputs and 3 outputs General specifications Node typeA/B node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 ProfileS-7.A.E IO code7 ID codeA ID1 code7 ID2 codeE UL File NumberE223772 "For use in NFPA 79 Applications only" MTBF110 a Indicators/operating means LED FAULTerror display; LED redred: communication error or address is 0red flashing: overload of sensor power supply or overload of outputs or external auxiliary voltage UAUX missing LED PWRAS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0 or overload of sensor power supply or overload of outputs or external auxiliary voltage UAUX missing LED AUXext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage LED INswitching state (input); 4 LED yellow LED OUTSwitching state (output); 3 LED yellow Electrical specifications Auxiliary voltage (output)20 ... 30 V DC PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 35 mA Input Number/Type4 Inputs for 3-wire sensors (PNP), DC Supplyfrom external auxiliary voltage UAUX Current loading capacity500 mA , overload and short-circuit protected Input current≤ 8 mA (limited internally) Switching pointaccording to DIN EN 61131-2 0 (undamped) ≤ 0.5 mA1 (damped) ≥ 2.0 mA Signal delay< 1 ms (input/AS-Interface) Output Number/Type3 electronic outputs, PNP, overload and short-circuit proof Supplyfrom external auxiliary voltage UAUX Voltage≥ (UAUX - 0.5 V) Current2 A per output TB ≤ 40 °C: 6 A total TB ≤ 60 °C: OUT1+OUT2 max. 3 A, OUT3 max. 2 A Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 InputEN 61131-2:2007 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityEN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Degree of protectionIP54 according to EN 60529 ConnectionAS-Interface, AUX: Insulation piercing technologyYellow flat cable/black flat cableInputs/outputs: M12 round plug connector in accordance with EN 61076-2-101Inputs: LF type (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM type or similarOutputs: LF type (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM type or similar Mass260 g Mounting2 clips with ∅ 8 mm drill hole Cable length2 m NoteThe flat cable routing is designed for 100 actuation cycles Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535 Datasheet excerpt: Technical data of  VBA-4E3A-G20-ZEL/E2L-P5 Product Description G20 module for digital inputs/outputs, 4 inputs and 3 outputs General specifications Node typeA/B node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 ProfileS-7.A.E IO code7 ID codeA ID1 code7 ID2 codeE UL File NumberE223772 "For use in NFPA 79 Applications only" MTBF110 a Indicators/operating means LED FAULTerror display; LED redred: communication error or address is 0red flashing: overload of sensor power supply or overload of outputs or external auxiliary voltage UAUX missing LED PWRAS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0 or overload of sensor power supply or overload of outputs or external auxiliary voltage UAUX missing LED AUXext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage LED INswitching state (input); 4 LED yellow LED OUTSwitching state (output); 3 LED yellow Electrical specifications Auxiliary voltage (output)20 ... 30 V DC PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 35 mA Input Number/Type4 Inputs for 3-wire sensors (PNP), DC Supplyfrom external auxiliary voltage UAUX Current loading capacity500 mA , overload and short-circuit protected Input current≤ 8 mA (limited internally) Switching pointaccording to DIN EN 61131-2 0 (undamped) ≤ 0.5 mA1 (damped) ≥ 2.0 mA Signal delay< 1 ms (input/AS-Interface) Output Number/Type3 electronic outputs, PNP, overload and short-circuit proof Supplyfrom external auxiliary voltage UAUX Voltage≥ (UAUX - 0.5 V) Current2 A per output TB ≤ 40 °C: 6 A total TB ≤ 60 °C: OUT1+OUT2 max. 3 A, OUT3 max. 2 A Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 InputEN 61131-2:2007 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityEN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Degree of protectionIP54 according to EN 60529 ConnectionAS-Interface, AUX: Insulation piercing technologyYellow flat cable/black flat cableInputs/outputs: M12 round plug connector in accordance with EN 61076-2-101Inputs: LF type (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM type or similarOutputs: LF type (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM type or similar Mass260 g Mounting2 clips with ∅ 8 mm drill hole Cable length2 m NoteThe flat cable routing is designed for 100 actuation cycles Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535
