VBA-4E3A-G20-ZEL/M1L-P2 PEPPERL+FUCHS - Part number: 70130648
NFS
Non disponibile - Backorder
Da ordinare dal produttore
187,79 USD

Tasse di importazione escluse

Devi essere autenticato

VBA-4E3A-G20-ZEL/M1L-P2 PEPPERL+FUCHS - Part number: 70130648

PEPPERL+FUCHS

confronta
VBA-4E3A-G20-ZEL/M1L-P2 PEPPERL+FUCHS - Part number: 70130648

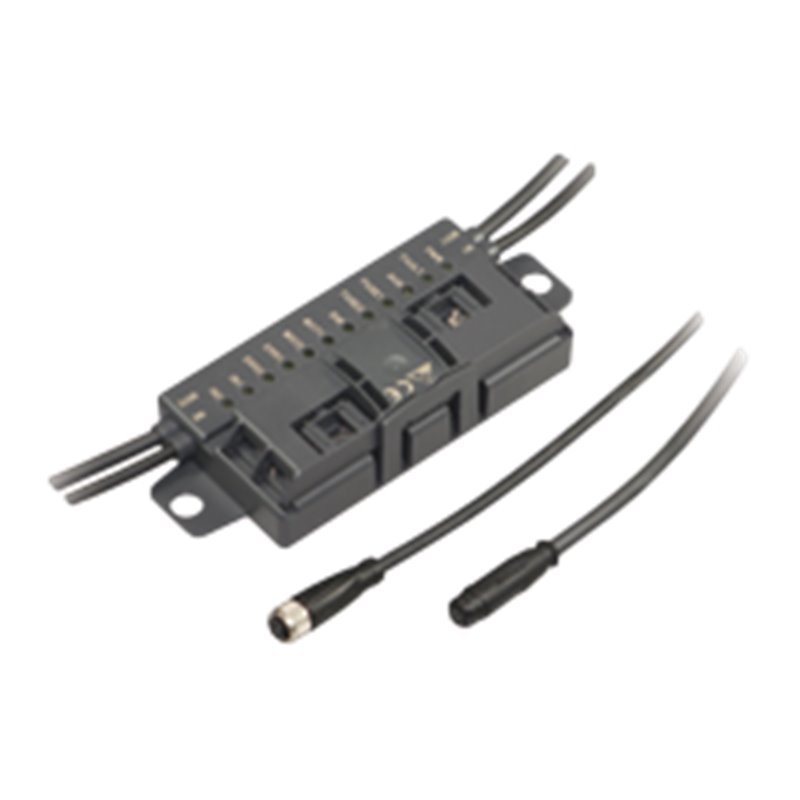

AS-Interface I/O module VBA-4E3A-G20-ZEL/M1L-P2 VBA-4E3A-G20-ZEL/M1L-P2 A/B node with extended addressing possibility for up to 62 nodes Inputs for 3-wire sensors Outputs for DC roller motors (drum motors) Connection of motors and sensors via M8 connectors Configurable start/stop ramps Communication monitoring Power supply of the inputs and outputs from the external auxiliary voltage Function display for bus, external auxiliary voltage, in- and outputs Cable piercing method with gold plated contact pins AS-Interface I/O module VBA-4E3A-G20-ZEL/M1L-P2 VBA-4E3A-G20-ZEL/M1L-P2 A/B node with extended addressing possibility for up to 62 nodes Inputs for 3-wire sensors Outputs for DC roller motors (drum motors) Connection of motors and sensors via M8 connectors Configurable start/stop ramps Communication monitoring Power supply of the inputs and outputs from the external auxiliary voltage Function display for bus, external auxiliary voltage, in- and outputs Cable piercing method with gold plated contact pins

MPNs 70130648, PEP70130648, VBA-4E3A-G20-ZEL/M1L-P2
Codice HS 85371091
Peso 0.22 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
187,79 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  VBA-4E3A-G20-ZEL/M1L-P2 Product Description G20 motor control module for Interroll EC310, Interoll EC5000 24V AI, Rulmeca BL3, Itoh Denki PM500XK, Itoh Denki PM500XC General specifications Node typeA/B node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 ProfileS-7.A.E IO code7 ID codeA ID1 code6 ID2 codeE UL File NumberE223772 "For use in NFPA 79 Applications only" MTBF98 a Compatible roller motorsInterroll EC310, Interroll EC5000 24V AI (20W / 35W / 50W), Rulmeca BL3, Itoh Denki PM500XK, Itoh Denki PM500XC Indicators/operating means LED FAULTerror display; LED redred: communication error or address is 0red flashing: overload of sensor supply or external auxiliary voltage UAUX missing LED ERRMotor fault: 2 LED yellow LED PWRAS-Interface voltage; green LEDgreen: voltage OKgreen flashing: address 0 or sensor supply overload or external auxiliary voltage UAUX missing LED AUXext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage LED INswitching state (input); 2 LED yellow LED FUSEMotor power supply; 2 green LEDs LED DIRMotor rotation direction; yellow LED LED MOTMotor active; 2 yellow LEDs Electrical specifications Auxiliary voltage (output)18 ... 30 VDC PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 35 mA Input Number/Type2 Inputs for 3-wire sensors (PNP), DC Supplyfrom external auxiliary voltage UAUX Current loading capacity500 mA , overload and short-circuit protected Input current≤ 8 mA (limited internally) Switching pointaccording to DIN EN 61131-2 0 (undamped) ≤ 0.5 mA1 (damped) ≥ 2.0 mA Signal delay< 1 ms (input/AS-Interface) Input filter2 ms Output Number/Type2 outputs for DC roller motors (MOT1, MOT2) Supplyfrom external auxiliary voltage UAUX Current3.5 A continuous current , 5 A (<2 s) , max. 7.5 A (<0,3 s) per motor Overload protectionfuse , I2t = 53.7 A2s Velocity signal1.4 … 13 V at no-load Ri = 5.6 kΩ, RLOAD ≥ 35 kΩ Control via parameter P2:0 Rotation direction signalOff / ≥ (UAUX - 1.0 V) at no-load Ri = 5.6 kΩ, RLOAD ≥ 5 kΩ AS-Interface data bit D2 = 0: UD = Off Motor faultDigital input NPN, U0 = 3.3 V, Ri = 52 kΩ 0 (no error) ≥ 40 µA 1 (error) ≤ 30 µA Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 InputEN 61131-2:2007 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityEN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Degree of protectionIP54 according to EN 60529 ConnectionAS-Interface, AUX: Insulation piercing technologyYellow flat cable/black flat cableInputs/outputs: M8 round plug connector in accordance with EN 61076-2-104Inputs: LF004-GS1-A (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM004-Gx1-A or similarOutputs: NF005-SS1-B (5-pin, bushing contacts, snap lock, B-coded).Matching connector: NM005-Sx1-B or similar Mass220 g Mounting2 clips with ∅ 8 mm drill hole Cable length1 m NoteThe flat cable routing is designed for 100 actuation cycles Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535 Datasheet excerpt: Technical data of  VBA-4E3A-G20-ZEL/M1L-P2 Product Description G20 motor control module for Interroll EC310, Interoll EC5000 24V AI, Rulmeca BL3, Itoh Denki PM500XK, Itoh Denki PM500XC General specifications Node typeA/B node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 ProfileS-7.A.E IO code7 ID codeA ID1 code6 ID2 codeE UL File NumberE223772 "For use in NFPA 79 Applications only" MTBF98 a Compatible roller motorsInterroll EC310, Interroll EC5000 24V AI (20W / 35W / 50W), Rulmeca BL3, Itoh Denki PM500XK, Itoh Denki PM500XC Indicators/operating means LED FAULTerror display; LED redred: communication error or address is 0red flashing: overload of sensor supply or external auxiliary voltage UAUX missing LED ERRMotor fault: 2 LED yellow LED PWRAS-Interface voltage; green LEDgreen: voltage OKgreen flashing: address 0 or sensor supply overload or external auxiliary voltage UAUX missing LED AUXext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage LED INswitching state (input); 2 LED yellow LED FUSEMotor power supply; 2 green LEDs LED DIRMotor rotation direction; yellow LED LED MOTMotor active; 2 yellow LEDs Electrical specifications Auxiliary voltage (output)18 ... 30 VDC PELV Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 35 mA Input Number/Type2 Inputs for 3-wire sensors (PNP), DC Supplyfrom external auxiliary voltage UAUX Current loading capacity500 mA , overload and short-circuit protected Input current≤ 8 mA (limited internally) Switching pointaccording to DIN EN 61131-2 0 (undamped) ≤ 0.5 mA1 (damped) ≥ 2.0 mA Signal delay< 1 ms (input/AS-Interface) Input filter2 ms Output Number/Type2 outputs for DC roller motors (MOT1, MOT2) Supplyfrom external auxiliary voltage UAUX Current3.5 A continuous current , 5 A (<2 s) , max. 7.5 A (<0,3 s) per motor Overload protectionfuse , I2t = 53.7 A2s Velocity signal1.4 … 13 V at no-load Ri = 5.6 kΩ, RLOAD ≥ 35 kΩ Control via parameter P2:0 Rotation direction signalOff / ≥ (UAUX - 1.0 V) at no-load Ri = 5.6 kΩ, RLOAD ≥ 5 kΩ AS-Interface data bit D2 = 0: UD = Off Motor faultDigital input NPN, U0 = 3.3 V, Ri = 52 kΩ 0 (no error) ≥ 40 µA 1 (error) ≤ 30 µA Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 62026-2:2013 Standard conformity Degree of protectionEN 60529:2000 Fieldbus standardEN 62026-2:2013 InputEN 61131-2:2007 Emitted interferenceEN 61000-6-4:2007 AS-InterfaceEN 62026-2:2013 Noise immunityEN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Degree of protectionIP54 according to EN 60529 ConnectionAS-Interface, AUX: Insulation piercing technologyYellow flat cable/black flat cableInputs/outputs: M8 round plug connector in accordance with EN 61076-2-104Inputs: LF004-GS1-A (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM004-Gx1-A or similarOutputs: NF005-SS1-B (5-pin, bushing contacts, snap lock, B-coded).Matching connector: NM005-Sx1-B or similar Mass220 g Mounting2 clips with ∅ 8 mm drill hole Cable length1 m NoteThe flat cable routing is designed for 100 actuation cycles Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535
