V1-W-E2-BK0,3M-PUR-A-T-V1-G PEPPERL+FUCHS - Part number: 260170
NFS
Non disponibile - Backorder
Da ordinare dal produttore
68,50 USD

Tasse di importazione escluse

Devi essere autenticato

V1-W-E2-BK0,3M-PUR-A-T-V1-G PEPPERL+FUCHS - Part number: 260170

PEPPERL+FUCHS

confronta
V1-W-E2-BK0,3M-PUR-A-T-V1-G PEPPERL+FUCHS - Part number: 260170

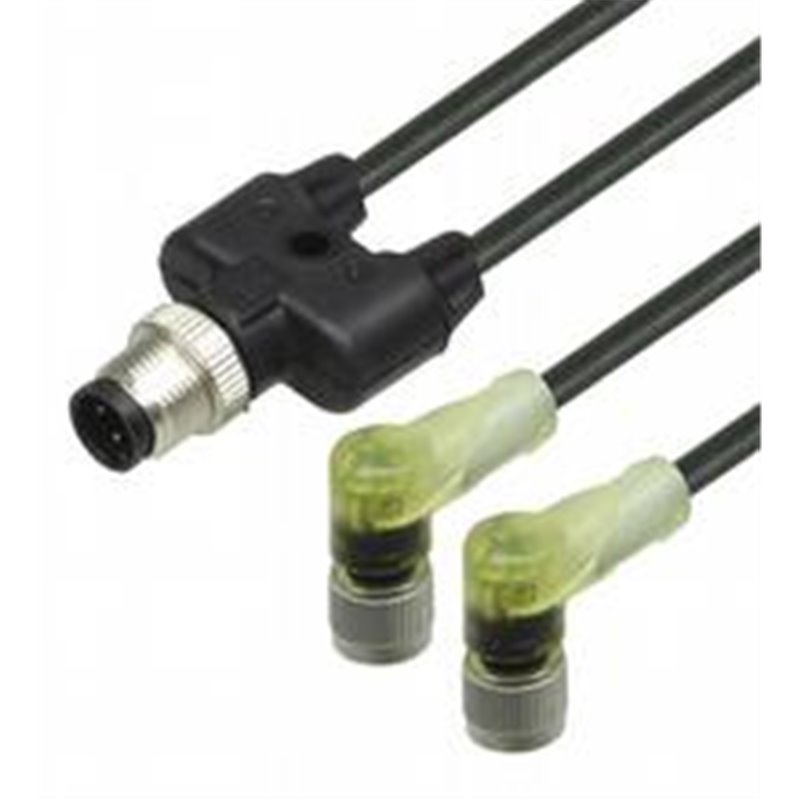

Y connection cable V1-W-E2-BK0,3M-PUR-A-T-V1-G V1-W-E2-BK0,3M-PUR-A-T-V1-G Easy merging of two signals at a single M12 slot Built-in LED, as operating and function indicator Improved resistance to weld spatter Suitable for drag chains and abrasion resistant Suitable for robotic applications / torsion resistant Free of paint wetting interfering substances Resistant to microbes and hydrolysis cURus approval Halogen-free Knurled nut suitable for tool assembly Immunity to vibration, with mechanical latching Y connection cable V1-W-E2-BK0,3M-PUR-A-T-V1-G V1-W-E2-BK0,3M-PUR-A-T-V1-G Easy merging of two signals at a single M12 slot Built-in LED, as operating and function indicator Improved resistance to weld spatter Suitable for drag chains and abrasion resistant Suitable for robotic applications / torsion resistant Free of paint wetting interfering substances Resistant to microbes and hydrolysis cURus approval Halogen-free Knurled nut suitable for tool assembly Immunity to vibration, with mechanical latching

MPNs 260170, PEP260170, V1-W-E2-BK0,3M-PUR-A-T-V1-G
Codice HS 85444200
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
68,50 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Verso Stati Uniti a partire da 27,36 USD da DHL Express Worldwide
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  V1-W-E2-BK0,3M-PUR-A-T-V1-G Product Description Y connection cable M12 plug straight A-coded 4-pin to 2x M12 socket angled A-coded LED 4-pin, 2x PUR cable weld spatter resistant black, UL approved, drag chain suitable, torsion resistant General specifications Connector 1 Connectionsocket Construction typeM12 Styleangled Lockingscrew connection Number of pins4 CodingA-coded Connector 2 Connectionsocket Construction typeM12 Styleangled Lockingscrew connection Number of pins4 CodingA-coded Connector 3 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingA-coded UL File NumberE231213 Indicators/operating means LED greenOperating display LED yellowFunctional display pin 4 Electrical specifications Operating voltagemax. 24 V DC -20 % / +25 % Operating currentmax. 4 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 FlammabilityUL 1581; DIN EN 60332-2-2 Halogen-freeDIN VDE 0472-815 IEC 60754-1 Microbial resistanceDIN EN 50525-2-21 / DIN VDE 0282-10 Hydrolysis resistanceDIN EN 50525-2-21 Approvals and certificates UL approvalAWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable) Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-25 ... 80 °C (-13 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP67 / IP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 6 Sheath diameter4.3 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 80 N / 300 mm Sheath colorblack (similar to RAL 9005) Number of cores4 Core cross section0.34 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core construction42 x 0.1 mm ∅ LengthL1 = 0.3 mL2 = 0.3 m Cable codeLi F 9Y 11Y 4 x 0,34 Drag chain suitability Drag chain cyclesmin. 5000000 Motion velocitymax. 3.3 m/s Traverse distancemax. 5 m Accelerationmax. 5 m/s2 Torsion cyclesmin. 1000000 Torsional stress± 180 °/m Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP Weld spatter resistanceyes Chemical resistancegood Oil resistanceyes Cooling lubricant resistanceyes Microbial resistanceyes Hydrolysis resistanceyes FlammabilityFT2 Classifications SystemClasscode ECLASS 11.027440112 ECLASS 10.0.127440112 ECLASS 9.027440106 ECLASS 8.027440312 ECLASS 5.127279201 ETIM 8.0EC002585 ETIM 7.0EC002585 ETIM 6.0EC002585 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V1-W-E2-BK0,3M-PUR-A-T-V1-G Product Description Y connection cable M12 plug straight A-coded 4-pin to 2x M12 socket angled A-coded LED 4-pin, 2x PUR cable weld spatter resistant black, UL approved, drag chain suitable, torsion resistant General specifications Connector 1 Connectionsocket Construction typeM12 Styleangled Lockingscrew connection Number of pins4 CodingA-coded Connector 2 Connectionsocket Construction typeM12 Styleangled Lockingscrew connection Number of pins4 CodingA-coded Connector 3 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingA-coded UL File NumberE231213 Indicators/operating means LED greenOperating display LED yellowFunctional display pin 4 Electrical specifications Operating voltagemax. 24 V DC -20 % / +25 % Operating currentmax. 4 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 FlammabilityUL 1581; DIN EN 60332-2-2 Halogen-freeDIN VDE 0472-815 IEC 60754-1 Microbial resistanceDIN EN 50525-2-21 / DIN VDE 0282-10 Hydrolysis resistanceDIN EN 50525-2-21 Approvals and certificates UL approvalAWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable) Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-25 ... 80 °C (-13 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP67 / IP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 6 Sheath diameter4.3 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 80 N / 300 mm Sheath colorblack (similar to RAL 9005) Number of cores4 Core cross section0.34 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core construction42 x 0.1 mm ∅ LengthL1 = 0.3 mL2 = 0.3 m Cable codeLi F 9Y 11Y 4 x 0,34 Drag chain suitability Drag chain cyclesmin. 5000000 Motion velocitymax. 3.3 m/s Traverse distancemax. 5 m Accelerationmax. 5 m/s2 Torsion cyclesmin. 1000000 Torsional stress± 180 °/m Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP Weld spatter resistanceyes Chemical resistancegood Oil resistanceyes Cooling lubricant resistanceyes Microbial resistanceyes Hydrolysis resistanceyes FlammabilityFT2 Classifications SystemClasscode ECLASS 11.027440112 ECLASS 10.0.127440112 ECLASS 9.027440106 ECLASS 8.027440312 ECLASS 5.127279201 ETIM 8.0EC002585 ETIM 7.0EC002585 ETIM 6.0EC002585 ETIM 5.0EC002585 UNSPSC 12.131251501
