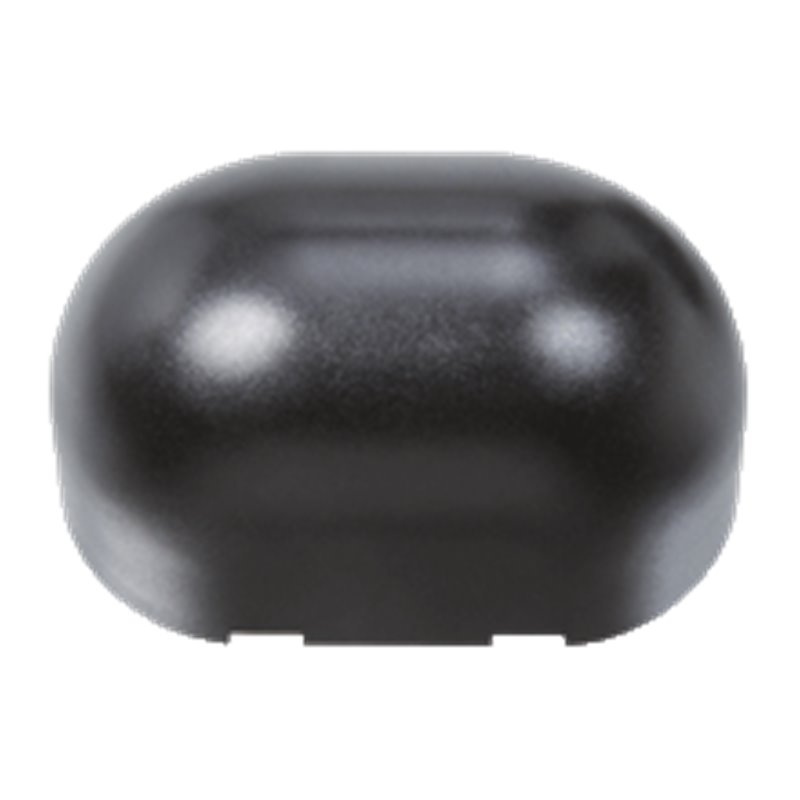

RaDec-M PEPPERL+FUCHS - Part number: 214959

Datasheet excerpt: Technical data of  RaDec-M Product Description Standard radar motion sensor with basic functionality, detection range 2 m x 4.5 m, max. installation height 4 m, black housing, relay contact output, cable connection General specifications Sensing rangebroad: 2000x 4500 mm (DxW) at 2200 mm mounting height and 30° tilt angle narrow: 4500x 2000 mm (DxW) at 2200 mm mounting height and 30° tilt angle Function principleMicrowave module Detection speedmin. 0.1 m/s Setting angle0 ... 90 ° in 5 ° increments Operating frequency24.15 ... 24.25 GHz K-Band Operating modeRadar motion sensor Transmitter radiated power (EIRP)< 20 dBm Functional safety related parameters MTTFd970 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Function indicatorLED red Control elementspotentiometer Control elementssensitivity adjustment Electrical specifications Operating voltage12 ... 36 V DC , 12 ... 28 V AC No-load supply current≤ 50 mA at 24 V DC Power consumption≤ 1.7 W Output Switching typeNO/NC Signal outputrelay Switching voltagemax. 48 V AC / 48 V DC Switching currentmax. 0.5 A AC / 1 A DC Switching powermax. 24 W / 60 VA De-energized delay0.5 s Approvals and certificates CE conformity2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed. EAC conformityTR CU 020/2011 FCC approvalNo - Use in North America is not permitted. Ambient conditions Operating temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Relative humiditymax. 90 % non-condensing Mechanical specifications Mounting heightmax. 4000 mm Degree of protectionIP54 ConnectionConnecting cable 2.5 m included with delivery Material Housingblack polycarbonate (PC) Mass130 g Dimensions101 mm x 60 mm x 59 mm Suitable series SeriesRaDec Classifications SystemClasscode ECLASS 11.027280890 ECLASS 10.0.127280890 ECLASS 9.027280890 ECLASS 8.027280890 ECLASS 5.127270990 ETIM 8.0EC000138 ETIM 7.0EC000138 ETIM 6.0EC000138 ETIM 5.0EC000138 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  RaDec-M Product Description Standard radar motion sensor with basic functionality, detection range 2 m x 4.5 m, max. installation height 4 m, black housing, relay contact output, cable connection General specifications Sensing rangebroad: 2000x 4500 mm (DxW) at 2200 mm mounting height and 30° tilt angle narrow: 4500x 2000 mm (DxW) at 2200 mm mounting height and 30° tilt angle Function principleMicrowave module Detection speedmin. 0.1 m/s Setting angle0 ... 90 ° in 5 ° increments Operating frequency24.15 ... 24.25 GHz K-Band Operating modeRadar motion sensor Transmitter radiated power (EIRP)< 20 dBm Functional safety related parameters MTTFd970 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Function indicatorLED red Control elementspotentiometer Control elementssensitivity adjustment Electrical specifications Operating voltage12 ... 36 V DC , 12 ... 28 V AC No-load supply current≤ 50 mA at 24 V DC Power consumption≤ 1.7 W Output Switching typeNO/NC Signal outputrelay Switching voltagemax. 48 V AC / 48 V DC Switching currentmax. 0.5 A AC / 1 A DC Switching powermax. 24 W / 60 VA De-energized delay0.5 s Approvals and certificates CE conformity2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed. EAC conformityTR CU 020/2011 FCC approvalNo - Use in North America is not permitted. Ambient conditions Operating temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Relative humiditymax. 90 % non-condensing Mechanical specifications Mounting heightmax. 4000 mm Degree of protectionIP54 ConnectionConnecting cable 2.5 m included with delivery Material Housingblack polycarbonate (PC) Mass130 g Dimensions101 mm x 60 mm x 59 mm Suitable series SeriesRaDec Classifications SystemClasscode ECLASS 11.027280890 ECLASS 10.0.127280890 ECLASS 9.027280890 ECLASS 8.027280890 ECLASS 5.127270990 ETIM 8.0EC000138 ETIM 7.0EC000138 ETIM 6.0EC000138 ETIM 5.0EC000138 UNSPSC 12.139121528
