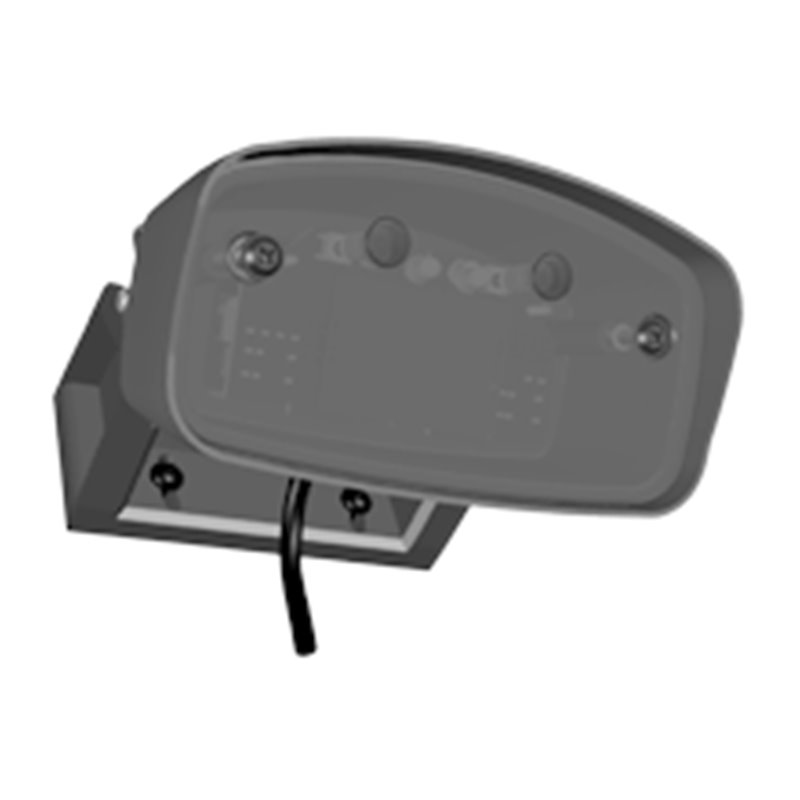

RAVE-D-NA PEPPERL+FUCHS - Part number: 285648

Datasheet excerpt: Technical data of  RAVE-D-NA Product Description Premium industrial door opener with the ability to differentiate between people and vehicles, can be operated remotely, detection range 9 m x 6.5 m, max. installation height 7 m, black housing, 2 relay contact outputs, cable connection General specifications Sensing range9000 x 6500 mm (d x w) at installation height of 5000 mm and 45° angle 10000 x 5500 mm (d x w) at installation height of 7000 mm and 45° angle Function principleMicrowave module Detection speedmin. 0.1 m/s MarkingFCC Setting angle-90 ... 90 ° in 15 ° increments Operating frequency24.15 ... 24.25 GHz K-Band Operating modeRadar motion sensor Transmitter radiated power (EIRP)< 13 dBm Functional safety related parameters MTTFd620 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Function indicatorLED red/green Control elementsProgramming push-button for selection of operating modes : Direction detection , Cross traffic suppression , Vehicle detection , Switching type , relay hold time Control elementsProgramming via 2 keys , alternative via remote control (Accessories ordered separately) Electrical specifications Operating voltage12 ... 36 V DC , 12 ... 28 V AC No-load supply current≤ 50 mA at 24 V DC Power consumption≤ 1 W Output Switching typeNO/NC Signal output2 relay outputs Switching voltagemax. 48 V AC / 48 V DC Switching currentmax. 0.5 A AC / 1 A DC Switching powermax. 24 W / 60 VA De-energized delay0.5 ... 300 s adjustable Approvals and certificates FCC approvalFCC Rules part 15 / This device can be used in the USA. RSS-310 of Industry Canada / This device can be used in Canada. ApprovalsUse in countries within the European Union is not permitted. In other countries, all applicable national regulations must be observed. Ambient conditions Operating temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-30 ... 60 °C (-22 ... 140 °F) Relative humiditymax. 90 % non-condensing Mechanical specifications Mounting height2500 ... 7000 mm Degree of protectionIP67 Connectionplug-in screw terminals 4-pin and 2-pin , 8 m connecting cable included with delivery Material HousingPolycarbonate (PC) , anthracite Mass650 g Dimensions 131 mm x 73 mm x 136 mm Suitable series SeriesRAVE Classifications SystemClasscode ECLASS 11.027280890 ECLASS 10.0.127280890 ECLASS 9.027280890 ECLASS 8.027280890 ECLASS 5.127270990 ETIM 8.0EC000138 ETIM 7.0EC000138 ETIM 6.0EC000138 ETIM 5.0EC000138 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  RAVE-D-NA Product Description Premium industrial door opener with the ability to differentiate between people and vehicles, can be operated remotely, detection range 9 m x 6.5 m, max. installation height 7 m, black housing, 2 relay contact outputs, cable connection General specifications Sensing range9000 x 6500 mm (d x w) at installation height of 5000 mm and 45° angle 10000 x 5500 mm (d x w) at installation height of 7000 mm and 45° angle Function principleMicrowave module Detection speedmin. 0.1 m/s MarkingFCC Setting angle-90 ... 90 ° in 15 ° increments Operating frequency24.15 ... 24.25 GHz K-Band Operating modeRadar motion sensor Transmitter radiated power (EIRP)< 13 dBm Functional safety related parameters MTTFd620 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Function indicatorLED red/green Control elementsProgramming push-button for selection of operating modes : Direction detection , Cross traffic suppression , Vehicle detection , Switching type , relay hold time Control elementsProgramming via 2 keys , alternative via remote control (Accessories ordered separately) Electrical specifications Operating voltage12 ... 36 V DC , 12 ... 28 V AC No-load supply current≤ 50 mA at 24 V DC Power consumption≤ 1 W Output Switching typeNO/NC Signal output2 relay outputs Switching voltagemax. 48 V AC / 48 V DC Switching currentmax. 0.5 A AC / 1 A DC Switching powermax. 24 W / 60 VA De-energized delay0.5 ... 300 s adjustable Approvals and certificates FCC approvalFCC Rules part 15 / This device can be used in the USA. RSS-310 of Industry Canada / This device can be used in Canada. ApprovalsUse in countries within the European Union is not permitted. In other countries, all applicable national regulations must be observed. Ambient conditions Operating temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-30 ... 60 °C (-22 ... 140 °F) Relative humiditymax. 90 % non-condensing Mechanical specifications Mounting height2500 ... 7000 mm Degree of protectionIP67 Connectionplug-in screw terminals 4-pin and 2-pin , 8 m connecting cable included with delivery Material HousingPolycarbonate (PC) , anthracite Mass650 g Dimensions 131 mm x 73 mm x 136 mm Suitable series SeriesRAVE Classifications SystemClasscode ECLASS 11.027280890 ECLASS 10.0.127280890 ECLASS 9.027280890 ECLASS 8.027280890 ECLASS 5.127270990 ETIM 8.0EC000138 ETIM 7.0EC000138 ETIM 6.0EC000138 ETIM 5.0EC000138 UNSPSC 12.139121528
