RMS-M-RC PEPPERL+FUCHS - Part number: 194554

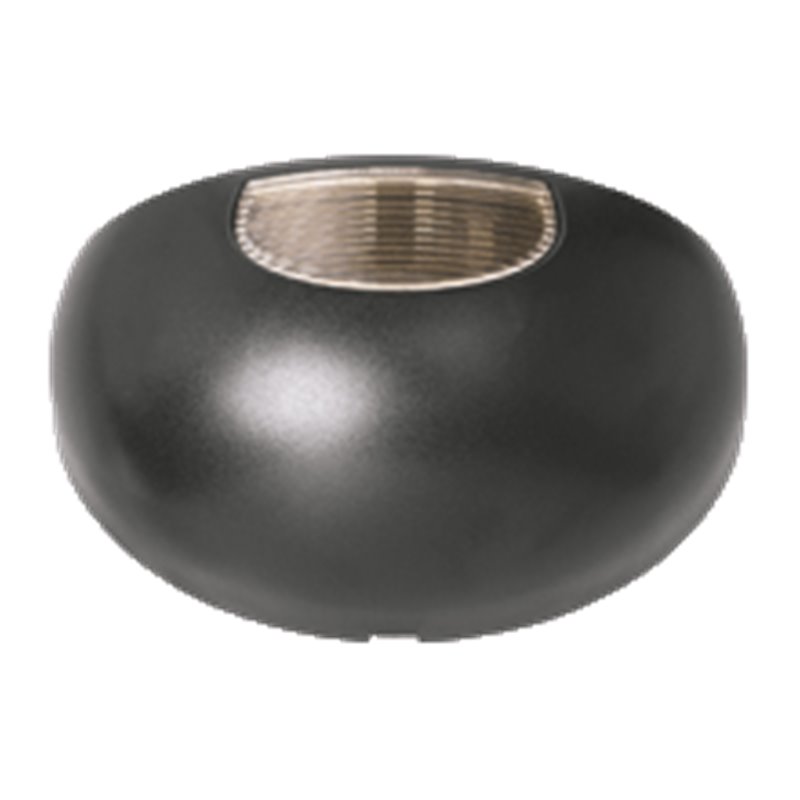

Datasheet excerpt: Technical data of  RMS-M-RC Product Description Premium radar motion sensor with basic functionality, can be operated remotely, detection range 4.5 m x 2 m, max. installation height 4 m, black housing, relay contact output, cable connection General specifications Sensing rangebroad: 2000x 4500 mm (DxW) at 2200 mm mounting height and 30° tilt angle narrow: 4500x 2000 mm (DxW) at 2200 mm mounting height and 30° tilt angle Function principleMicrowave module Detection speedmin. 0.1 m/s Setting angle0 ... 40 ° in 5 ° increments Operating frequency24.15 ... 24.25 GHz K-Band Operating modeRadar motion sensor Transmitter radiated power (EIRP)< 20 dBm Functional safety related parameters MTTFd850 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Function indicatorLED red/green Control elementsPotentiometer and programming button for setting: Method of connection, dropout time, response time, Interference behavior Control elementssensitivity adjustment Control elementsProgramming via menu driven remote control possible (Accessories ordered separately) Electrical specifications Operating voltage12 ... 36 V DC , 12 ... 24 V AC No-load supply current≤ 50 mA at 24 V DC Power consumption≤ 1 W Output Switching typeNO/NC Signal outputrelay Switching voltagemax. 48 V AC / 48 V DC Switching currentmax. 0.5 A AC / 1 A DC Switching powermax. 24 W / 60 VA De-energized delay0.2 ... 10 s adjustable (1 sec factory setting) Approvals and certificates CE conformity2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed. FCC approvalNo - Use in North America is not permitted. Ambient conditions Operating temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Relative humiditymax. 90 % non-condensing Mechanical specifications Mounting heightmax. 4000 mm Degree of protectionIP54 Connectionplug-in screw terminals 4-pin , 5 m connecting cable included with delivery Material HousingABS, anthracite Mass120 g Dimensions123 mm x 65 mm x 57 mm Suitable series SeriesRMS Classifications SystemClasscode ECLASS 11.027280890 ECLASS 10.0.127280890 ECLASS 9.027280890 ECLASS 8.027280890 ECLASS 5.127270990 ETIM 8.0EC000138 ETIM 7.0EC000138 ETIM 6.0EC000138 ETIM 5.0EC000138 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  RMS-M-RC Product Description Premium radar motion sensor with basic functionality, can be operated remotely, detection range 4.5 m x 2 m, max. installation height 4 m, black housing, relay contact output, cable connection General specifications Sensing rangebroad: 2000x 4500 mm (DxW) at 2200 mm mounting height and 30° tilt angle narrow: 4500x 2000 mm (DxW) at 2200 mm mounting height and 30° tilt angle Function principleMicrowave module Detection speedmin. 0.1 m/s Setting angle0 ... 40 ° in 5 ° increments Operating frequency24.15 ... 24.25 GHz K-Band Operating modeRadar motion sensor Transmitter radiated power (EIRP)< 20 dBm Functional safety related parameters MTTFd850 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Function indicatorLED red/green Control elementsPotentiometer and programming button for setting: Method of connection, dropout time, response time, Interference behavior Control elementssensitivity adjustment Control elementsProgramming via menu driven remote control possible (Accessories ordered separately) Electrical specifications Operating voltage12 ... 36 V DC , 12 ... 24 V AC No-load supply current≤ 50 mA at 24 V DC Power consumption≤ 1 W Output Switching typeNO/NC Signal outputrelay Switching voltagemax. 48 V AC / 48 V DC Switching currentmax. 0.5 A AC / 1 A DC Switching powermax. 24 W / 60 VA De-energized delay0.2 ... 10 s adjustable (1 sec factory setting) Approvals and certificates CE conformity2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed. FCC approvalNo - Use in North America is not permitted. Ambient conditions Operating temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Relative humiditymax. 90 % non-condensing Mechanical specifications Mounting heightmax. 4000 mm Degree of protectionIP54 Connectionplug-in screw terminals 4-pin , 5 m connecting cable included with delivery Material HousingABS, anthracite Mass120 g Dimensions123 mm x 65 mm x 57 mm Suitable series SeriesRMS Classifications SystemClasscode ECLASS 11.027280890 ECLASS 10.0.127280890 ECLASS 9.027280890 ECLASS 8.027280890 ECLASS 5.127270990 ETIM 8.0EC000138 ETIM 7.0EC000138 ETIM 6.0EC000138 ETIM 5.0EC000138 UNSPSC 12.139121528
