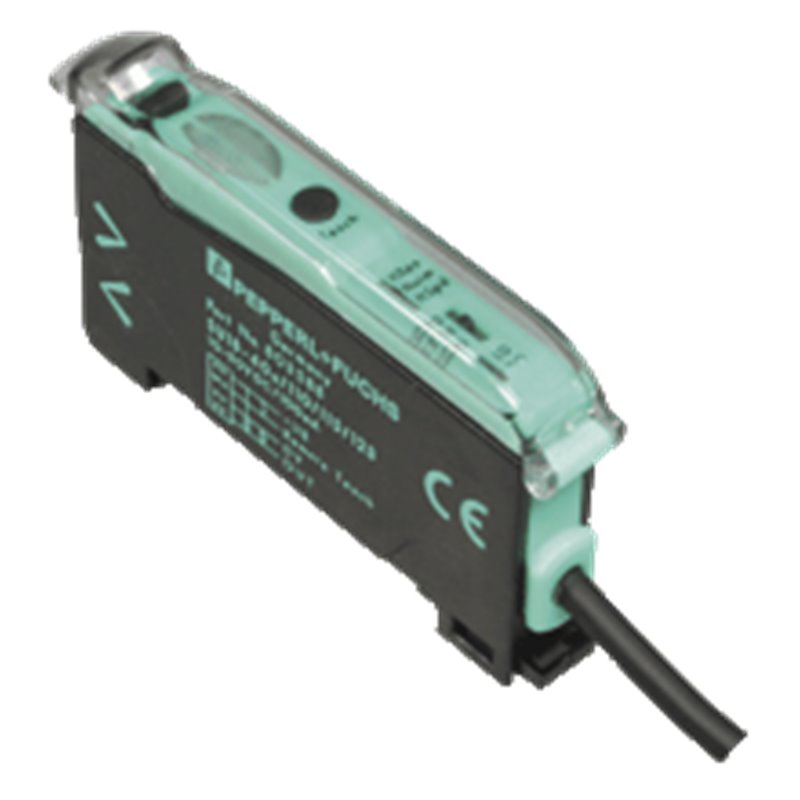

SU18-40a/110/115/126a PEPPERL+FUCHS - Part number: 803586

Datasheet excerpt: Technical data of  SU18-40a/110/115/126a Product Description Fiber optic sensor for glass fiber optic and plastic fiber optic, slim design, range up to 450 mm, red light, 3 response times available, self-diagnostic function, light/dark on, push-pull output, fixed cable General specifications Sensor rangeup to 150 mm (KLR-C02-2,2-2,0-K146) Detection rangeup to 450 mm (KLE-C01-2,2-2,0-K116) Light sourceLED Light typemodulated visible red light , 660 nm Ambient light limit10000 Lux Functional safety related parameters MTTFd690 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (0.8 Hz) , short-circuit : LED green flashing (4 Hz) Function indicatorLED yellow: static illumination switching state, flashes when falling short of the stability control Control elementsTeach-In key slide switch 2 positions: light/dark switching slide switch 3 positions: timer function - timer off, on delay 40 ms, off-delay 40 ms slide switch 3 positions: operating mode - normal, high speed , high resolution Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current≤ 30 mA Output Pre-fault indication output1 push-pull (4 in 1) output NPN/PNP , short-circuit protected Switching typelight/dark on, switchable Signal output1 push-pull (4 in 1) output NPN/PNP , short-circuit protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Voltage drop≤ 2 V DC at 100 mA ; ≤ 0.7 V at 10 mA Switching frequencyStandard mode: 3 kHz , High speed mode: 6 kHz , High resolution: 500 Hz Response timeStandard mode: 160 µs , High speed mode: 80 µs , High resolution: 1 ms Repeat accuracy≤ 0.5 % of adjusted sensor range Compliance with standards and directives Standard conformity Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-10 ... 55 °C (14 ... 131 °F) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Housing width9 mm Housing height34.5 mm Housing depth62.3 mm Degree of protectionIP50 Connection2 m PVC cable, 4 x 0,14 mm2 Material HousingPC Mass45 g Classifications SystemClasscode ECLASS 11.027270905 ECLASS 10.0.127270905 ECLASS 9.027270905 ECLASS 8.027270905 ECLASS 5.127270905 ETIM 8.0EC002651 ETIM 7.0EC002651 ETIM 6.0EC002651 ETIM 5.0EC002651 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  SU18-40a/110/115/126a Product Description Fiber optic sensor for glass fiber optic and plastic fiber optic, slim design, range up to 450 mm, red light, 3 response times available, self-diagnostic function, light/dark on, push-pull output, fixed cable General specifications Sensor rangeup to 150 mm (KLR-C02-2,2-2,0-K146) Detection rangeup to 450 mm (KLE-C01-2,2-2,0-K116) Light sourceLED Light typemodulated visible red light , 660 nm Ambient light limit10000 Lux Functional safety related parameters MTTFd690 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (0.8 Hz) , short-circuit : LED green flashing (4 Hz) Function indicatorLED yellow: static illumination switching state, flashes when falling short of the stability control Control elementsTeach-In key slide switch 2 positions: light/dark switching slide switch 3 positions: timer function - timer off, on delay 40 ms, off-delay 40 ms slide switch 3 positions: operating mode - normal, high speed , high resolution Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current≤ 30 mA Output Pre-fault indication output1 push-pull (4 in 1) output NPN/PNP , short-circuit protected Switching typelight/dark on, switchable Signal output1 push-pull (4 in 1) output NPN/PNP , short-circuit protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Voltage drop≤ 2 V DC at 100 mA ; ≤ 0.7 V at 10 mA Switching frequencyStandard mode: 3 kHz , High speed mode: 6 kHz , High resolution: 500 Hz Response timeStandard mode: 160 µs , High speed mode: 80 µs , High resolution: 1 ms Repeat accuracy≤ 0.5 % of adjusted sensor range Compliance with standards and directives Standard conformity Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-10 ... 55 °C (14 ... 131 °F) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Housing width9 mm Housing height34.5 mm Housing depth62.3 mm Degree of protectionIP50 Connection2 m PVC cable, 4 x 0,14 mm2 Material HousingPC Mass45 g Classifications SystemClasscode ECLASS 11.027270905 ECLASS 10.0.127270905 ECLASS 9.027270905 ECLASS 8.027270905 ECLASS 5.127270905 ETIM 8.0EC002651 ETIM 7.0EC002651 ETIM 6.0EC002651 ETIM 5.0EC002651 UNSPSC 12.139121528
