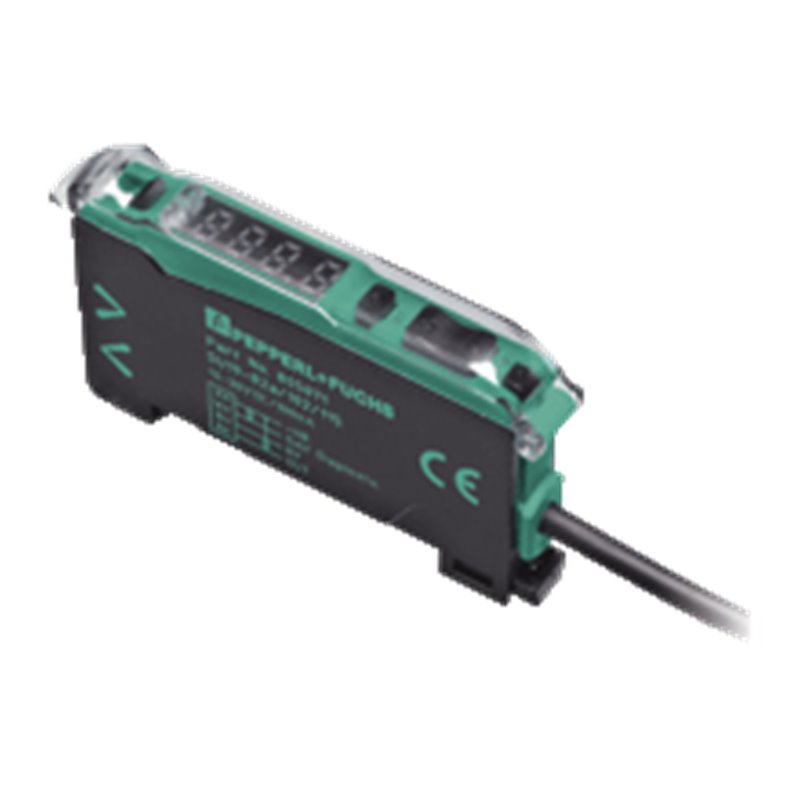

SU19.1/110/115a PEPPERL+FUCHS - Part number: 807915

Datasheet excerpt: Technical data of  SU19.1/110/115a Product Description Classic Series fiber optic sensor with display, slave module, push-pull output, fixed cable with M8 plug General specifications Sensor rangeup to 150 mm (KLR-C02-2,2-2,0-K146) Detection rangeup to 450 mm (KLE-C01-2,2-2,0-K116) Light sourceLED Light typemodulated visible red light , 660 nm Ambient light limit10000 Lux Gang mountingmaximum 20 units Functional safety related parameters MTTFd500 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorPower on: static illumination , Undervoltage indicator: Green LED, pulsing (0.8 Hz) , short-circuit : LED green flashing (4 Hz) Diagnostics indicator7-segment display Function indicatorLED yellow: static illumination switching state, flashes when falling short of the stability control Control elementsButton (Mode) for menu choice ; Button (Set) for Teach-In ; Button (Up/Down) for fine adjusting and parameterization Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current≤ 30 mA Output Switching typelight/dark on selectable programmable Signal output1 push-pull (4 in 1) output NPN/PNP , short-circuit protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Voltage drop≤ 2 V DC at 100 mA ; ≤ 0.7 V at 10 mA Switching frequencyHigh speed mode: 16 kHz , Standard mode: 3 kHz , High resolution: 250 Hz ~ 3 kHz (selection by the sensor), Automatic: 250 Hz , Glass mode: 250 Hz Response timeHigh speed mode: 30 µs , Standard mode: 160 µs , High resolution: 2 ms , Automatic: 160 µs ~ 2 ms (choice by the sensor), Glass mode: 2 ms Repeat accuracy≤ 0.5 % of adjusted sensor range Timer functionON-delay, OFF-delay, one shot, pulse extension ; adjustable 0 ... 999 ms in 1 ms increments Compliance with standards and directives Standard conformity Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-10 ... 55 °C (14 ... 131 °F) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Housing width9 mm Housing height34.5 mm Housing depth62.3 mm Degree of protectionIP50 Connection200 mm, PVC cable with M8 connector, 4-pin Material HousingPC Mass45 g Classifications SystemClasscode ECLASS 11.027270905 ECLASS 10.0.127270905 ECLASS 9.027270905 ECLASS 8.027270905 ECLASS 5.127270905 ETIM 8.0EC002651 ETIM 7.0EC002651 ETIM 6.0EC002651 ETIM 5.0EC002651 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  SU19.1/110/115a Product Description Classic Series fiber optic sensor with display, slave module, push-pull output, fixed cable with M8 plug General specifications Sensor rangeup to 150 mm (KLR-C02-2,2-2,0-K146) Detection rangeup to 450 mm (KLE-C01-2,2-2,0-K116) Light sourceLED Light typemodulated visible red light , 660 nm Ambient light limit10000 Lux Gang mountingmaximum 20 units Functional safety related parameters MTTFd500 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorPower on: static illumination , Undervoltage indicator: Green LED, pulsing (0.8 Hz) , short-circuit : LED green flashing (4 Hz) Diagnostics indicator7-segment display Function indicatorLED yellow: static illumination switching state, flashes when falling short of the stability control Control elementsButton (Mode) for menu choice ; Button (Set) for Teach-In ; Button (Up/Down) for fine adjusting and parameterization Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current≤ 30 mA Output Switching typelight/dark on selectable programmable Signal output1 push-pull (4 in 1) output NPN/PNP , short-circuit protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Voltage drop≤ 2 V DC at 100 mA ; ≤ 0.7 V at 10 mA Switching frequencyHigh speed mode: 16 kHz , Standard mode: 3 kHz , High resolution: 250 Hz ~ 3 kHz (selection by the sensor), Automatic: 250 Hz , Glass mode: 250 Hz Response timeHigh speed mode: 30 µs , Standard mode: 160 µs , High resolution: 2 ms , Automatic: 160 µs ~ 2 ms (choice by the sensor), Glass mode: 2 ms Repeat accuracy≤ 0.5 % of adjusted sensor range Timer functionON-delay, OFF-delay, one shot, pulse extension ; adjustable 0 ... 999 ms in 1 ms increments Compliance with standards and directives Standard conformity Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-10 ... 55 °C (14 ... 131 °F) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Housing width9 mm Housing height34.5 mm Housing depth62.3 mm Degree of protectionIP50 Connection200 mm, PVC cable with M8 connector, 4-pin Material HousingPC Mass45 g Classifications SystemClasscode ECLASS 11.027270905 ECLASS 10.0.127270905 ECLASS 9.027270905 ECLASS 8.027270905 ECLASS 5.127270905 ETIM 8.0EC002651 ETIM 7.0EC002651 ETIM 6.0EC002651 ETIM 5.0EC002651 UNSPSC 12.139121528
