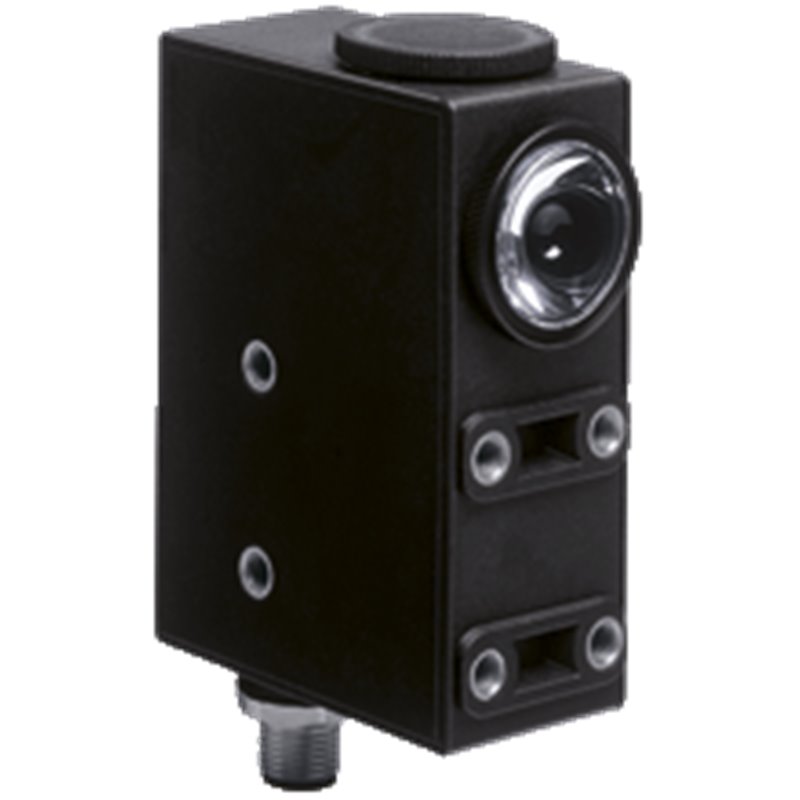

DF20/9S20/49/124 PEPPERL+FUCHS - Part number: 418103

Datasheet excerpt: Technical data of  DF20/9S20/49/124 Product Description Print mark color sensor, 9.5 mm detection range, RGB light with rectangular light spot, external Teach-In, Teach-In button, timer function, NPN output, PNP output, M12 plug General specifications Sensor range9.5 mm ± 2 mm Light source3 LEDs (R,G,B) Light typeVisible green/red/blue, modulated light Light spot representationrectangular 1 mm x 4 mm Angle deviationmax. ± 3° Functional safety related parameters MTTFd650 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Function indicatorLED yellow, lights up if print mark is detectedflashes, if no safe operation is possible Control elementsTeach-In key Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current≤ 55 mA Input Function inputTeach-In input Output Switching typePNP switches according to +UB, NPN according to 0 V for detected mark Signal output1 PNP and 1 NPN short-circuit protected, open collector, synchronized-switching Switching voltagePNP: ≥ (+UB -2.5 V) , NPN: ≤ 1.5 V Switching currentmax. 200 mA Switching frequency1.65 kHz Response time300 µs Timer functionImpulsed time element off-delay 20 ms Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 CCC approvalCCC approval / marking not required for products rated ≤36 V ApprovalsCE Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-20 ... 75 °C (-4 ... 167 °F) Mechanical specifications Housing width33 mm Housing height85.5 mm Housing depth60.8 mm Degree of protectionIP67 Connection5-pin, M12 x 1 connector Material HousingPC (glass-fiber-reinforced Makrolon) Optical faceglass Mass200 g Classifications SystemClasscode ECLASS 11.027270907 ECLASS 10.0.127270907 ECLASS 9.027270907 ECLASS 8.027270907 ECLASS 5.127270907 ETIM 8.0EC001817 ETIM 7.0EC001817 ETIM 6.0EC001817 ETIM 5.0EC001817 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  DF20/9S20/49/124 Product Description Print mark color sensor, 9.5 mm detection range, RGB light with rectangular light spot, external Teach-In, Teach-In button, timer function, NPN output, PNP output, M12 plug General specifications Sensor range9.5 mm ± 2 mm Light source3 LEDs (R,G,B) Light typeVisible green/red/blue, modulated light Light spot representationrectangular 1 mm x 4 mm Angle deviationmax. ± 3° Functional safety related parameters MTTFd650 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Function indicatorLED yellow, lights up if print mark is detectedflashes, if no safe operation is possible Control elementsTeach-In key Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current≤ 55 mA Input Function inputTeach-In input Output Switching typePNP switches according to +UB, NPN according to 0 V for detected mark Signal output1 PNP and 1 NPN short-circuit protected, open collector, synchronized-switching Switching voltagePNP: ≥ (+UB -2.5 V) , NPN: ≤ 1.5 V Switching currentmax. 200 mA Switching frequency1.65 kHz Response time300 µs Timer functionImpulsed time element off-delay 20 ms Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 CCC approvalCCC approval / marking not required for products rated ≤36 V ApprovalsCE Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-20 ... 75 °C (-4 ... 167 °F) Mechanical specifications Housing width33 mm Housing height85.5 mm Housing depth60.8 mm Degree of protectionIP67 Connection5-pin, M12 x 1 connector Material HousingPC (glass-fiber-reinforced Makrolon) Optical faceglass Mass200 g Classifications SystemClasscode ECLASS 11.027270907 ECLASS 10.0.127270907 ECLASS 9.027270907 ECLASS 8.027270907 ECLASS 5.127270907 ETIM 8.0EC001817 ETIM 7.0EC001817 ETIM 6.0EC001817 ETIM 5.0EC001817 UNSPSC 12.139121528
