DK20/35B PEPPERL+FUCHS - Part number: 418087

PEPPERL+FUCHS

confronta

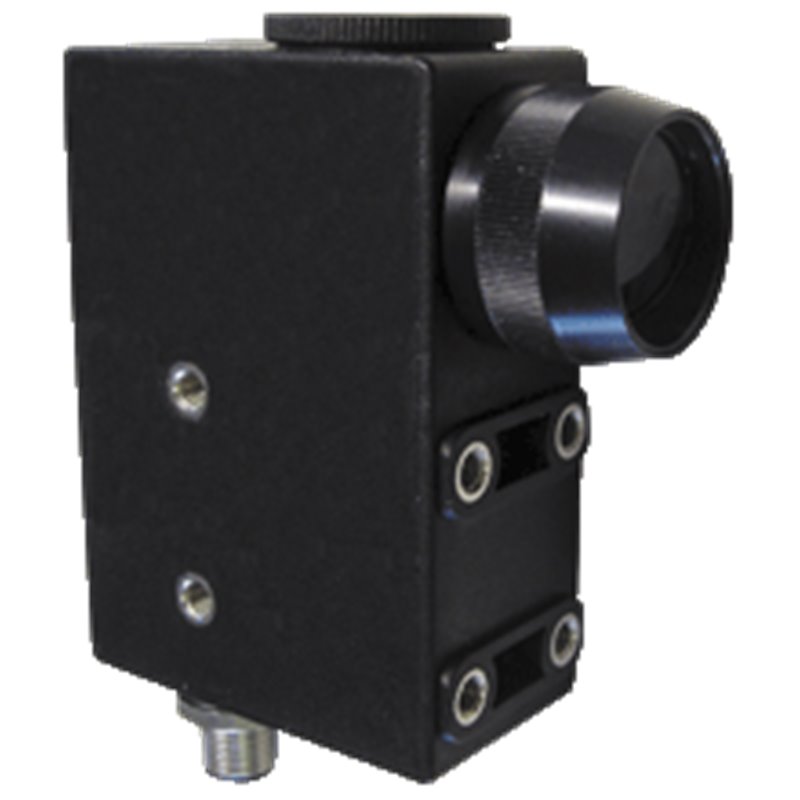

Print mark contrast sensor DK20/35B DK20/35B Diffuse mode sensor for recording any print mark Static TEACH-IN: automatic switching threshold adaptation Optical system exchangeable by 90° 30 µs response time, suitable for extremely rapid scanning processes Red transmission light

MPNs 418087, PEP418087, DK20/35B

Codice HS 90318000

Peso 0.2 kg

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Venduto da PLC-CITY® e spedito dall'Italia

Pagamenti sicuri

e molti altri

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

12 Mesi garanzia

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

Reso disponibile entro 30 giorni

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of DK20/35B Product Description Print mark contrast sensor, 50 mm detection range, red light, light/dark on, external Teach-in, push-pull output, M12 plug General specifications Sensor range50 mm Light sourceLED Light typemodulated visible red light Light spot representation3 mm x 16 mm , light spot parallel to housing Angle deviationmax. ± 3° Ambient light limit Continuous light7000 Lux Teach-Instatic Teach-In Functional safety related parameters MTTFd650 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Function indicatorLED yellow; switching operation: lights up if print mark is detectedTeach-In operation: flashing slowlyalarm display: flashing quickly, if no safe operation is possible Control elementsTeach-In key Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current≤ 70 mA Input Function inputTeach-In input Output Switching typelight/dark on switchable, results from the order of the Teach-In Signal outputPush-pull output, short-circuit protected, reverse polarity protected Switching voltagePNP: ≥ (+UB -2.5 V) , NPN: ≤ 1.5 V Switching currentmax. 200 mA Switching frequency16.5 kHz Response time30 µs Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directions Vibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed , Class 2 power source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-20 ... 75 °C (-4 ... 167 °F) Mechanical specifications Housing width33 mm Housing height85.6 mm Housing depth60.8 mm Degree of protectionIP67 Connection5-pin, M12 x 1 connector Material HousingPC (glass-fiber-reinforced Makrolon) Optical faceglass Mass200 g Classifications SystemClasscode ECLASS 11.027270906 ECLASS 10.0.127270906 ECLASS 9.027270906 ECLASS 8.027270906 ECLASS 5.127270906 ETIM 8.0EC001820 ETIM 7.0EC001820 ETIM 6.0EC001820 ETIM 5.0EC001820 UNSPSC 12.139121528 Datasheet excerpt: Technical data of DK20/35B Product Description Print mark contrast sensor, 50 mm detection range, red light, light/dark on, external Teach-in, push-pull output, M12 plug General specifications Sensor range50 mm Light sourceLED Light typemodulated visible red light Light spot representation3 mm x 16 mm , light spot parallel to housing Angle deviationmax. ± 3° Ambient light limit Continuous light7000 Lux Teach-Instatic Teach-In Functional safety related parameters MTTFd650 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Function indicatorLED yellow; switching operation: lights up if print mark is detectedTeach-In operation: flashing slowlyalarm display: flashing quickly, if no safe operation is possible Control elementsTeach-In key Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current≤ 70 mA Input Function inputTeach-In input Output Switching typelight/dark on switchable, results from the order of the Teach-In Signal outputPush-pull output, short-circuit protected, reverse polarity protected Switching voltagePNP: ≥ (+UB -2.5 V) , NPN: ≤ 1.5 V Switching currentmax. 200 mA Switching frequency16.5 kHz Response time30 µs Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directions Vibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed , Class 2 power source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-20 ... 75 °C (-4 ... 167 °F) Mechanical specifications Housing width33 mm Housing height85.6 mm Housing depth60.8 mm Degree of protectionIP67 Connection5-pin, M12 x 1 connector Material HousingPC (glass-fiber-reinforced Makrolon) Optical faceglass Mass200 g Classifications SystemClasscode ECLASS 11.027270906 ECLASS 10.0.127270906 ECLASS 9.027270906 ECLASS 8.027270906 ECLASS 5.127270906 ETIM 8.0EC001820 ETIM 7.0EC001820 ETIM 6.0EC001820 ETIM 5.0EC001820 UNSPSC 12.139121528

Ottieni il tuo preventivo personalizzato ora
