GLK18-8-450/59/161/166 PEPPERL+FUCHS - Part number: 199816

PEPPERL+FUCHS

confronta
GLK18-8-450/59/161/166 PEPPERL+FUCHS - Part number: 199816

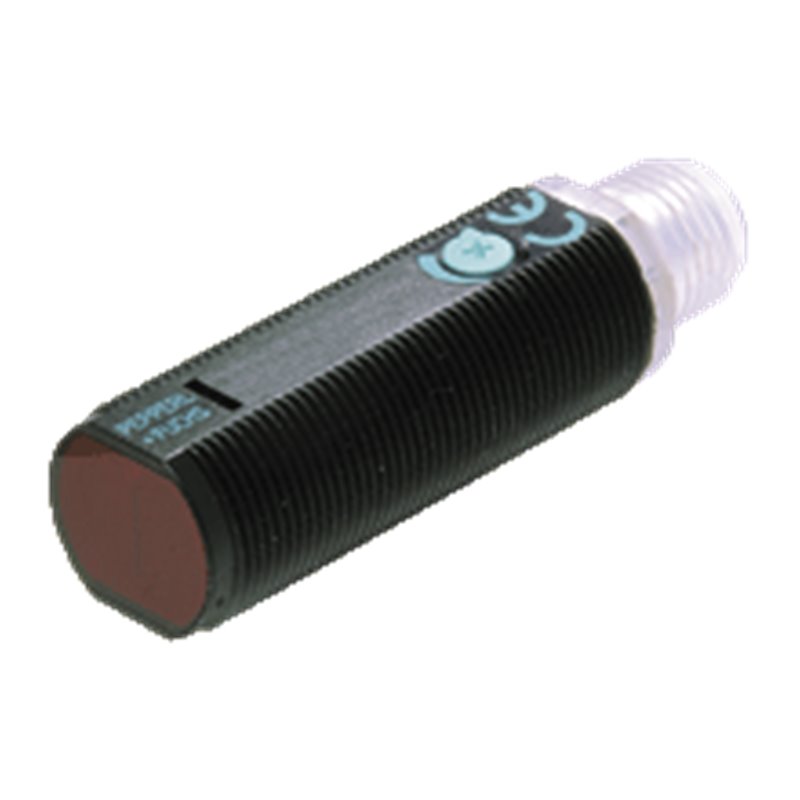

Diffuse mode sensor GLK18-8-450/59/161/166 GLK18-8-450/59/161/166 Efficient Line in a short M18 plastic housing for standard applications Very high detection range 4 LEDs indicator for 360° visibility Optimized potentiometer design for a clear control button layout in the application Universal usage at different power supplies Diffuse mode sensor GLK18-8-450/59/161/166 GLK18-8-450/59/161/166 Efficient Line in a short M18 plastic housing for standard applications Very high detection range 4 LEDs indicator for 360° visibility Optimized potentiometer design for a clear control button layout in the application Universal usage at different power supplies

MPNs 199816, PEP199816, GLK18-8-450/59/161/166
Codice HS 85365000
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  GLK18-8-450/59/161/166 Product Description Diffuse mode sensor, M18 threaded housing design, plastic housing, front optical face, 450 mm detection range, red light, dark on, AC/DC version, NPN-FET output, micro plug General specifications Detection range50 ... 450 mm adjustable Detection range max.0 ... 450 mm Reference target100 mm x 100 mm Kodak white Light sourceLED Light typemodulated visible red light , 640 nm Diameter of the light spot15 mm at 400 mm Opening angle2 ° Optical facefrontal Ambient light limit30000 Lux ; according to EN 60947-5-2:2007 Hysteresis< 15 % Accessories providedMounting aids Indicators/operating means Operation indicatorLED green, statically lit Power on Function indicatorLED yellow: lights when object is detected ; flashes when falling short of the stability control Control elementssensitivity adjustment Electrical specifications Operating voltage20 ... 250 V AC/DC No-load supply current< 2.5 mA Output Switching typedark on Signal outputN-channel MOSFET, short circuit protected Switching voltagemax. 250 V AC/DC Switching currentmax. 200 mA Voltage drop≤ 3.5 V AC/DC Switching frequency50 Hz Response time≤ 10 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity StandardsUL 508 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed, Type 1 enclosure CCC approvalCertified by China Compulsory Certification (CCC) ApprovalsCE Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP67 ConnectionMicro AC connector, 1/2" V124 ; 4-pin Material HousingPC-PBT Optical facePMMA Mass10 g Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC001821 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  GLK18-8-450/59/161/166 Product Description Diffuse mode sensor, M18 threaded housing design, plastic housing, front optical face, 450 mm detection range, red light, dark on, AC/DC version, NPN-FET output, micro plug General specifications Detection range50 ... 450 mm adjustable Detection range max.0 ... 450 mm Reference target100 mm x 100 mm Kodak white Light sourceLED Light typemodulated visible red light , 640 nm Diameter of the light spot15 mm at 400 mm Opening angle2 ° Optical facefrontal Ambient light limit30000 Lux ; according to EN 60947-5-2:2007 Hysteresis< 15 % Accessories providedMounting aids Indicators/operating means Operation indicatorLED green, statically lit Power on Function indicatorLED yellow: lights when object is detected ; flashes when falling short of the stability control Control elementssensitivity adjustment Electrical specifications Operating voltage20 ... 250 V AC/DC No-load supply current< 2.5 mA Output Switching typedark on Signal outputN-channel MOSFET, short circuit protected Switching voltagemax. 250 V AC/DC Switching currentmax. 200 mA Voltage drop≤ 3.5 V AC/DC Switching frequency50 Hz Response time≤ 10 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity StandardsUL 508 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed, Type 1 enclosure CCC approvalCertified by China Compulsory Certification (CCC) ApprovalsCE Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP67 ConnectionMicro AC connector, 1/2" V124 ; 4-pin Material HousingPC-PBT Optical facePMMA Mass10 g Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC001821 UNSPSC 12.139121528
