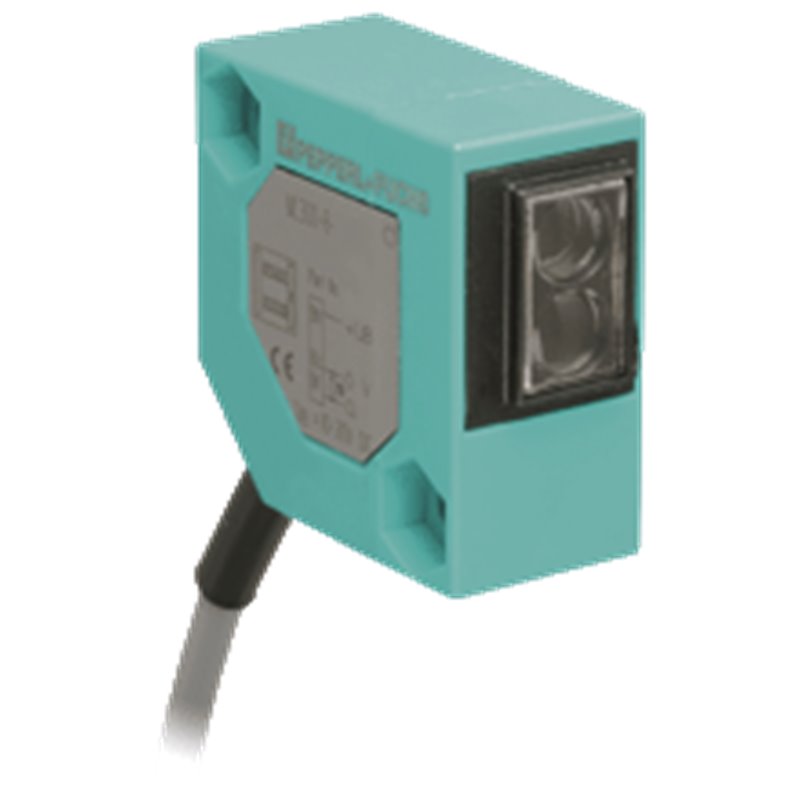

ML300-8-600-RT/59/103/115 PEPPERL+FUCHS - Part number: 238177

Datasheet excerpt: Technical data of  ML300-8-600-RT/59/103/115 Product Description Diffuse mode sensor, miniature design, 600 mm adjustable detection range, red light, dark on, PNP output, fixed cable General specifications Detection range0 ... 600 mm , adjustable Adjustment range150 ... 600 mm Reference targetstandard white 200 mm x 200 mm Light sourceLED Light typemodulated visible red light , 660 nm Diameter of the light spot130 mm at a distance of 600 mm Opening angle13 ° Ambient light limit Continuous light10000 Lux Modulated light5000 Lux Indicators/operating means Function indicatorLED yellow: lights up when output is active LED green: Sufficient stability control Control elementsSensing range adjuster Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentmax. 30 mA Output Switching typedark on Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 0.1 A Voltage drop≤ 2 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceEN 60947-5-7 30 g, 11 ms, all axes Vibration resistanceEN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 55 °C (-13 ... 131 °F) Mechanical specifications Housing width30 mm Housing height30 mm Housing depth15 mm Degree of protectionIP65 Connection2 m fixed cable Material HousingABS Optical faceplastic CablePVC Mass75 g Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC001821 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  ML300-8-600-RT/59/103/115 Product Description Diffuse mode sensor, miniature design, 600 mm adjustable detection range, red light, dark on, PNP output, fixed cable General specifications Detection range0 ... 600 mm , adjustable Adjustment range150 ... 600 mm Reference targetstandard white 200 mm x 200 mm Light sourceLED Light typemodulated visible red light , 660 nm Diameter of the light spot130 mm at a distance of 600 mm Opening angle13 ° Ambient light limit Continuous light10000 Lux Modulated light5000 Lux Indicators/operating means Function indicatorLED yellow: lights up when output is active LED green: Sufficient stability control Control elementsSensing range adjuster Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentmax. 30 mA Output Switching typedark on Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 0.1 A Voltage drop≤ 2 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceEN 60947-5-7 30 g, 11 ms, all axes Vibration resistanceEN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 55 °C (-13 ... 131 °F) Mechanical specifications Housing width30 mm Housing height30 mm Housing depth15 mm Degree of protectionIP65 Connection2 m fixed cable Material HousingABS Optical faceplastic CablePVC Mass75 g Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC001821 UNSPSC 12.139121528
