OBG8000-R200-2EP-IO-V1 PEPPERL+FUCHS - Part number: 295670-100147
NFS
Non disponibile - Backorder
Da ordinare dal produttore
258,76 USD

Tasse di importazione escluse

Devi essere autenticato

OBG8000-R200-2EP-IO-V1 PEPPERL+FUCHS - Part number: 295670-100147

PEPPERL+FUCHS

confronta
OBG8000-R200-2EP-IO-V1 PEPPERL+FUCHS - Part number: 295670-100147

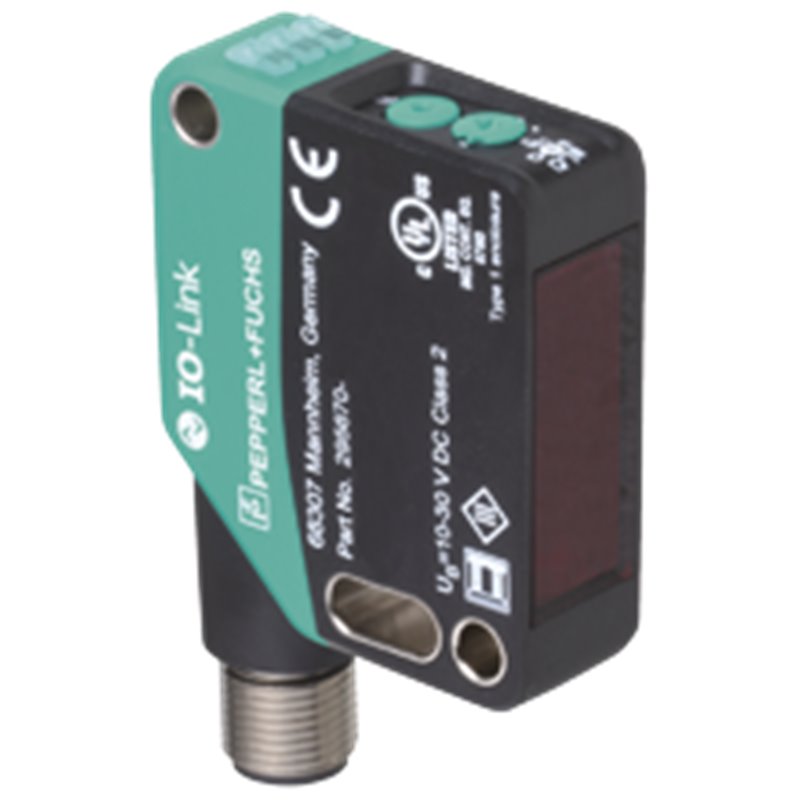

Retroreflective sensor (glass) OBG8000-R200-2EP-IO-V1 OBG8000-R200-2EP-IO-V1 Medium design with versatile mounting options Detects transparent objects, i.e., clear glass, PET and transparent films Two machines in one: clear object detection or reflection operating mode with long range High degree of protection IP69K IO-Link interface for service and process data Retroreflective sensor (glass) OBG8000-R200-2EP-IO-V1 OBG8000-R200-2EP-IO-V1 Medium design with versatile mounting options Detects transparent objects, i.e., clear glass, PET and transparent films Two machines in one: clear object detection or reflection operating mode with long range High degree of protection IP69K IO-Link interface for service and process data

MPNs 295670-100147, PEP295670-100147, OBG8000-R200-2EP-IO-V1
Codice HS 85365000
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
258,76 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  OBG8000-R200-2EP-IO-V1 Product Description Retroreflective sensor with polarization filter for clear object detection General specifications Effective detection range0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" Reflector distance0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" Threshold detection range9 m Reference targetH85-2 reflector Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Polarization filteryes Diameter of the light spot170 mm at a distance of 3.5 m Opening angle5 ° Ambient light limitEN 60947-5-2 : 18000 Lux Functional safety related parameters MTTFd600 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorYellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Control elementsTeach-In key Control elements5-step rotary switch for operating modes selection Contrast detection levels10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials Adjustable via rotary switch Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link revision1.1 Device profileIdentification and diagnosisSmart Sensor type 2.4 Device ID0x111A01 (1120769) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input 2 BitProcess data output 2 Bit SIO mode supportyes Compatible master port typeA Output Switching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency500 Hz Response time1 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width15 mm Housing height50.6 mm Housing depth41.7 mm Degree of protectionIP67 / IP69 / IP69K Connection4-pin, M12 x 1 connector, 90° rotatable Material HousingPC (Polycarbonate) Optical facePMMA Mass37 g Cable length0.3 m Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC001821 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBG8000-R200-2EP-IO-V1 Product Description Retroreflective sensor with polarization filter for clear object detection General specifications Effective detection range0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" Reflector distance0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" Threshold detection range9 m Reference targetH85-2 reflector Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Polarization filteryes Diameter of the light spot170 mm at a distance of 3.5 m Opening angle5 ° Ambient light limitEN 60947-5-2 : 18000 Lux Functional safety related parameters MTTFd600 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorYellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Control elementsTeach-In key Control elements5-step rotary switch for operating modes selection Contrast detection levels10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials Adjustable via rotary switch Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link revision1.1 Device profileIdentification and diagnosisSmart Sensor type 2.4 Device ID0x111A01 (1120769) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input 2 BitProcess data output 2 Bit SIO mode supportyes Compatible master port typeA Output Switching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency500 Hz Response time1 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width15 mm Housing height50.6 mm Housing depth41.7 mm Degree of protectionIP67 / IP69 / IP69K Connection4-pin, M12 x 1 connector, 90° rotatable Material HousingPC (Polycarbonate) Optical facePMMA Mass37 g Cable length0.3 m Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC001821 UNSPSC 12.139121528
