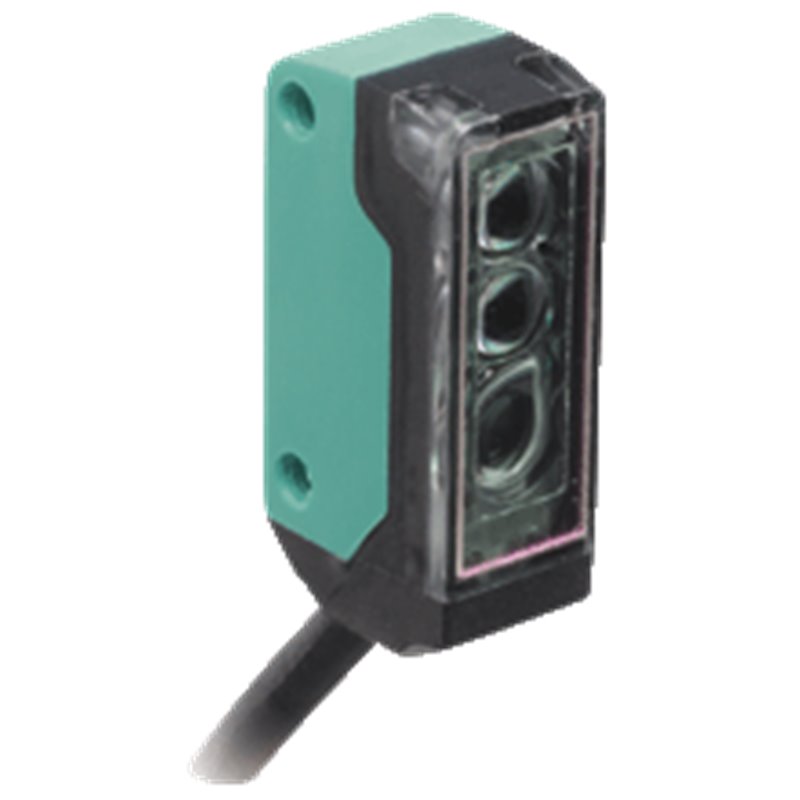

OBT30-R2-E2 PEPPERL+FUCHS - Part number: 225919

Datasheet excerpt: Technical data of  OBT30-R2-E2 Product Description Triangulation sensor with background suppression for standard applications, miniature design, 30 mm detection range, red light, light on, PNP output, fixed cable General specifications Detection range1 ... 30 mm Reference targetstandard white, 100 mm x 100 mm Light sourceLED Light typemodulated visible red light , 630 nm Black-white difference (6 %/90 %)< 7 % at 30 mm Angle deviation2 ° Diameter of the light spot2 mm at a distance of 30 mm Opening angle2 ° Optical facefrontal Ambient light limitEN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd800 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: Power on flashing: Short circuit/overload indication Function indicatorLED yellow ON: lights when object is detected Electrical specifications Operating voltage10 ... 30 V DC , class 2 No-load supply current< 10 mA Protection classIII Output Switching typeNO contact Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 50 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency800 Hz Response time600 µs Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Recognized, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Housing width7.5 mm Housing height24 mm Housing depth11.2 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC/ABS and TPU Optical faceglass CablePUR InstallationFixing screws , 2 x M2 allen head screws included with delivery Mass20 g Cable length2 m Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC002719 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBT30-R2-E2 Product Description Triangulation sensor with background suppression for standard applications, miniature design, 30 mm detection range, red light, light on, PNP output, fixed cable General specifications Detection range1 ... 30 mm Reference targetstandard white, 100 mm x 100 mm Light sourceLED Light typemodulated visible red light , 630 nm Black-white difference (6 %/90 %)< 7 % at 30 mm Angle deviation2 ° Diameter of the light spot2 mm at a distance of 30 mm Opening angle2 ° Optical facefrontal Ambient light limitEN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd800 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: Power on flashing: Short circuit/overload indication Function indicatorLED yellow ON: lights when object is detected Electrical specifications Operating voltage10 ... 30 V DC , class 2 No-load supply current< 10 mA Protection classIII Output Switching typeNO contact Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 50 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency800 Hz Response time600 µs Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Recognized, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Housing width7.5 mm Housing height24 mm Housing depth11.2 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC/ABS and TPU Optical faceglass CablePUR InstallationFixing screws , 2 x M2 allen head screws included with delivery Mass20 g Cable length2 m Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC002719 UNSPSC 12.139121528
