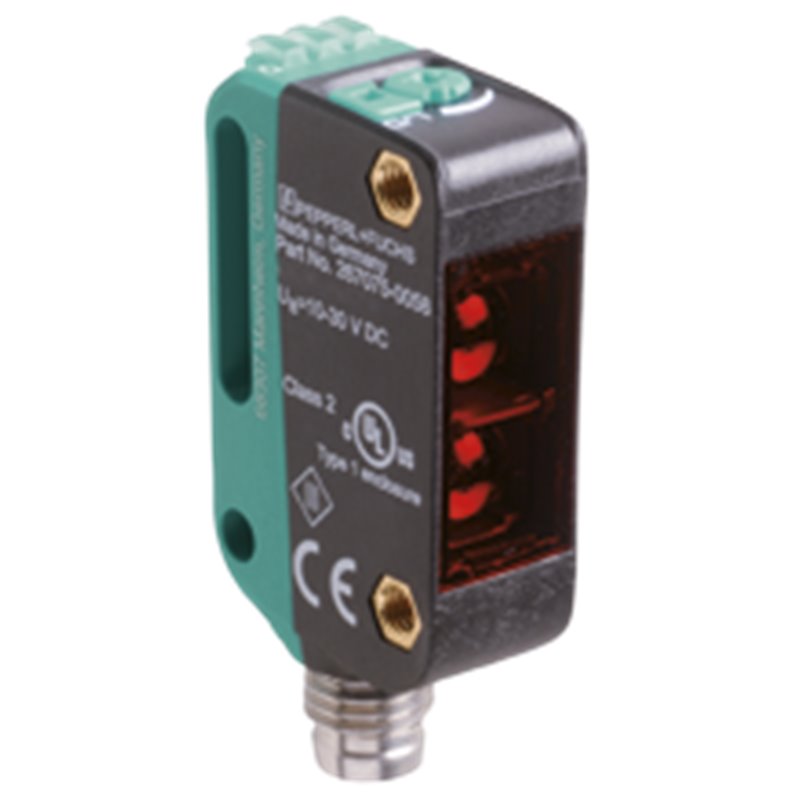

OBT300-R100-E5-V31-L PEPPERL+FUCHS - Part number: 267075-100428

Datasheet excerpt: Technical data of  OBT300-R100-E5-V31-L Product Description Laser diffuse mode sensor with adjustable background suppression General specifications Detection range7 ... 300 mm Detection range min.7 ... 25 mm Detection range max.7 ... 300 mm Adjustment range25 ... 300 mm Reference targetstandard white, 100 mm x 100 mm Light sourcelaser diode Light typemodulated visible red light Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length680 nm Beam divergence> 5 mrad d63 < 1 mm in the range of 150 mm ... 250 mm Pulse length3 µs Repetition rate13 kHz max. pulse energy10.4 nJ Black-white difference (6 %/90 %)< 5 % at 150 mm Diameter of the light spot1 mm at a distance of 200 mm Opening angle0.3 ° Ambient light limitEN 60947-5-2 : 40000 Lux Functional safety related parameters MTTFd560 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorGreen LED:Permanently lit - power onFlashing (4 Hz) - short circuit Function indicatorLED yellow:constantly on - object detectedconstantly off - object not detected Control elementsLight-on/dark-on changeover switch Control elementsSensing range adjuster Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 20 mA at 24 V supply voltage Protection classIII Output Switching typeThe switching type of the sensor is adjustable. The default setting is: Q - Pin4: PNP normally open / light-on Teach input - Pin2: High-active input Signal output1 PNP, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency1650 Hz Response time300 µs Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Laser safetyEN 60825-1:2014 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 FDA approvalIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height44.5 mm Housing depth21.5 mm Degree of protectionIP67 / IP69 / IP69K ConnectionM8 x 1 connector, 4-pin Material HousingPC (Polycarbonate) Optical facePMMA Mass10 g Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC002719 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBT300-R100-E5-V31-L Product Description Laser diffuse mode sensor with adjustable background suppression General specifications Detection range7 ... 300 mm Detection range min.7 ... 25 mm Detection range max.7 ... 300 mm Adjustment range25 ... 300 mm Reference targetstandard white, 100 mm x 100 mm Light sourcelaser diode Light typemodulated visible red light Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length680 nm Beam divergence> 5 mrad d63 < 1 mm in the range of 150 mm ... 250 mm Pulse length3 µs Repetition rate13 kHz max. pulse energy10.4 nJ Black-white difference (6 %/90 %)< 5 % at 150 mm Diameter of the light spot1 mm at a distance of 200 mm Opening angle0.3 ° Ambient light limitEN 60947-5-2 : 40000 Lux Functional safety related parameters MTTFd560 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorGreen LED:Permanently lit - power onFlashing (4 Hz) - short circuit Function indicatorLED yellow:constantly on - object detectedconstantly off - object not detected Control elementsLight-on/dark-on changeover switch Control elementsSensing range adjuster Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 20 mA at 24 V supply voltage Protection classIII Output Switching typeThe switching type of the sensor is adjustable. The default setting is: Q - Pin4: PNP normally open / light-on Teach input - Pin2: High-active input Signal output1 PNP, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency1650 Hz Response time300 µs Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Laser safetyEN 60825-1:2014 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 FDA approvalIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height44.5 mm Housing depth21.5 mm Degree of protectionIP67 / IP69 / IP69K ConnectionM8 x 1 connector, 4-pin Material HousingPC (Polycarbonate) Optical facePMMA Mass10 g Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC002719 UNSPSC 12.139121528
