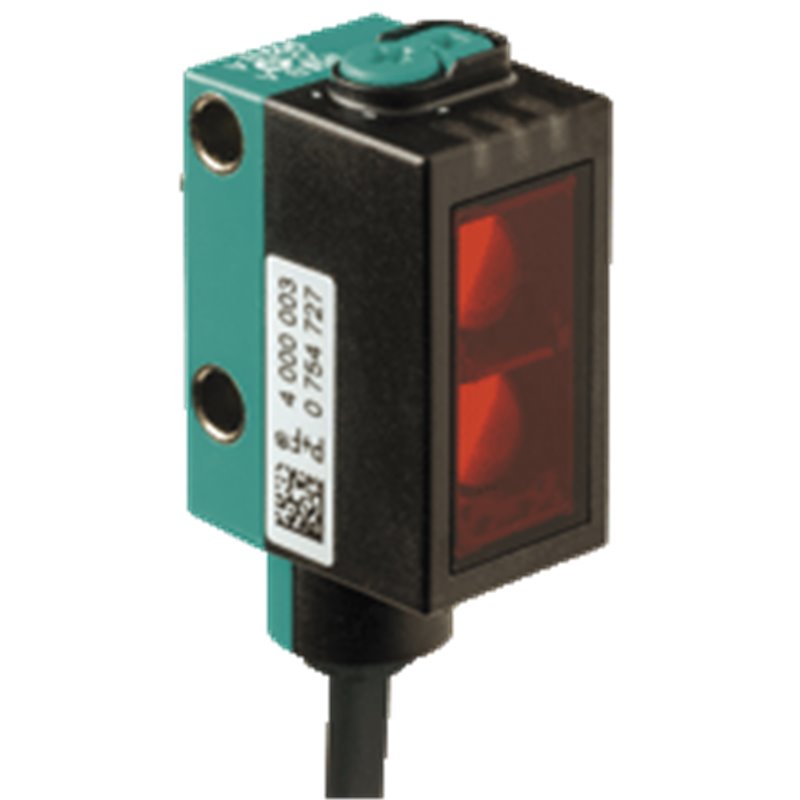

OMT50-R101-EP-IO-0,3M-V3-L PEPPERL+FUCHS - Part number: 267075-100217

Datasheet excerpt: Technical data of  OMT50-R101-EP-IO-0,3M-V3-L Product Description Measurement to object, 50 mm detection range, red laser light, laser class 1, measured value via IO-Link, push-pull output, fixed cable with M8 plug General specifications Measurement range20 ... 50 mm Reference targetstandard white, 100 mm x 100 mm Light sourcelaser diode Light typemodulated visible red light Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length680 nm Beam divergence> 5 mrad d63 d63 < 1 mm in the range of 50 mm ... 250 mm Pulse length3 µs Repetition rate3 kHz max. pulse energy15.2 nJ Angle deviationmax. +/- 1.5 ° Diameter of the light spot0.5 mm at a distance of 50 mm Opening angle0.6 ° Ambient light limitEN 60947-5-2 : 30000 Lux Resolution0.01 mm Functional safety related parameters MTTFd560 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorLED yellow:constantly on - switch output activeconstantly off - switch output inactive Control elementsTeach-In key Control elements5-step rotary switch for operating modes selection Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) Device profileSmart Sensor Transfer rateCOM2 (38.4 kBit/s) IO-Link Revision1.1 Min. cycle time3 ms Process data widthProcess data input 3 ByteProcess data output 2 Bit SIO mode supportyes Device ID0x110902 (1116418) Compatible master port typeA Output Switching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link Signal output1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Response time2 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Laser safetyEN 60825-1:2014 Measurement accuracy Temperature drift20 µm/K Warm up time5 min Repeat accuracy≤ 0.1 mm Linearity error± 0.2 mm Approvals and certificates UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 FDA approvalIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature10 ... 60 °C (50 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width13.9 mm Housing height41.4 mm Housing depth18.3 mm Degree of protectionIP67 / IP69 / IP69K Connection300 mm fixed cable with M8 x 1, 3-pin connector Material HousingPC (Polycarbonate) Optical facePMMA Mass17 g Cable length0.3 m Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC001821 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OMT50-R101-EP-IO-0,3M-V3-L Product Description Measurement to object, 50 mm detection range, red laser light, laser class 1, measured value via IO-Link, push-pull output, fixed cable with M8 plug General specifications Measurement range20 ... 50 mm Reference targetstandard white, 100 mm x 100 mm Light sourcelaser diode Light typemodulated visible red light Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length680 nm Beam divergence> 5 mrad d63 d63 < 1 mm in the range of 50 mm ... 250 mm Pulse length3 µs Repetition rate3 kHz max. pulse energy15.2 nJ Angle deviationmax. +/- 1.5 ° Diameter of the light spot0.5 mm at a distance of 50 mm Opening angle0.6 ° Ambient light limitEN 60947-5-2 : 30000 Lux Resolution0.01 mm Functional safety related parameters MTTFd560 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorLED yellow:constantly on - switch output activeconstantly off - switch output inactive Control elementsTeach-In key Control elements5-step rotary switch for operating modes selection Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) Device profileSmart Sensor Transfer rateCOM2 (38.4 kBit/s) IO-Link Revision1.1 Min. cycle time3 ms Process data widthProcess data input 3 ByteProcess data output 2 Bit SIO mode supportyes Device ID0x110902 (1116418) Compatible master port typeA Output Switching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link Signal output1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Response time2 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Laser safetyEN 60825-1:2014 Measurement accuracy Temperature drift20 µm/K Warm up time5 min Repeat accuracy≤ 0.1 mm Linearity error± 0.2 mm Approvals and certificates UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 FDA approvalIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature10 ... 60 °C (50 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width13.9 mm Housing height41.4 mm Housing depth18.3 mm Degree of protectionIP67 / IP69 / IP69K Connection300 mm fixed cable with M8 x 1, 3-pin connector Material HousingPC (Polycarbonate) Optical facePMMA Mass17 g Cable length0.3 m Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC001821 UNSPSC 12.139121528
