OQT120-R103-2EP-IO-0,3M-V31-L PEPPERL+FUCHS - Part number: 267075-100361
NFS
Non disponibile - Backorder
Da ordinare dal produttore
338,61 USD

Tasse di importazione escluse

Devi essere autenticato

OQT120-R103-2EP-IO-0,3M-V31-L PEPPERL+FUCHS - Part number: 267075-100361

PEPPERL+FUCHS

confronta
OQT120-R103-2EP-IO-0,3M-V31-L PEPPERL+FUCHS - Part number: 267075-100361

Triangulation sensor (SbR) OQT120-R103-2EP-IO-0,3M-V31-L OQT120-R103-2EP-IO-0,3M-V31-L Miniature design with versatile mounting options Multi Pixel Technology (MPT) - flexibility and adaptability Reduction of device variety - several switch points within one sensor DuraBeam Laser Sensors - durable and employable like an LED Reliable detection of all surfaces, independent of color and structure IO-link interface for service and process data Triangulation sensor (SbR) OQT120-R103-2EP-IO-0,3M-V31-L OQT120-R103-2EP-IO-0,3M-V31-L Miniature design with versatile mounting options Multi Pixel Technology (MPT) - flexibility and adaptability Reduction of device variety - several switch points within one sensor DuraBeam Laser Sensors - durable and employable like an LED Reliable detection of all surfaces, independent of color and structure IO-link interface for service and process data

MPNs 267075-100361, PEP267075-100361, OQT120-R103-2EP-IO-0,3M-V31-L
Codice HS 85365000
Peso N/A

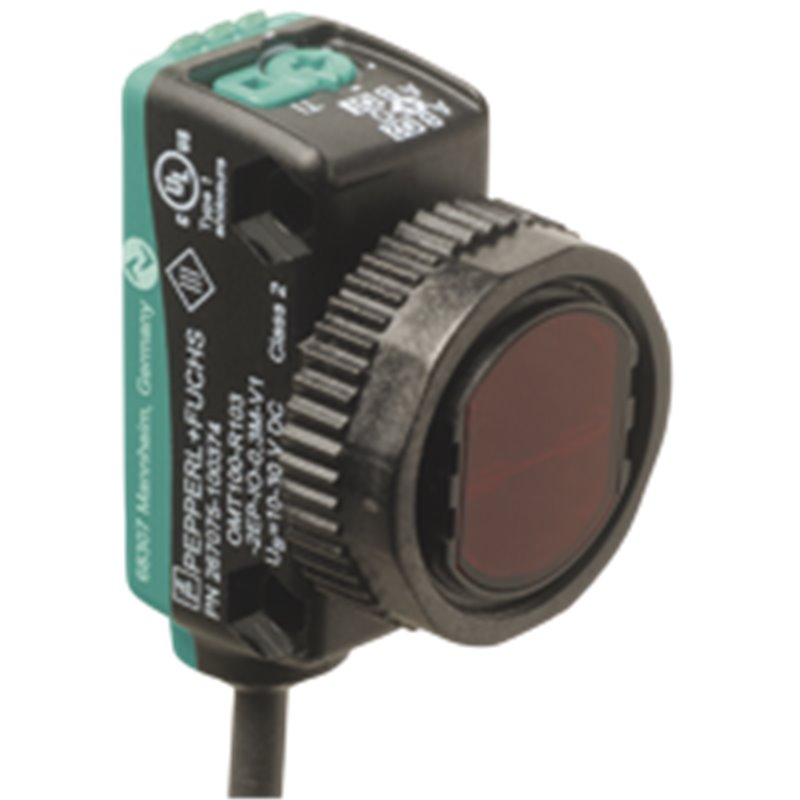

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
338,61 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  OQT120-R103-2EP-IO-0,3M-V31-L Product Description Measuring sensor with multiple switch points, small design, background suppression and more adjustable operating modes, IO-Link interface General specifications Detection range8 ... 120 mm Detection range min.8 ... 20 mm Detection range max.8 ... 120 mm Adjustment range20 ... 120 mm Reference targetstandard white, 100 mm x 100 mm Light sourcelaser diode Light typemodulated visible red light Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length680 nm Beam divergence> 5 mrad ; d63 < 1 mm in the range of 50 mm ... 250 mm Pulse length3 µs Repetition rate3 kHz max. pulse energy15.2 nJ Black/White difference (6 %/90 %)< 3 % at 120 mm Diameter of the light spot2 mm at a distance of 120 mm Opening angle1 ° Ambient light limitEN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd560 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorLED yellow:constantly on - switch output activeconstantly off - switch output inactive Control elementsTeach-In key Control elements5-step rotary switch for operating modes selection Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 20 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) Device profileSmart Sensor Transfer rateCOM2 (38.4 kBit/s) IO-Link Revision1.1 Min. cycle time2.3 ms Process data widthProcess data input 2 BitProcess data output 2 Bit SIO mode supportyes Device ID0x110804 (1116164) Compatible master port typeA Output Switching typeThe default setting is: C/Q - Pin4: NPN normally open, PNP normally closed, IO-Link Q2 - Pin2: NPN normally open, PNP normally closed Signal output2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency217 Hz Response time2.3 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Laser safetyEN 60825-1:2014 Approvals and certificates UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 FDA approvalIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) , fixed cable -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width15 mm Housing height36.5 mm Housing depth26.7 mm Degree of protectionIP67 / IP69 / IP69K Connectionfixed cable 300 mm with M8 x 1 male connector; 4-pin Material HousingPC (Polycarbonate) Optical facePMMA Mass17 g Cable length0.3 m Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC001821 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OQT120-R103-2EP-IO-0,3M-V31-L Product Description Measuring sensor with multiple switch points, small design, background suppression and more adjustable operating modes, IO-Link interface General specifications Detection range8 ... 120 mm Detection range min.8 ... 20 mm Detection range max.8 ... 120 mm Adjustment range20 ... 120 mm Reference targetstandard white, 100 mm x 100 mm Light sourcelaser diode Light typemodulated visible red light Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length680 nm Beam divergence> 5 mrad ; d63 < 1 mm in the range of 50 mm ... 250 mm Pulse length3 µs Repetition rate3 kHz max. pulse energy15.2 nJ Black/White difference (6 %/90 %)< 3 % at 120 mm Diameter of the light spot2 mm at a distance of 120 mm Opening angle1 ° Ambient light limitEN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd560 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorLED yellow:constantly on - switch output activeconstantly off - switch output inactive Control elementsTeach-In key Control elements5-step rotary switch for operating modes selection Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 20 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) Device profileSmart Sensor Transfer rateCOM2 (38.4 kBit/s) IO-Link Revision1.1 Min. cycle time2.3 ms Process data widthProcess data input 2 BitProcess data output 2 Bit SIO mode supportyes Device ID0x110804 (1116164) Compatible master port typeA Output Switching typeThe default setting is: C/Q - Pin4: NPN normally open, PNP normally closed, IO-Link Q2 - Pin2: NPN normally open, PNP normally closed Signal output2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency217 Hz Response time2.3 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Laser safetyEN 60825-1:2014 Approvals and certificates UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 FDA approvalIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) , fixed cable -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width15 mm Housing height36.5 mm Housing depth26.7 mm Degree of protectionIP67 / IP69 / IP69K Connectionfixed cable 300 mm with M8 x 1 male connector; 4-pin Material HousingPC (Polycarbonate) Optical facePMMA Mass17 g Cable length0.3 m Classifications SystemClasscode ECLASS 11.027270903 ECLASS 10.0.127270903 ECLASS 9.027270903 ECLASS 8.027270903 ECLASS 5.127270903 ETIM 8.0EC001821 ETIM 7.0EC001821 ETIM 6.0EC001821 ETIM 5.0EC001821 UNSPSC 12.139121528
