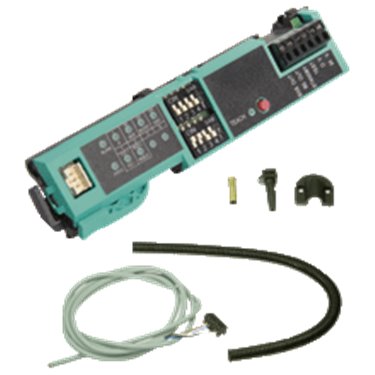

DoorScan Interface Set PEPPERL+FUCHS - Part number: 299670

Datasheet excerpt: Technical data of  DoorScan Interface Set Product Description Replacement/extension sensor module for installation in the DoorScan® and TopScan sensor profile, multifunction interface module with door transition cable General specifications Operating modeBackground evaluation Functional safety related parameters Safety Integrity Level (SIL)SIL 2 Performance level (PL)PL d CategoryCat. 2 MTTFd2716 a Mission Time (TM)20 a Diagnostic Coverage (DC)90 % Indicators/operating means Function indicatorInterface: Red LED: detection, excess gain, fault code Yellow LED: teach statusGreen LED: blank statusGreen LED: DIP switch status Electrical specifications Operating voltage24 V DC +/- 20 % No-load supply current30 mA Input Test inputHigh active at U = 15 V DC to 30 V DC Low active at U = < 2 V DC Control inputStandby active at U = 11 V DC at 30 V DC Output Switching typeHinge edge light on Leading edge light on/dark on, switchable Signal outputNPN , short-circuit protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA Response time≤ 52 ms ≤ 200 ms in boost operating mode Conformity Functional safetyISO 13849-1 ; EN 61508 part1-4 Product standardEN 12978 Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Mechanical specifications Mounting heightmax. 3500 mm Degree of protectionIP54 (iwhen mounted) Connectionplug strip , 6-pin Cable: screw terminal , 6-pin MaterialCable sheathing: polyamide PA 6, black , Wall bracket: ABS CablePUR, gray, 6-wire Sheath diameter4.8 mm Bending radiusmin. 48 mm Length5000 mm Mass140 g General information Scope of deliverySensor module, interface , Wall bracket , Screw kit , cord grip , cable , Cable sheathing , Hollow rivet Suitable series SeriesDoorScan® Classifications SystemClasscode ECLASS 11.027270913 ECLASS 10.0.127270913 ECLASS 9.027270913 ECLASS 8.027270913 ECLASS 5.127270903 ETIM 8.0EC002550 ETIM 7.0EC002550 ETIM 6.0EC002550 ETIM 5.0EC001821 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  DoorScan Interface Set Product Description Replacement/extension sensor module for installation in the DoorScan® and TopScan sensor profile, multifunction interface module with door transition cable General specifications Operating modeBackground evaluation Functional safety related parameters Safety Integrity Level (SIL)SIL 2 Performance level (PL)PL d CategoryCat. 2 MTTFd2716 a Mission Time (TM)20 a Diagnostic Coverage (DC)90 % Indicators/operating means Function indicatorInterface: Red LED: detection, excess gain, fault code Yellow LED: teach statusGreen LED: blank statusGreen LED: DIP switch status Electrical specifications Operating voltage24 V DC +/- 20 % No-load supply current30 mA Input Test inputHigh active at U = 15 V DC to 30 V DC Low active at U = < 2 V DC Control inputStandby active at U = 11 V DC at 30 V DC Output Switching typeHinge edge light on Leading edge light on/dark on, switchable Signal outputNPN , short-circuit protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA Response time≤ 52 ms ≤ 200 ms in boost operating mode Conformity Functional safetyISO 13849-1 ; EN 61508 part1-4 Product standardEN 12978 Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Mechanical specifications Mounting heightmax. 3500 mm Degree of protectionIP54 (iwhen mounted) Connectionplug strip , 6-pin Cable: screw terminal , 6-pin MaterialCable sheathing: polyamide PA 6, black , Wall bracket: ABS CablePUR, gray, 6-wire Sheath diameter4.8 mm Bending radiusmin. 48 mm Length5000 mm Mass140 g General information Scope of deliverySensor module, interface , Wall bracket , Screw kit , cord grip , cable , Cable sheathing , Hollow rivet Suitable series SeriesDoorScan® Classifications SystemClasscode ECLASS 11.027270913 ECLASS 10.0.127270913 ECLASS 9.027270913 ECLASS 8.027270913 ECLASS 5.127270903 ETIM 8.0EC002550 ETIM 7.0EC002550 ETIM 6.0EC002550 ETIM 5.0EC001821 UNSPSC 12.139121528
