LTK2-8-HS-2000/31/115 PEPPERL+FUCHS - Part number: 419311

PEPPERL+FUCHS

confronta

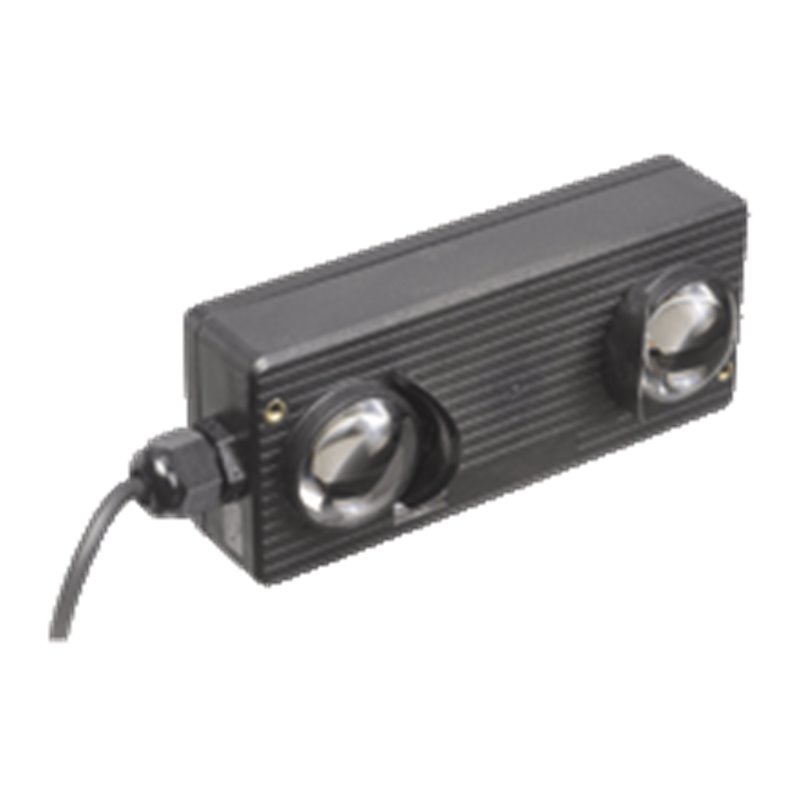

Active infrared scanner LTK2-8-HS-2000/31/115 LTK2-8-HS-2000/31/115 Mode selectable: background suppression or evaluation Mechanical adjustable detection range Adjustable timer functions Version for universal voltages Relay output

MPNs 419311, PEP419311, LTK2-8-HS-2000/31/115

Codice HS 85371000

Peso 0.32 kg

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Venduto da PLC-CITY® e spedito dall'Italia

Pagamenti sicuri

e molti altri

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

12 Mesi garanzia

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

Reso disponibile entro 30 giorni

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of LTK2-8-HS-2000/31/115 Product Description Precision sensor for long detection ranges up to 2 m General specifications Detection range min.0 ... 500 mm by background evaluation,350 ... 500 mm by background suppression Detection range max.0 ... 2000 mm by background evaluation, 350 ... 2500 mm by background suppression Light sourceIRED Light typemodulated infrared light Operating modeswitching between background suppression/evaluation Diameter of the light spot50 mm at 2000 mm sensor range Functional safety related parameters MTTFd730 a Mission Time (TM)20 a Diagnostic Coverage (DC)60 % Indicators/operating means Function indicatorLED green: power onLED yellow: object detection Control elementsSensing range setting, programming switch for time functions, time setting Electrical specifications Operating voltage11 ... 48 V DC / 12 ... 24 V AC No-load supply current100 mA Output Switching typelight/dark on selectable programmable , Factory setting: light on Signal outputRelay, 1 alternator Switching voltage240 V AC/DC Switching current2 A Response time50 ms De-energized delay150 ms Timer functionProgrammable on/off delay, adjustable 0.1 ... 10 s Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Emitted interferenceEN 61000-6-3 StandardsEN 61000-6-2 without EN 61000-4-5, EN 61000-4-11 Approvals and certificates CE conformityyes Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Mechanical specifications Degree of protectionIP65 Connection5 m fixed cable Material HousingMakrolon GV30 Optical facehardened plastic lens Mass320 g Classifications SystemClasscode ECLASS 11.027270913 ECLASS 10.0.127270913 ECLASS 9.027270913 ECLASS 8.027270913 ECLASS 5.127270903 ETIM 8.0EC002550 ETIM 7.0EC002550 ETIM 6.0EC002550 ETIM 5.0EC001821 UNSPSC 12.139121528 Datasheet excerpt: Technical data of LTK2-8-HS-2000/31/115 Product Description Precision sensor for long detection ranges up to 2 m General specifications Detection range min.0 ... 500 mm by background evaluation,350 ... 500 mm by background suppression Detection range max.0 ... 2000 mm by background evaluation, 350 ... 2500 mm by background suppression Light sourceIRED Light typemodulated infrared light Operating modeswitching between background suppression/evaluation Diameter of the light spot50 mm at 2000 mm sensor range Functional safety related parameters MTTFd730 a Mission Time (TM)20 a Diagnostic Coverage (DC)60 % Indicators/operating means Function indicatorLED green: power onLED yellow: object detection Control elementsSensing range setting, programming switch for time functions, time setting Electrical specifications Operating voltage11 ... 48 V DC / 12 ... 24 V AC No-load supply current100 mA Output Switching typelight/dark on selectable programmable , Factory setting: light on Signal outputRelay, 1 alternator Switching voltage240 V AC/DC Switching current2 A Response time50 ms De-energized delay150 ms Timer functionProgrammable on/off delay, adjustable 0.1 ... 10 s Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Emitted interferenceEN 61000-6-3 StandardsEN 61000-6-2 without EN 61000-4-5, EN 61000-4-11 Approvals and certificates CE conformityyes Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Mechanical specifications Degree of protectionIP65 Connection5 m fixed cable Material HousingMakrolon GV30 Optical facehardened plastic lens Mass320 g Classifications SystemClasscode ECLASS 11.027270913 ECLASS 10.0.127270913 ECLASS 9.027270913 ECLASS 8.027270913 ECLASS 5.127270903 ETIM 8.0EC002550 ETIM 7.0EC002550 ETIM 6.0EC002550 ETIM 5.0EC001821 UNSPSC 12.139121528
