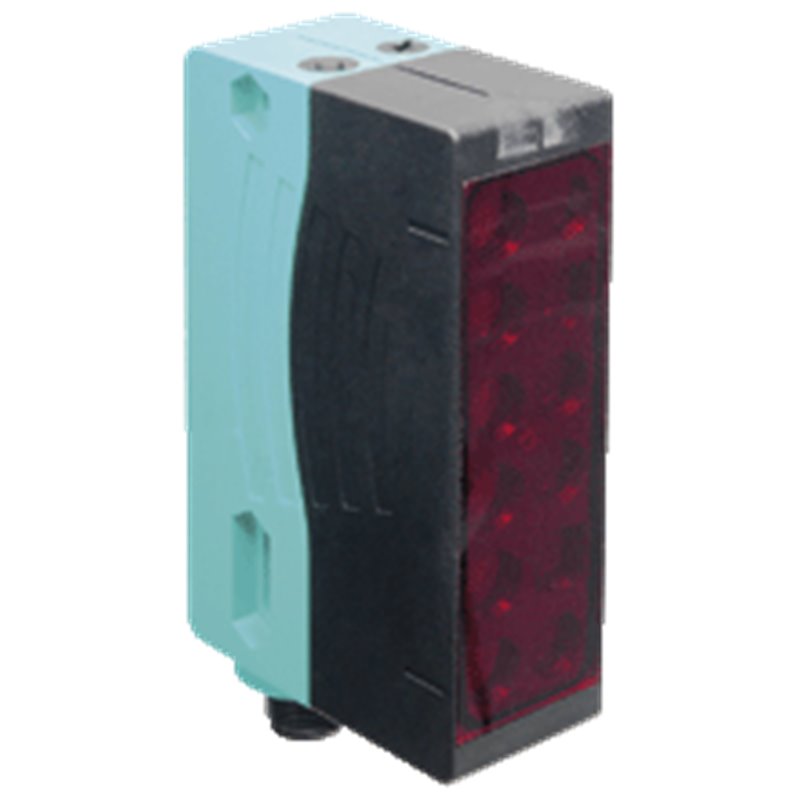

RLG28-55-4921/40a/73c/136 PEPPERL+FUCHS - Part number: 227596

Datasheet excerpt: Technical data of  RLG28-55-4921/40a/73c/136 Product Description Retroreflective area sensor with 6 beams in a widely used standard photoelectric housing, red light, 4 m detection range, light/dark on switchable, push-pull output, M12 plug General specifications Effective detection range0 ... 4 m Reflector distanceReflector A80: 0.4 ... 4 m , H85-2 reflector: 0.2 ... 4 m , Foil reflector OFR-100/100: 0.4 ... 3 m Threshold detection range5.6 m Sensing rangetypical 60 mm , Object has to cover the refelector completely in one dimension Reference targetReflector A80 H85-2 reflector Foil reflector OFR-100/100 Light sourceLED Light typemodulated visible red light , 625 nm Polarization filteryes Number of beams6 Diameter of the light spot220 mm at detection range 4 m Opening angle+/- 2.5 ° Ambient light limit5000 Lux Resolution12 mmto 4 m Detection/capture range: 60 mm (no dead band)5 mmto 1 m Detection/capture range: 55 mm (dead band: 150 mm in front of the sensor; 50 mm in front of the reflector)5 mmto 1.5 m Detection/capture range: 40 mm (dead band: 150 mm in front of the sensor; 50 mm in front of the reflector) Functional safety related parameters MTTFd310 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on Undervoltage indicator: Green LED, pulsing (0.8 Hz) short-circuit : LED green flashing (4 Hz) Function indicator2 LEDs yellow, light up when light beam is free, flash when falling short of the stability control, off when light beam is interrupted Teach-In : LED yellow/green; equiphase flashing; 2,5 Hz Changeover signal tracking: LED yellow, 1 Hz flashing / 2x flashing Control elementsrotary switch for light/dark , Teach-In key Electrical specifications Operating voltage12 ... 30 V DC Ripplemax. 10 % No-load supply currentmax. 50 mA Output Switching typelight/dark on, switchable Signal output2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2.5 V DC Switching frequency230 Hz Response time1 ms Conformity Product standardEN 60947-5-2 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-10 ... 40 °C (14 ... 104 °F) -30 ... 60 °C (-22 ... 140 °F) at active signal tracking Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width25.8 mm Housing height88 mm Housing depth54.3 mm Degree of protectionIP67 Connection4-pin, M12 x 1 connector Material HousingPlastic ABS Optical facePlastic pane Mass100 g Classifications SystemClasscode ECLASS 11.027270910 ECLASS 10.0.127270910 ECLASS 9.027270910 ECLASS 8.027270910 ECLASS 5.127270910 ETIM 8.0EC002549 ETIM 7.0EC002549 ETIM 6.0EC002549 ETIM 5.0EC002549 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  RLG28-55-4921/40a/73c/136 Product Description Retroreflective area sensor with 6 beams in a widely used standard photoelectric housing, red light, 4 m detection range, light/dark on switchable, push-pull output, M12 plug General specifications Effective detection range0 ... 4 m Reflector distanceReflector A80: 0.4 ... 4 m , H85-2 reflector: 0.2 ... 4 m , Foil reflector OFR-100/100: 0.4 ... 3 m Threshold detection range5.6 m Sensing rangetypical 60 mm , Object has to cover the refelector completely in one dimension Reference targetReflector A80 H85-2 reflector Foil reflector OFR-100/100 Light sourceLED Light typemodulated visible red light , 625 nm Polarization filteryes Number of beams6 Diameter of the light spot220 mm at detection range 4 m Opening angle+/- 2.5 ° Ambient light limit5000 Lux Resolution12 mmto 4 m Detection/capture range: 60 mm (no dead band)5 mmto 1 m Detection/capture range: 55 mm (dead band: 150 mm in front of the sensor; 50 mm in front of the reflector)5 mmto 1.5 m Detection/capture range: 40 mm (dead band: 150 mm in front of the sensor; 50 mm in front of the reflector) Functional safety related parameters MTTFd310 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on Undervoltage indicator: Green LED, pulsing (0.8 Hz) short-circuit : LED green flashing (4 Hz) Function indicator2 LEDs yellow, light up when light beam is free, flash when falling short of the stability control, off when light beam is interrupted Teach-In : LED yellow/green; equiphase flashing; 2,5 Hz Changeover signal tracking: LED yellow, 1 Hz flashing / 2x flashing Control elementsrotary switch for light/dark , Teach-In key Electrical specifications Operating voltage12 ... 30 V DC Ripplemax. 10 % No-load supply currentmax. 50 mA Output Switching typelight/dark on, switchable Signal output2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2.5 V DC Switching frequency230 Hz Response time1 ms Conformity Product standardEN 60947-5-2 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-10 ... 40 °C (14 ... 104 °F) -30 ... 60 °C (-22 ... 140 °F) at active signal tracking Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width25.8 mm Housing height88 mm Housing depth54.3 mm Degree of protectionIP67 Connection4-pin, M12 x 1 connector Material HousingPlastic ABS Optical facePlastic pane Mass100 g Classifications SystemClasscode ECLASS 11.027270910 ECLASS 10.0.127270910 ECLASS 9.027270910 ECLASS 8.027270910 ECLASS 5.127270910 ETIM 8.0EC002549 ETIM 7.0EC002549 ETIM 6.0EC002549 ETIM 5.0EC002549 UNSPSC 12.139121528
